Inspection

Fifth Speed Synchronizer

INSPECTION

SYNCHRONIZER SLEEVE AND HUB

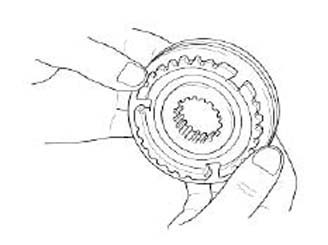

1. Install the synchronizer sleeve on the hub and check that they slide smoothly.
2. Check that the sleeve is free from damage at its inside front and rear ends.
3. Check for wear of the hub front end (surface in contact with the fifth speed gear).

CAUTION
Replace the synchronizer hub and sleeve as a set.





SYNCHRONIZER KEY AND SPRING

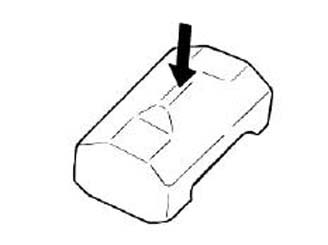

1. Check for wear of the synchronizer key center protrusion.
2. Check the spring for weakness, deformation and breakage.
