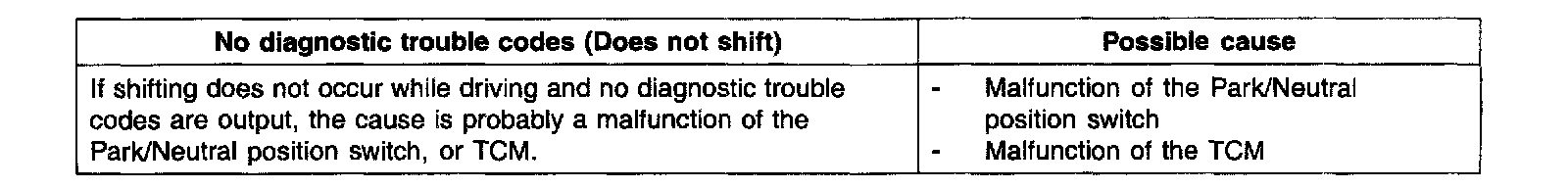

Inspection Procedure 13 -No Diag. Trouble Codes-Does Not Shift

INSPECTION PROCEDURES 13





Inspection Procedures

Part 1:




Part 2:




Part 3:




Part 4:




Part 5:
