Inspection Procedure 1- Communication with the Scan Tool

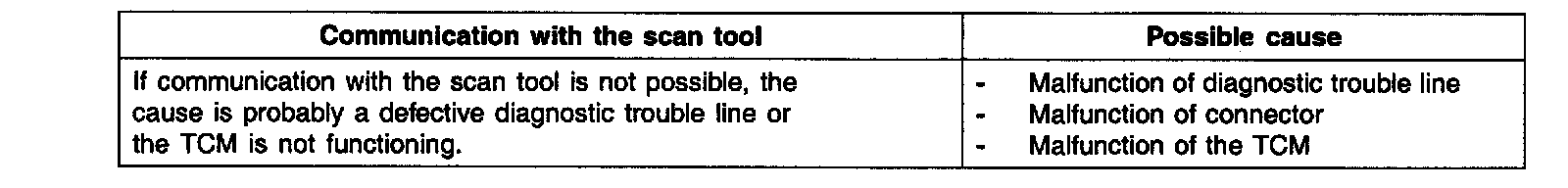

INSPECTION PROCEDURE 1





Inspection Procedures

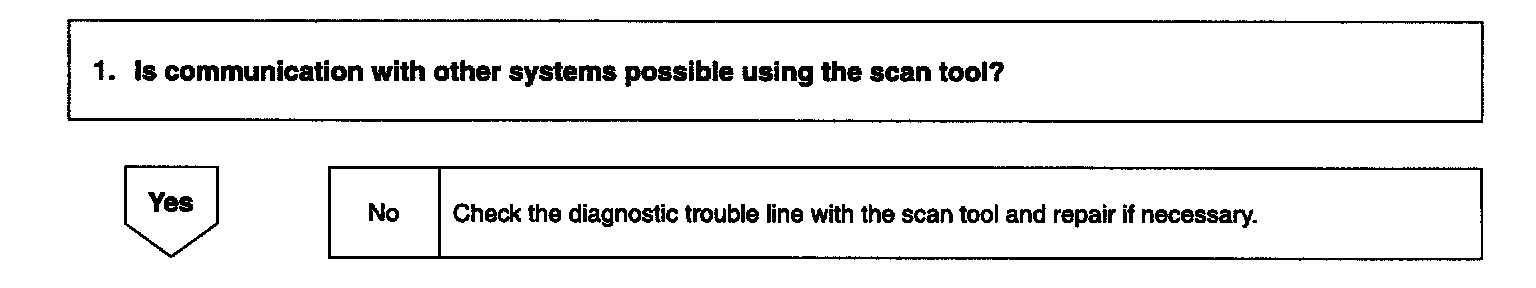

Part 1:

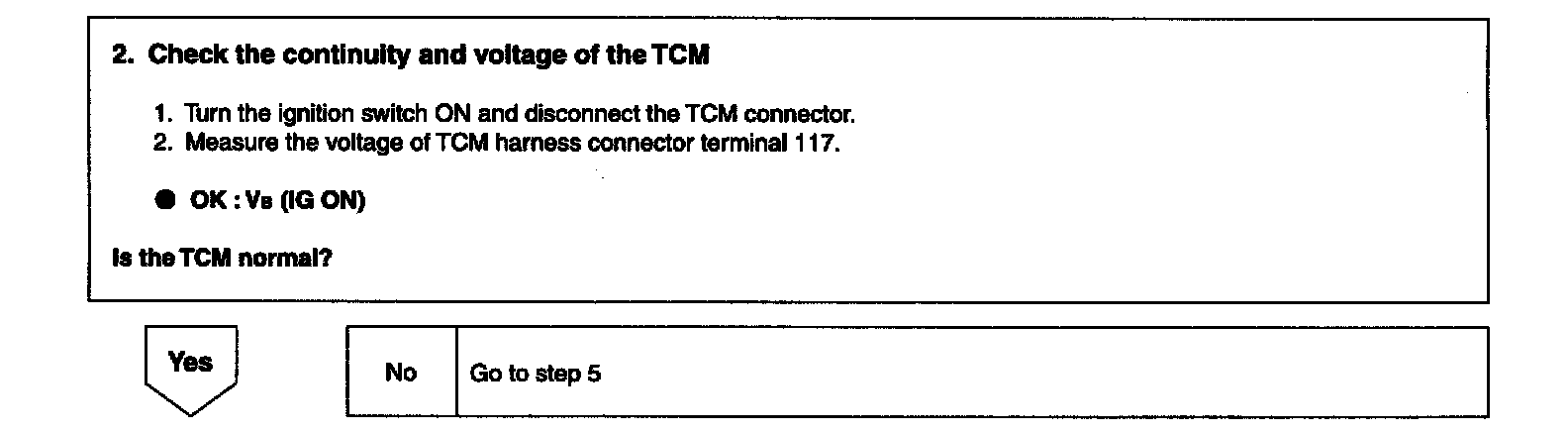

Part 2:

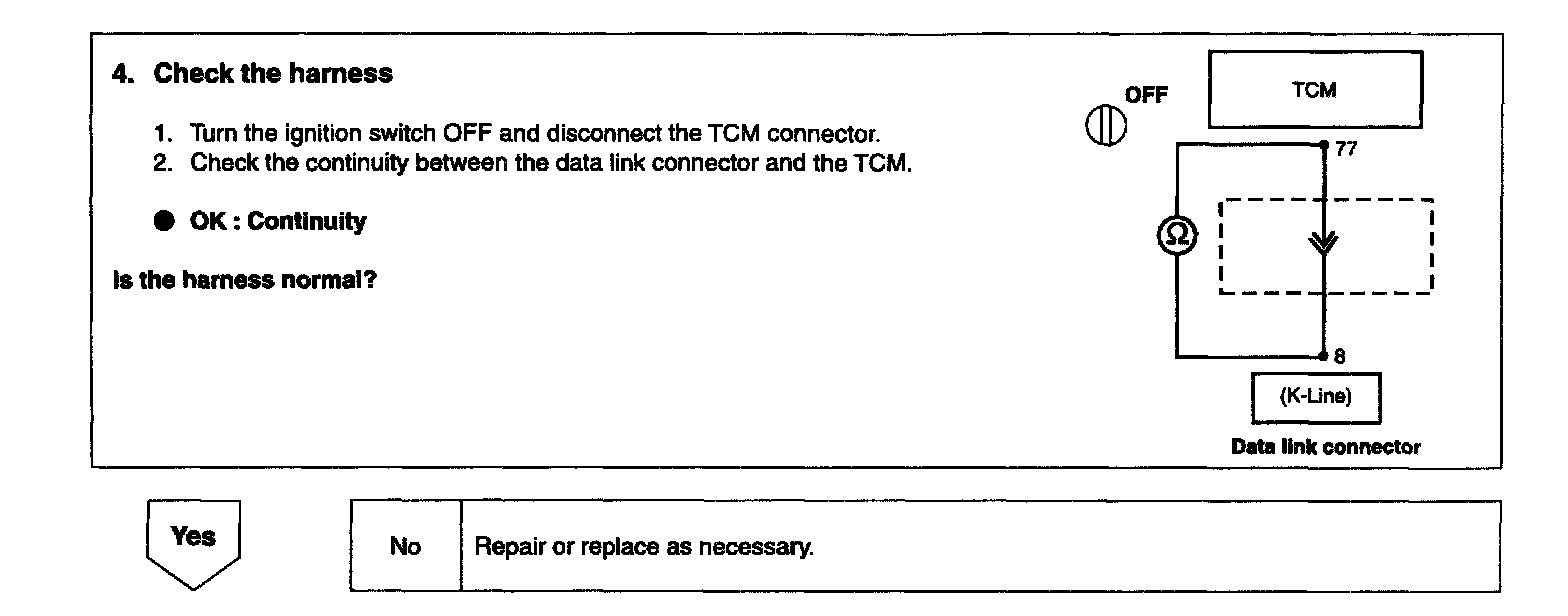

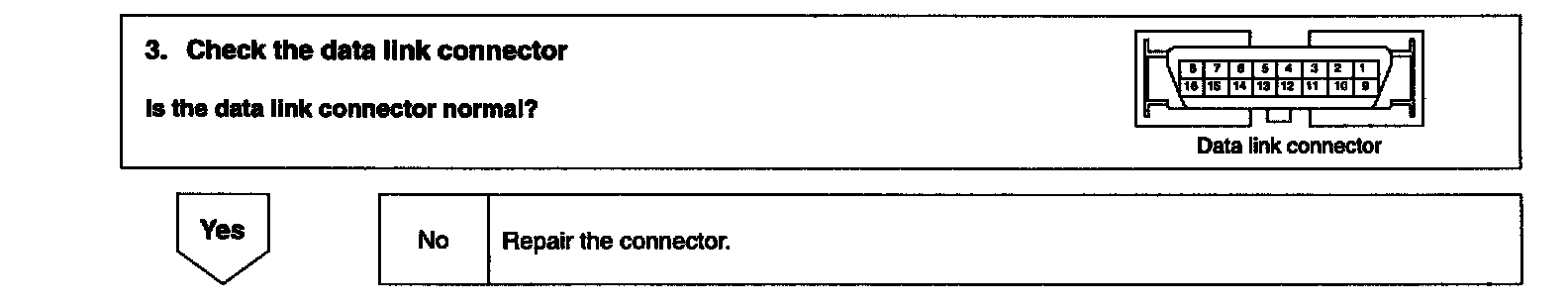

Part 3:




Part 4:

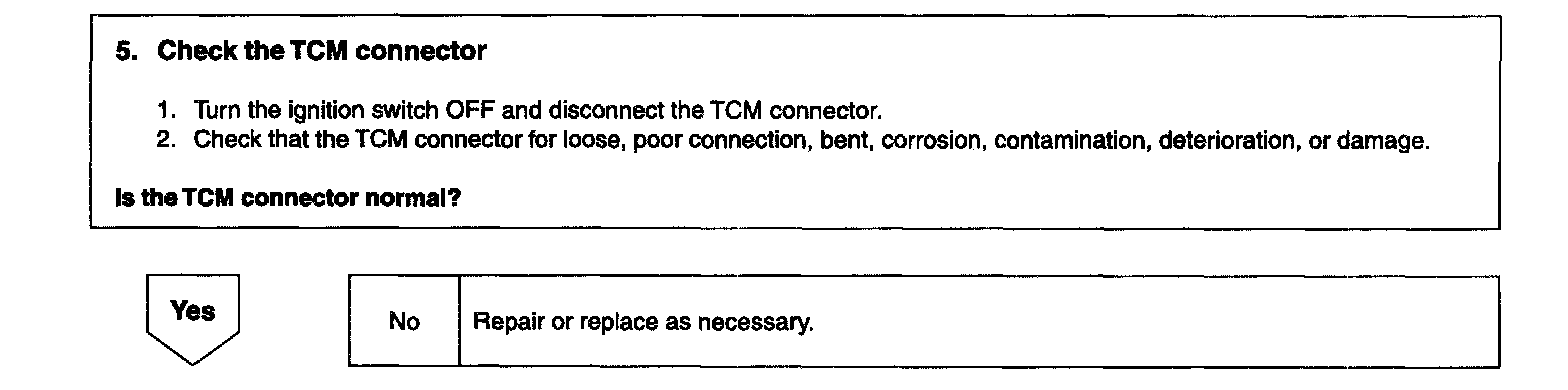

Part 5:

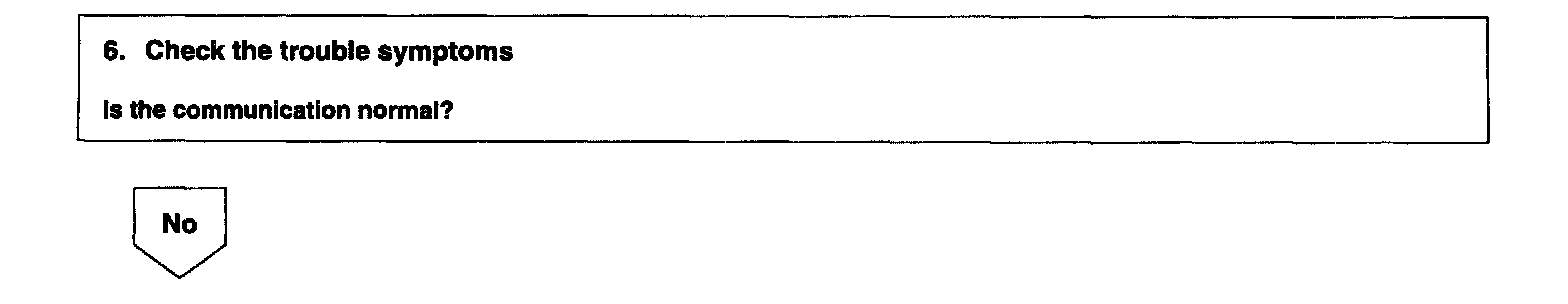

Part 6:

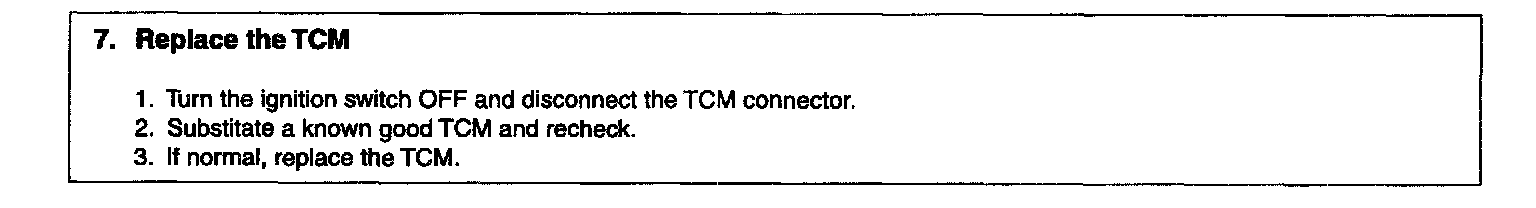

Part 7:
