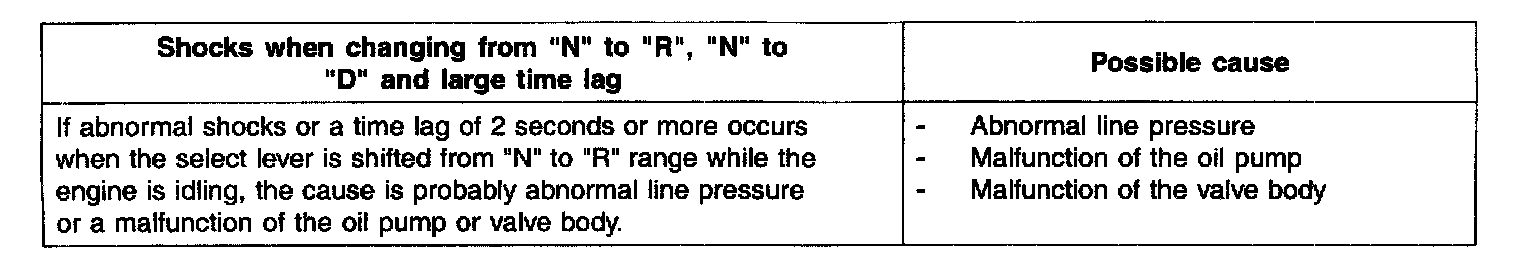

Inspection Procedure 9 - Shock Changing From N-R/N-D Time Lag

INSPECTION PROCEDURES 9





Inspection Procedures

Part 1:




Part 2:




Part 3:




Part 4:
