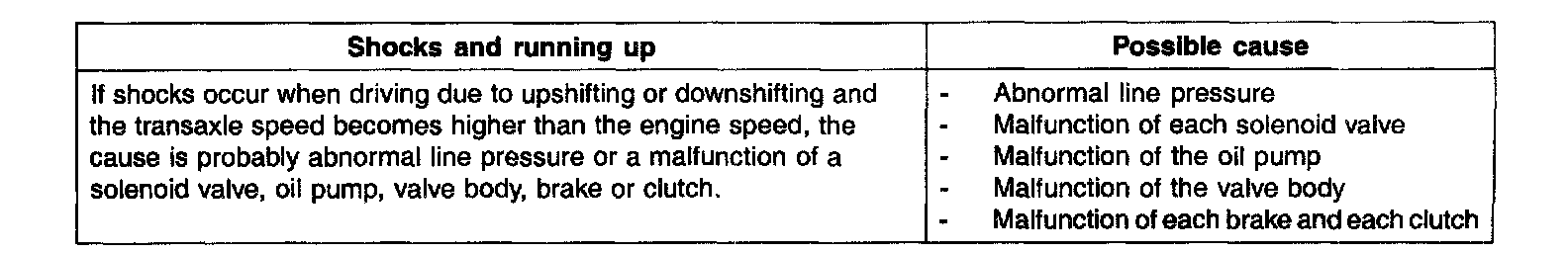

Inspection Procedure 10 - Shocks and Running Up

INSPECTION PROCEDURE 10





Inspection Procedures

Part 1:




Part 2:




Part 3:




Part 4:




Part 5:
