Oil Temperature Sensor Check

OIL TEMPERATURE SENSOR CHECK
1. Remove the oil temperature sensor.

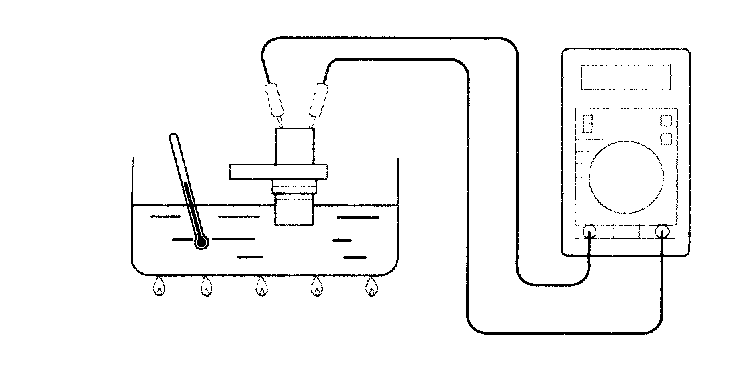

2. Measure the resistance between terminals No.1 and No.2 of the oil temperature sensor connector.

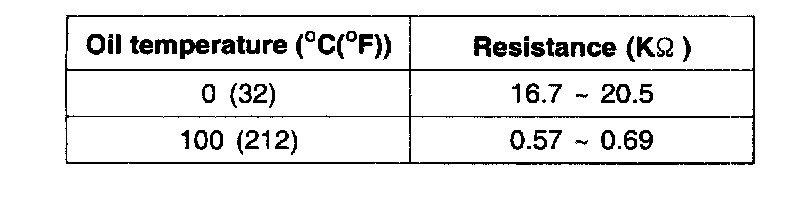

STANDARD VALUE:
