Transfer Drive Gear

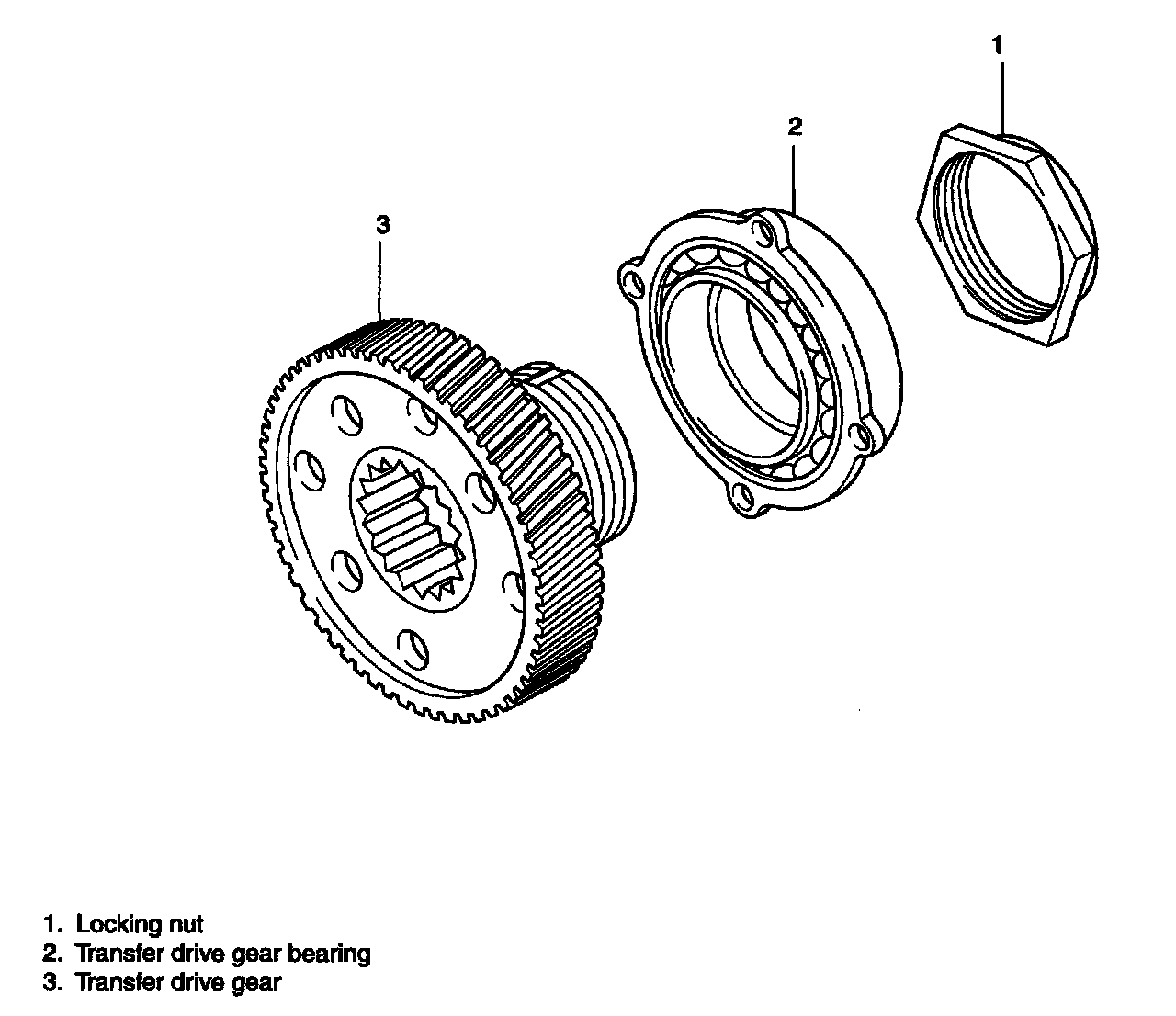

Components

DISASSEMBLY

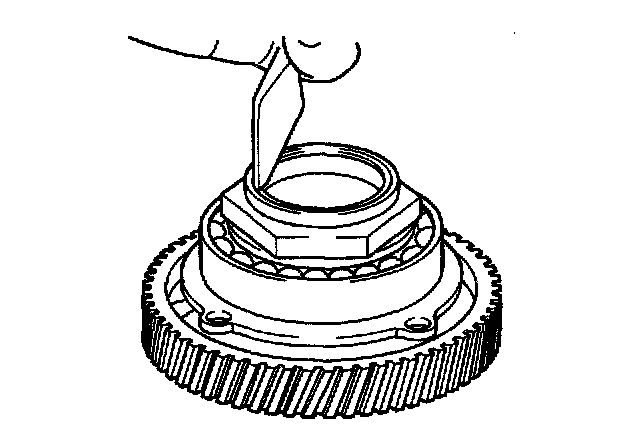

1. Loosen the locking nut caulking.

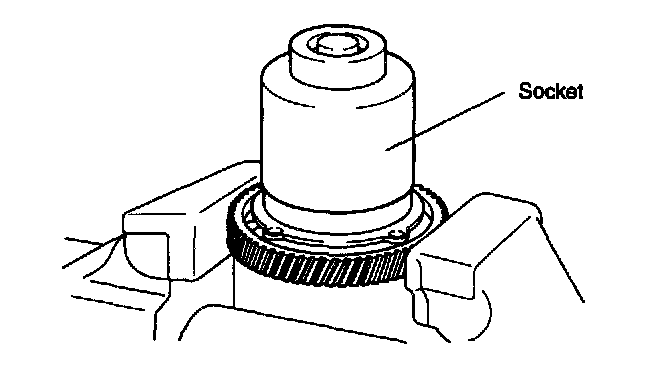

2. Remove the lock by using socket.

REASSEMBLY





1. Apply ATF to the new locking nut and tighten to the specified torque. And loosen 1 turn and tighten to the specified torque again.

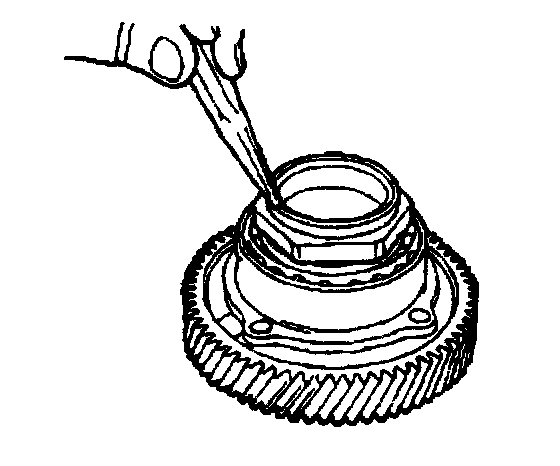

2. Caulk the locking nut by using punch.
