Brake Reaction Plate End Play Adjustment
BRAKE REACTION PLATE END PLAY ADJUSTMENTReplace the pressure plate of the low and reverse brake with the special tool, and then install the brake disc, brake plate and snap ring as shown in the figure.

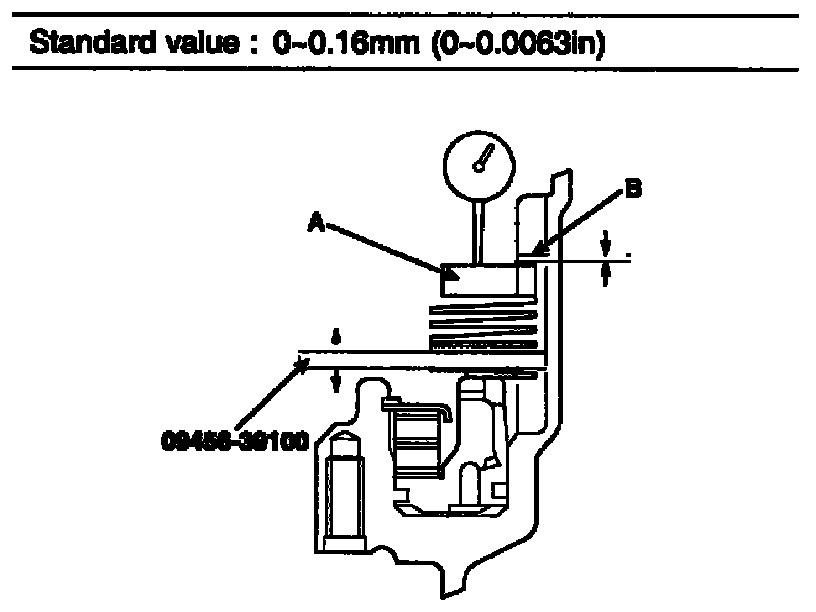

Install the reaction plate (A) and the used snap ring(B). Move the special tool (09456 - 39100) to measure the end play, and then replace the snap ring to adjust the end play to standard value.
Standard value: 0 - 0.16mm (0 - 0.0063 inch)
