Removal

Rear Stabilizer Bar

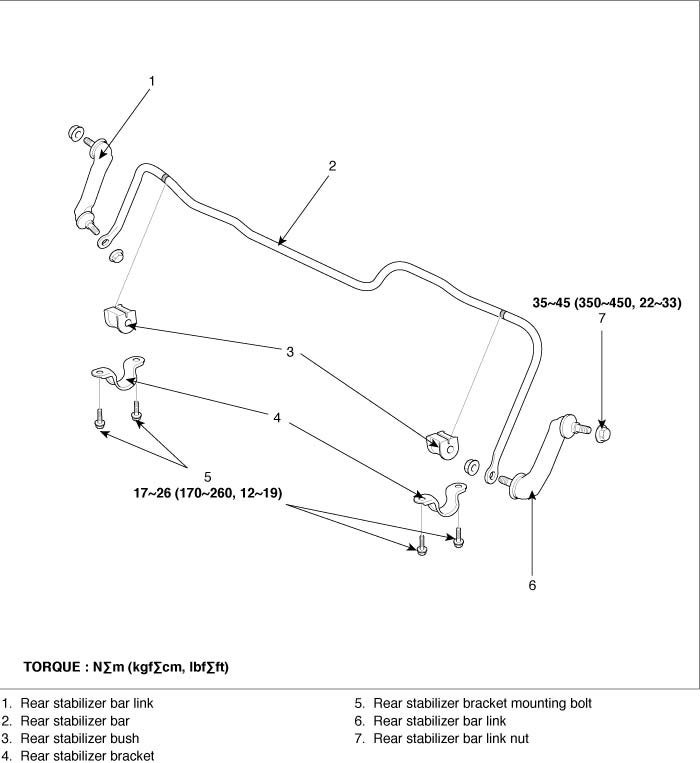

Components:

REMOVAL

1. Remove the stabilizer bar link (A) from the rear strut assembly (B).

NOTE: If the ball joint (C) and nuts (D) turn altogether, use the pentagonal wrench to hold the stud (E).





2. Remove the rear stabilizer bar mounting brackets.
3. Remove the stabilizer bar link on the opposite side in the same way.
4. Remove the mounting nuts (B,C) of the exhaust pipe assembly (A).





5. Remove the stabilizer bar assembly.
