Removal

Front Stabilizer Bar

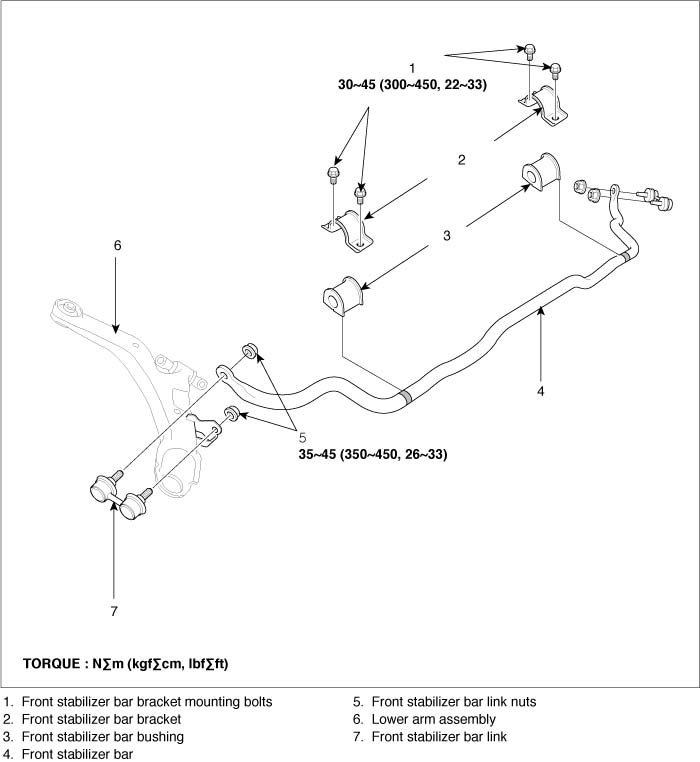

Components:





REMOVAL

1. Remove the front wheel and tire.
2. Remove the stabilizer bar link assembly (A).





A. Remove the bolts (B) and stabilizer bar link (A).

NOTE: If the stabilizer bar link ball joint (C) and nuts (B) turn altogether, use the pentagonal wrench to hold the stud.





B. Remove the stabilizer bar link on the opposite side in the same way.

CAUTION: Be careful not to damage the ball joint boot.

3. Remove the stabilizer bracket (A) and bushing (B)
A. After loosening the bolts (C-in case of LH, separate pad by loosening the fixing bolts of the stabilizer bar bracket), then remove the bracket (A) and bushing (B)





B. Remove the stabilizer bar link on the opposite side in the same way.
C. Remove the stabilizer out of the vehicle's right side.
