Removal

Power Steering Oil Pump

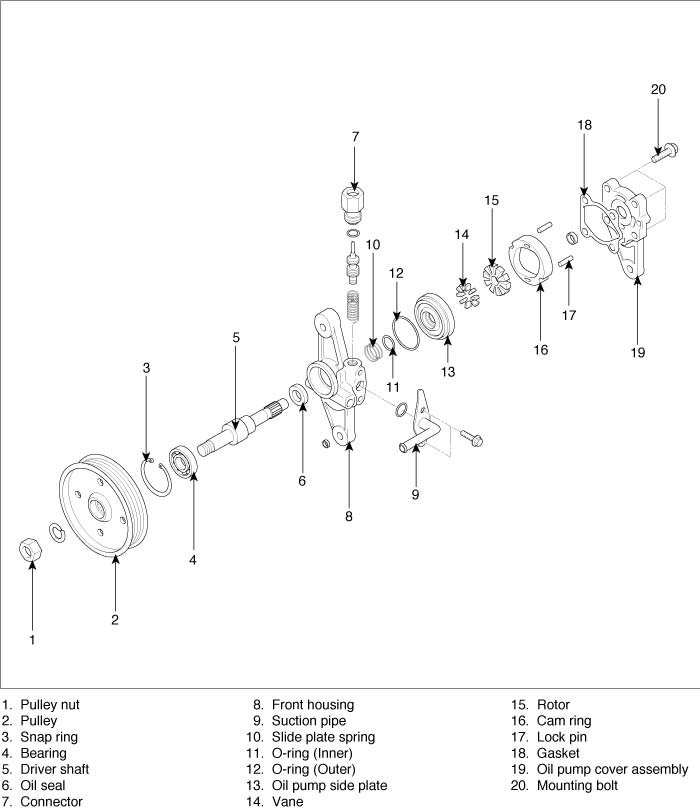

Components:

REMOVAL

1. Remove the pressure hose (A) from the oil pump (B).
2. Disconnect the suction hose (C) from the suction connector (D) and drain the fluid into a container.





3. Loosen the oil pump mounting bolts to remove the V-belt.
4. Loosen the tension adjusting bolt (A).





5. Remove the power steering drive belt (A) from the power steering oil pump pulley.





6. Remove the power steering oil pump mounting bolt and the tension adjusting bolt.
7. Remove the power steering oil pump assembly.

NOTE: Be careful not to drip fluid from the power steering oil pump.
