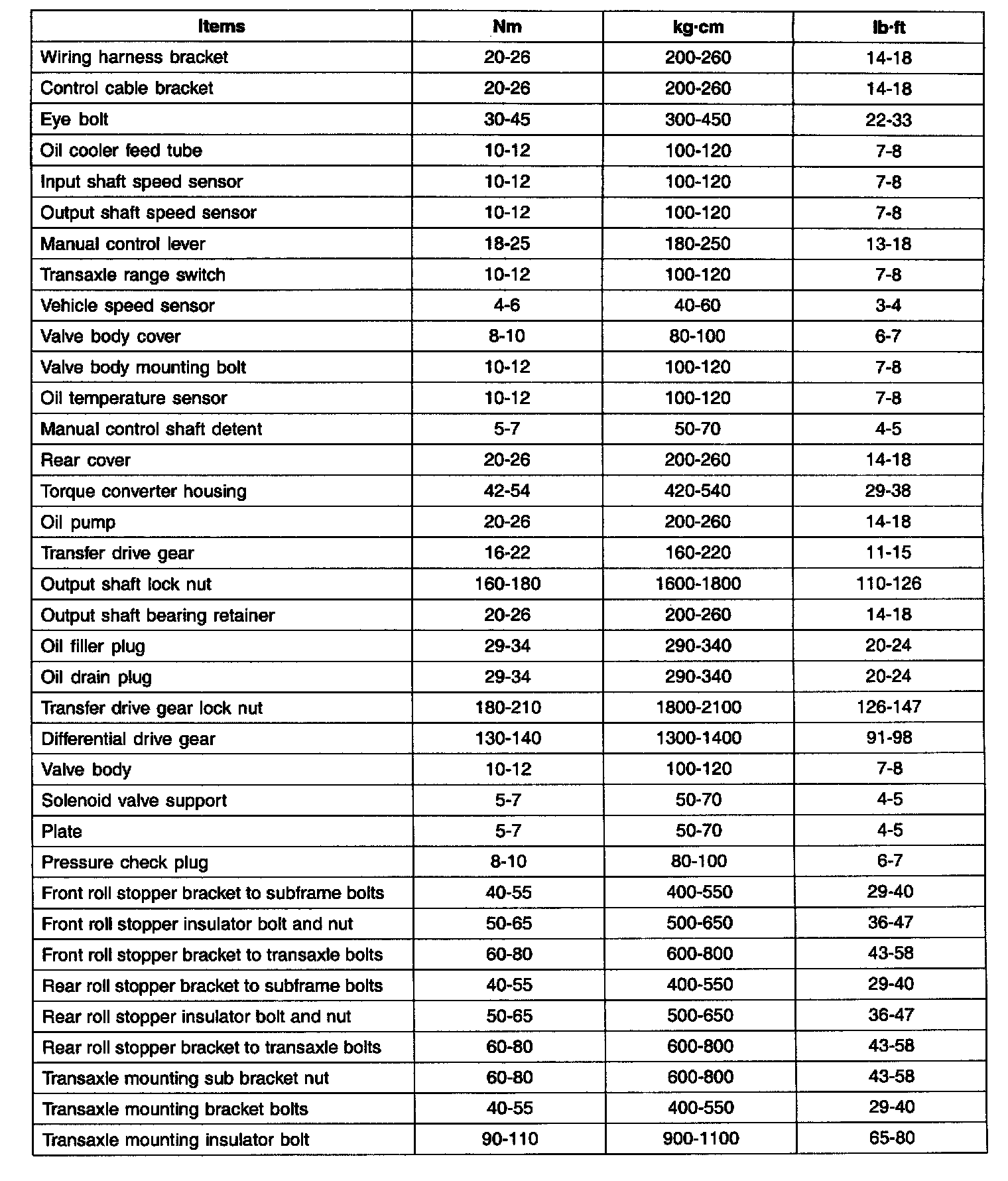

Tightening Torque

Tightening Torque





WARNING: Always follow torque tightening levels. Failure to follow such levels can result In parts breaking if over - tightened or loosening if under - tightened. In either case, serious personal injury or death could result to the vehicle occupants.
