Wiper Switch: Testing and Inspection

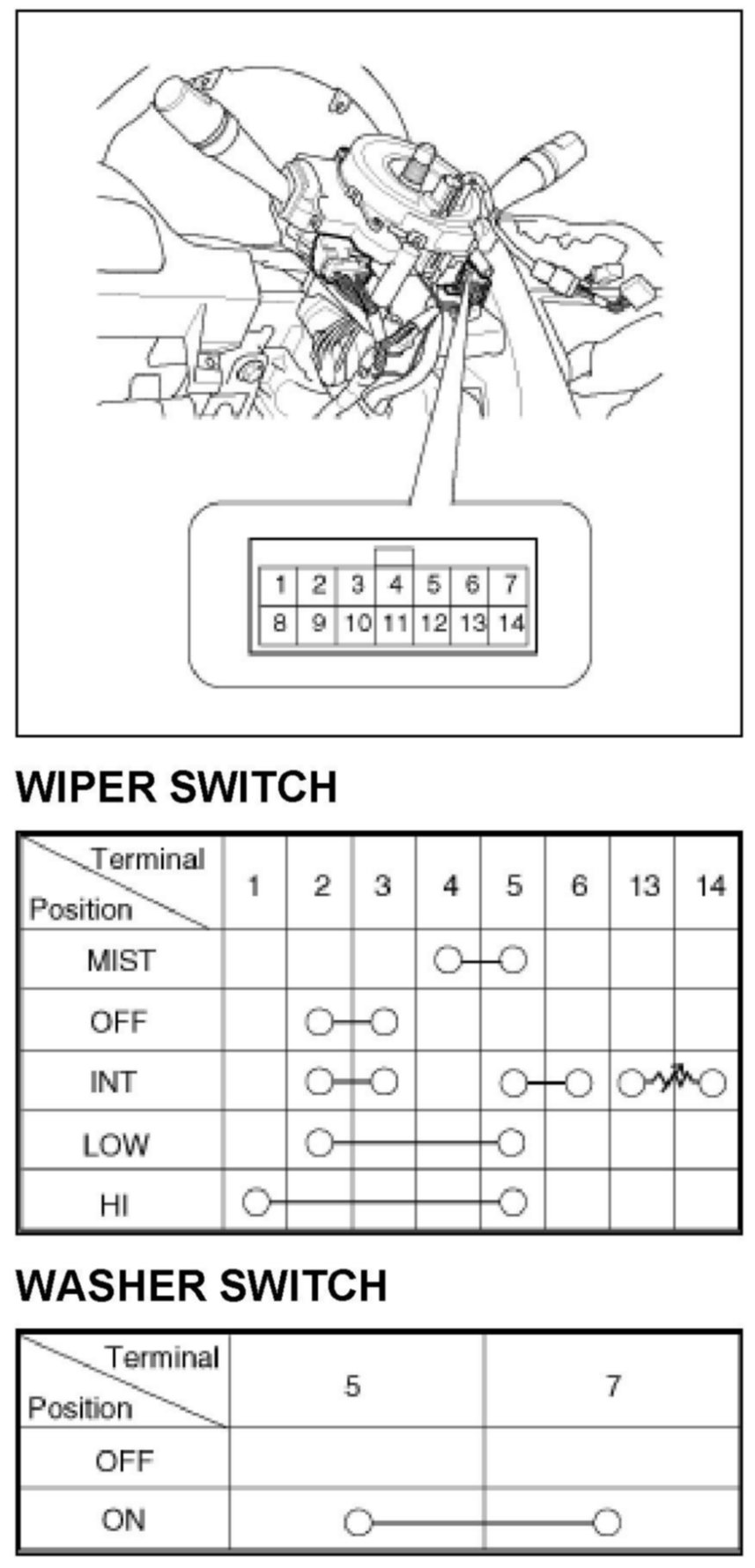

Windshield Wiper/Washer Switch




INSPECTION
Check for continuity between the terminals while operating the wiper and washer switch.
