Hazard Warning Switch: Testing and Inspection

INSPECTION

HAZARD LAMP SWITCH
1. Disconnect the negative (-) battery terminal.

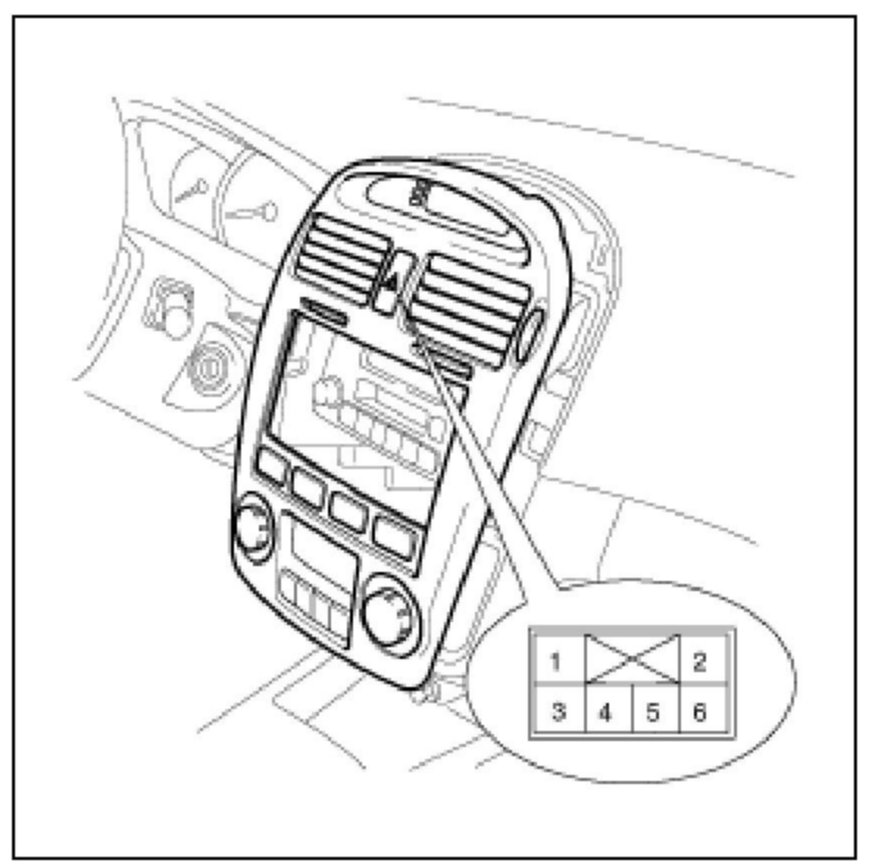

2. Remove the hazard lamp switch from the center facia panel and disconnect the 6P connector.

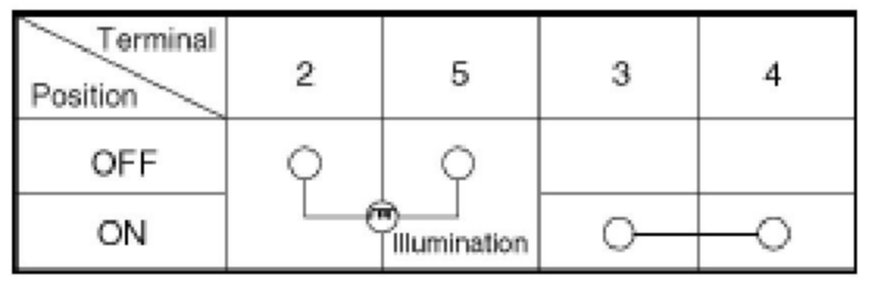

3. Operate the switch and check for continuity between terminals with an ohmmeter.
