Cruise Control Switch: Testing and Inspection

CRUISE CONTROL MAIN SWITCH

INSPECTION
1. Disconnect the cruise control switch connector.

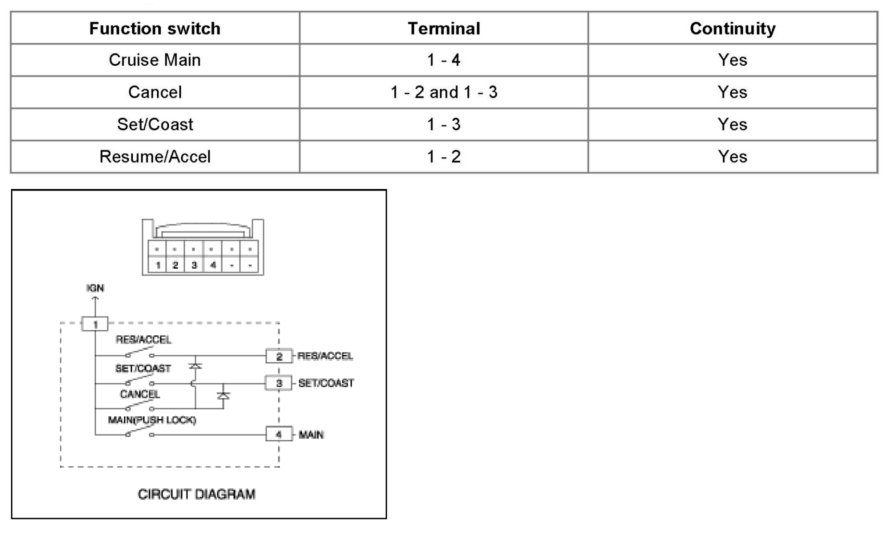

2. Measure continuity between terminals on the control switch when each function switch is ON.
3. If there is no continuity, replace the auto cruise switch.
