Power Mirror Switch: Service and Repair
Power Outside Mirror Switch
REMOVAL
1.
Remove the front door trim panel.
2.

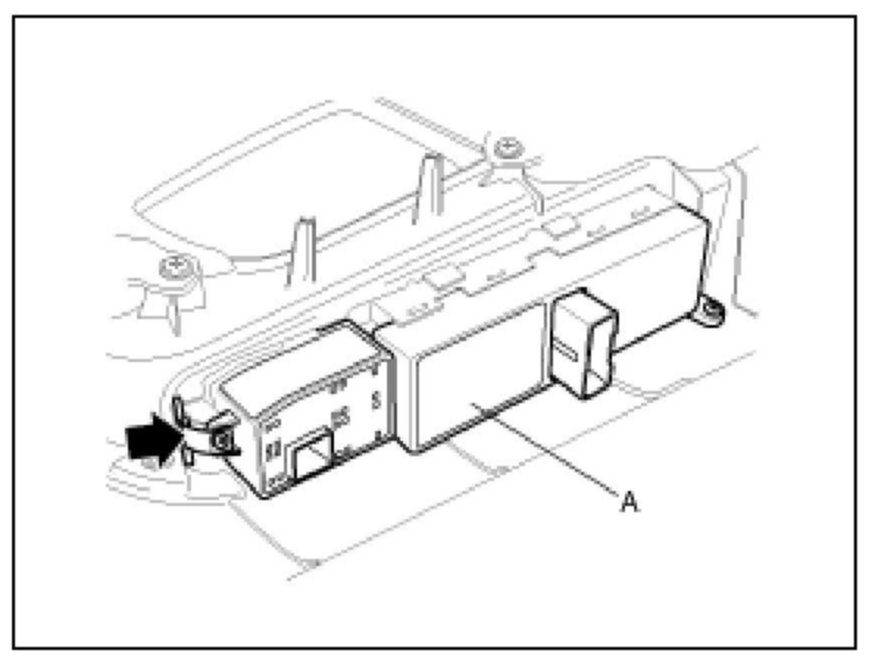

Remove the power window main switch (A) by pushing the mounting clip of the power window main switch.
