Home >> Kia >> 2005 >> Spectra L4-2.0L >> Repair and Diagnosis >> Powertrain Management >> Tune-up and Engine Performance Checks >> Fuel Pressure >> Testing and Inspection

Fuel Pressure: Testing and Inspection

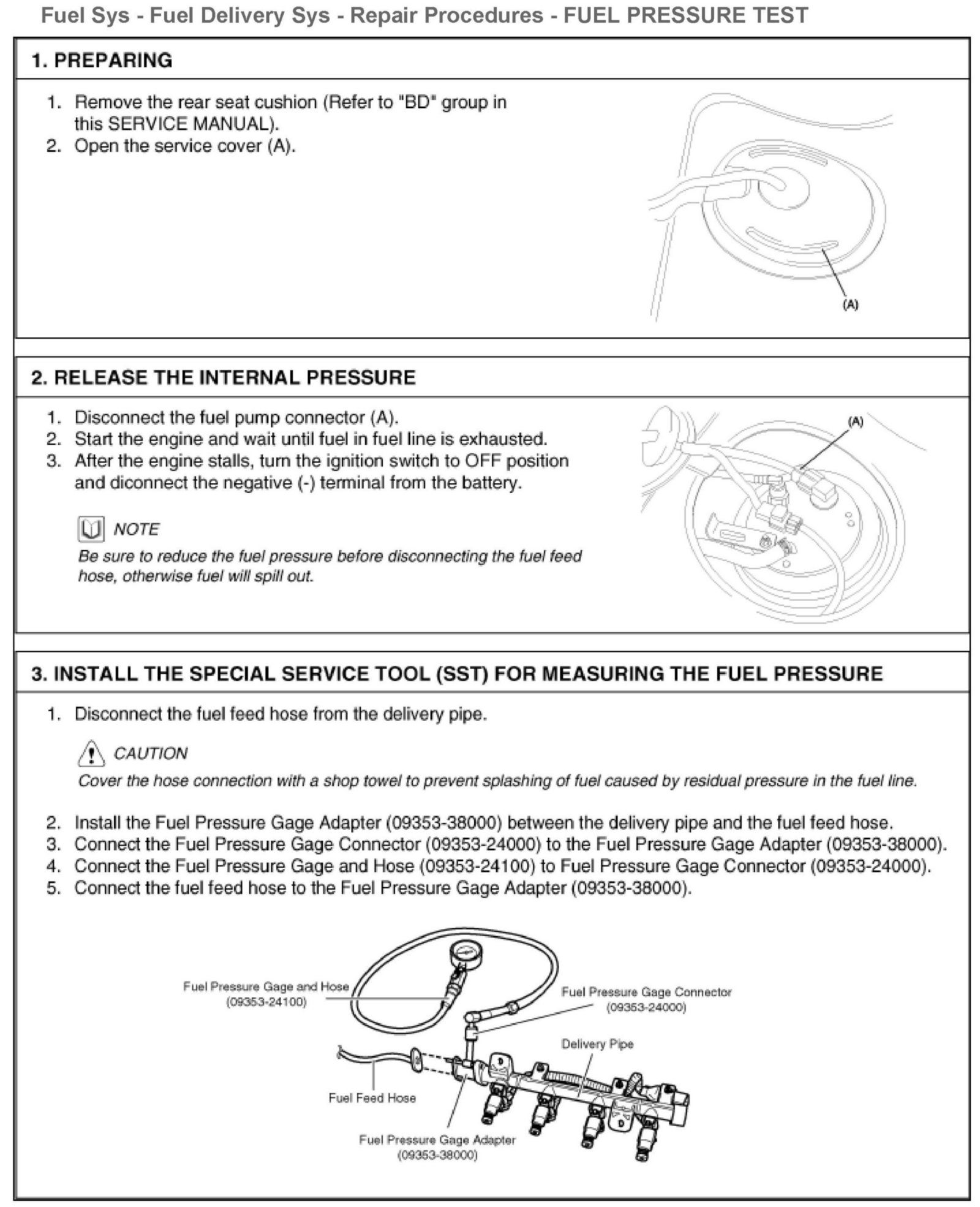

Fuel Pressure Test (Steps 1 - 3):

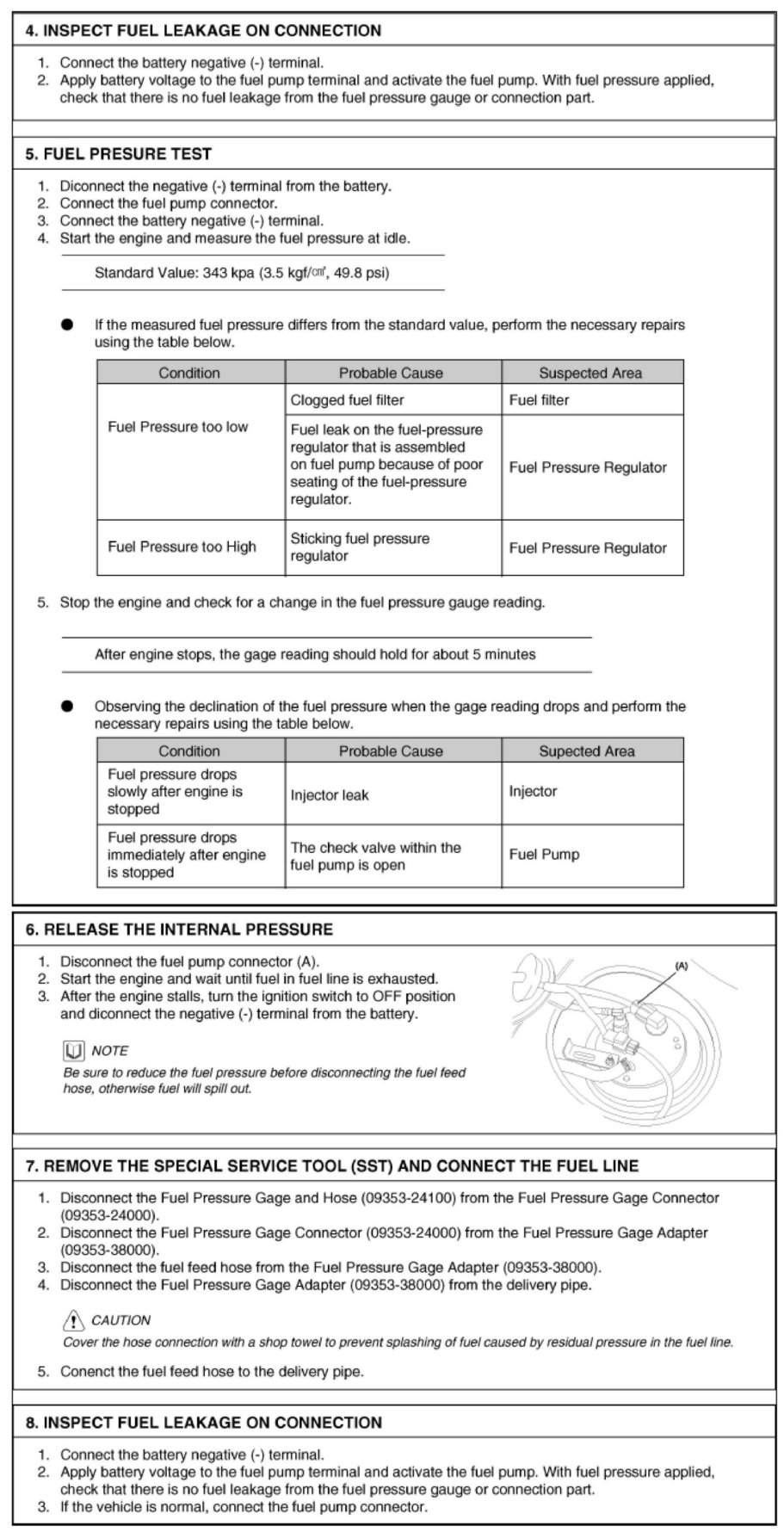

Fuel Pressure Test (Steps 4 - 8):
