Courtesy Lamp: Service and Repair

Overhead Console Lamp

REPLACEMENT
1. Disconnect the negative (-) battery terminal.
2. Open the sunglasses case from the overhead console.

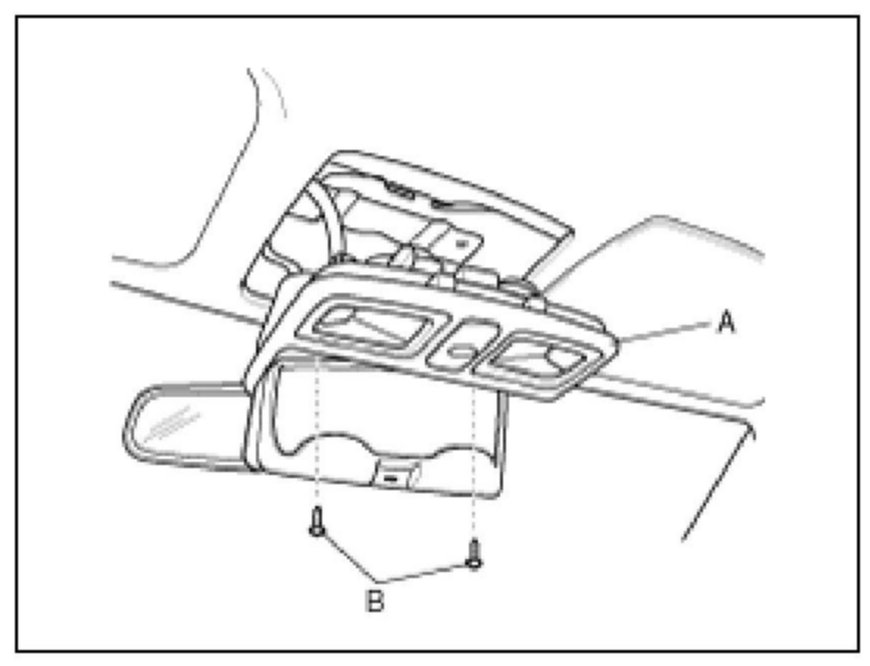

3. Remove the overhead console lamp assembly (A) after removing 2 screws (B) and disconnecting the connector.
4. Installation is the reverse of removal.
