Home
>>
Kia
>>
2005
>>
Spectra L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>
Main & Air Bag Ext. Harness
Main & Air Bag Ext. Harness

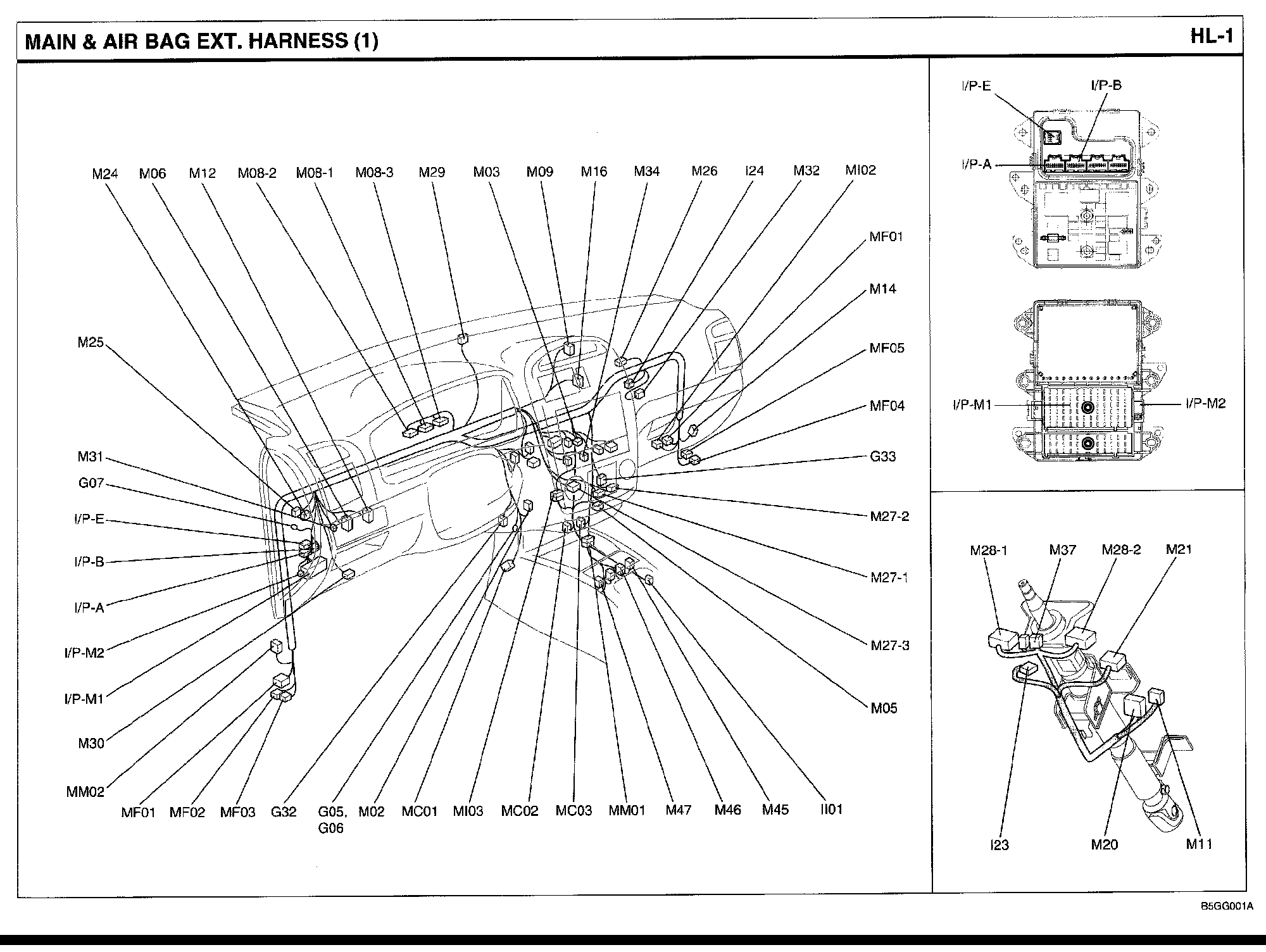

Main & Air Bag Exit. Harness View:

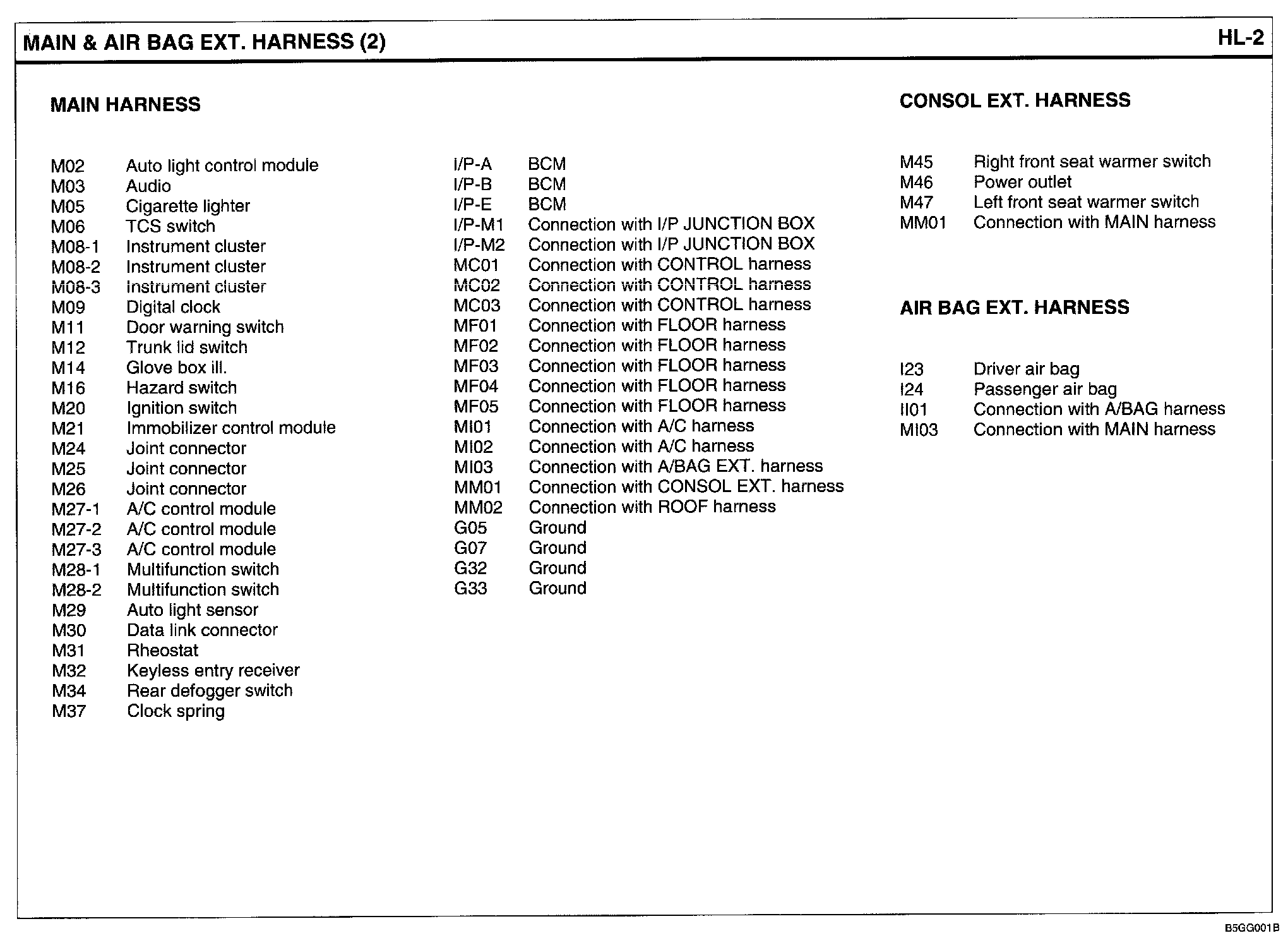

Main & Air Bag Exit. Harness Index:
