System Diagram
System Diagram
Engine/Transaxle Control System
Diagram B-1a:
Diagram B-1b:
Diagram B-1c:
Diagram B-1d:

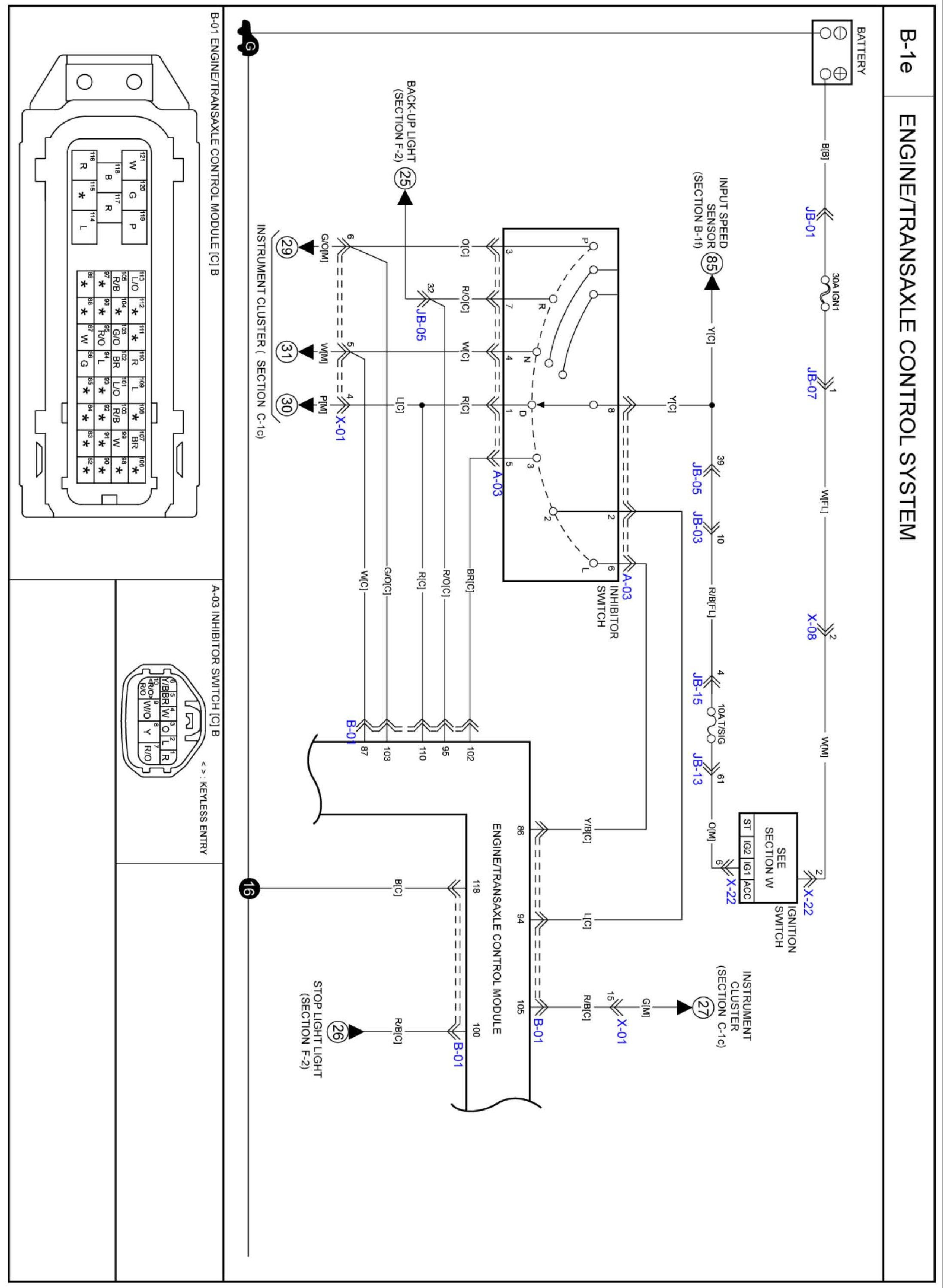

Diagram B-1e:

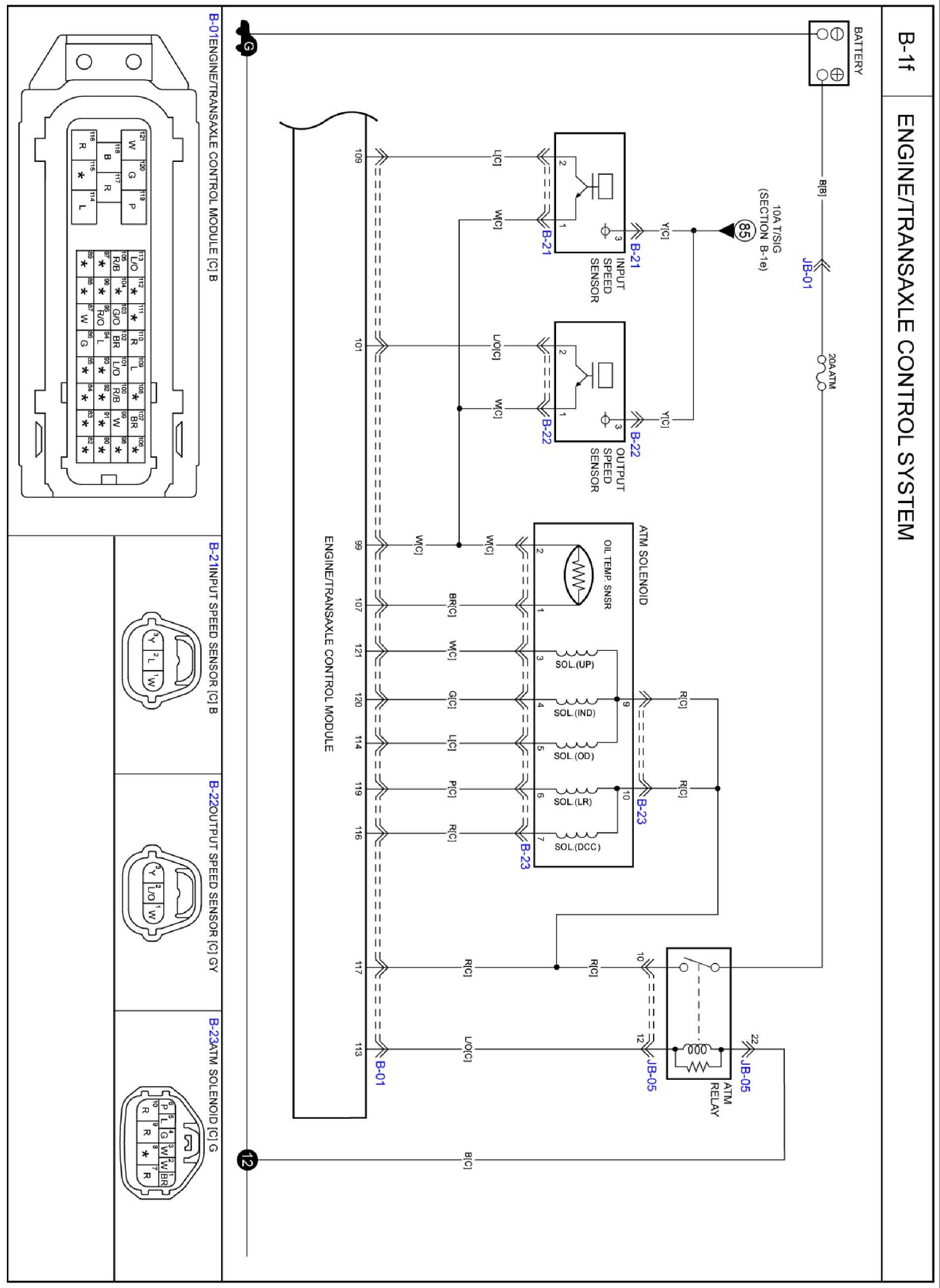

Diagram B-1f:
