Antilock Brakes / Traction Control Systems

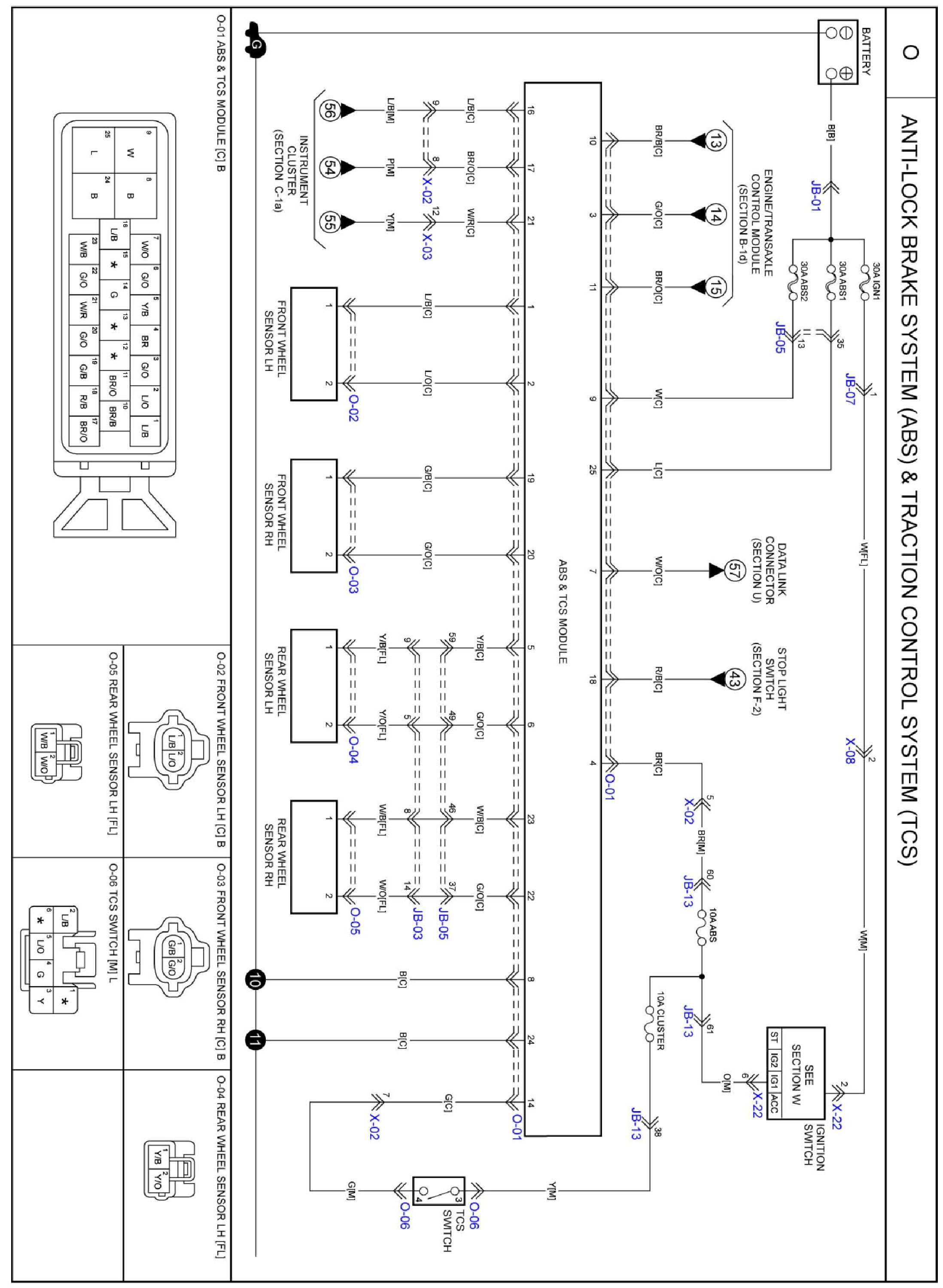

Antilock Brake System (ABS) & Traction Control System (TCS)

Diagram O:
