Door Switch

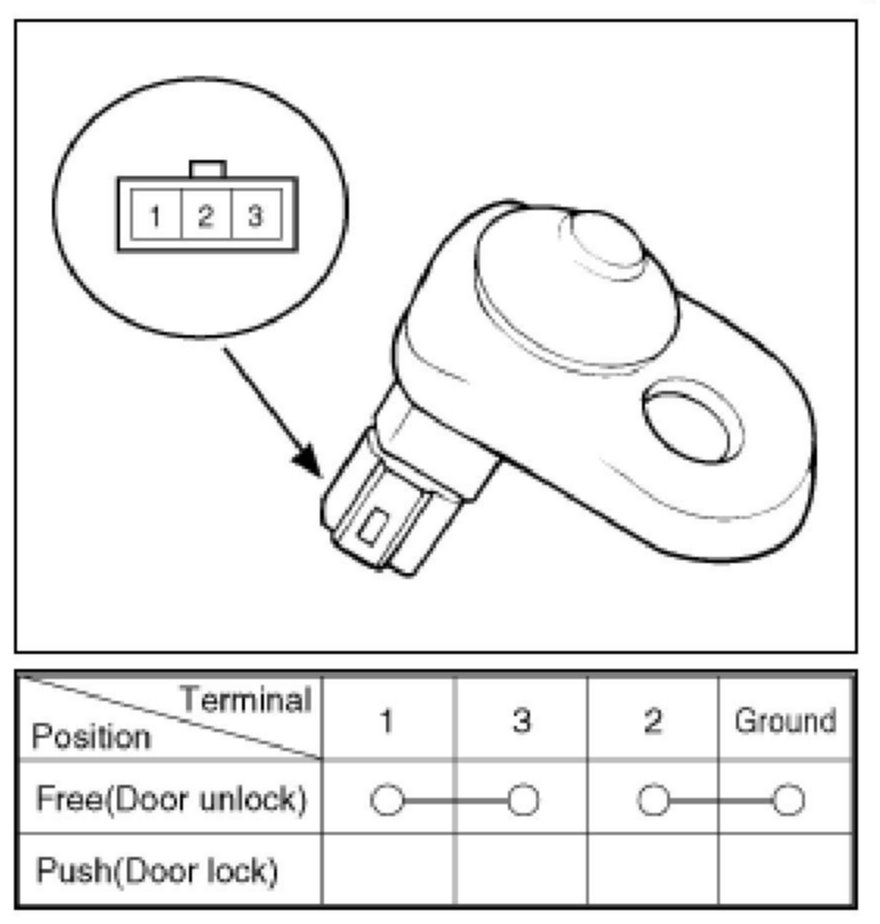

DOOR SWITCH INSPECTION
Remove the door switch and check for continuity between the terminals.
