P0755

DTC P0755 UNDER DRIVE (UD) SOLENOID VALVE E215CE36

DESCRIPTION
The input shaft and underdrive sun gear are connected when the UD solenoid operation.

The UD solenoid is operated at the 1st, 2nd, 3rd gear.

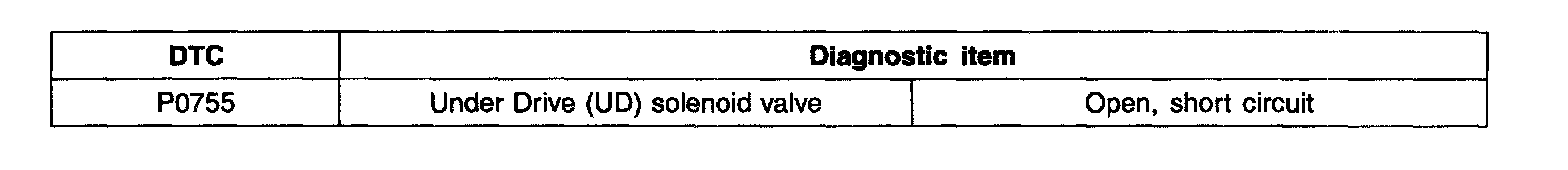

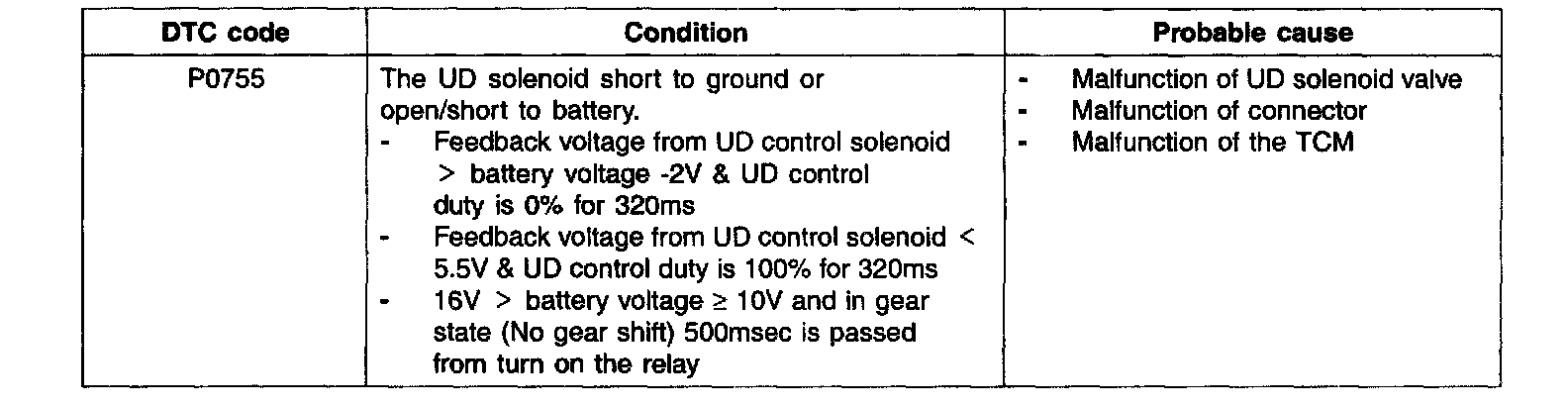

DTC DETECTING CONDITION

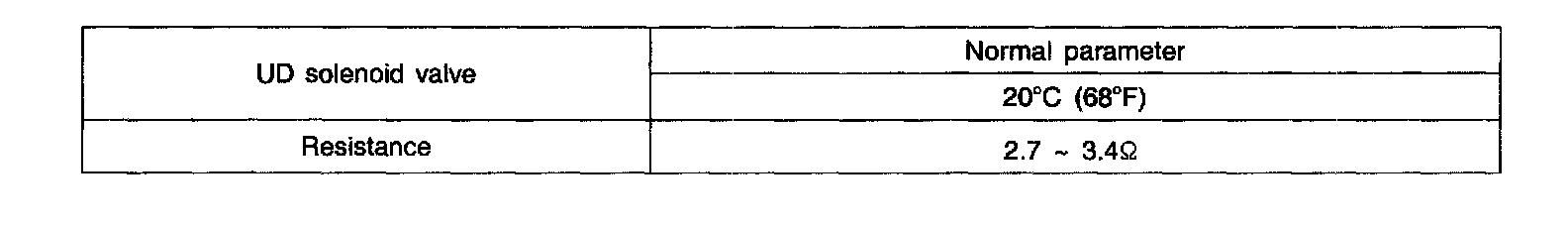

SPECIFICATIONS

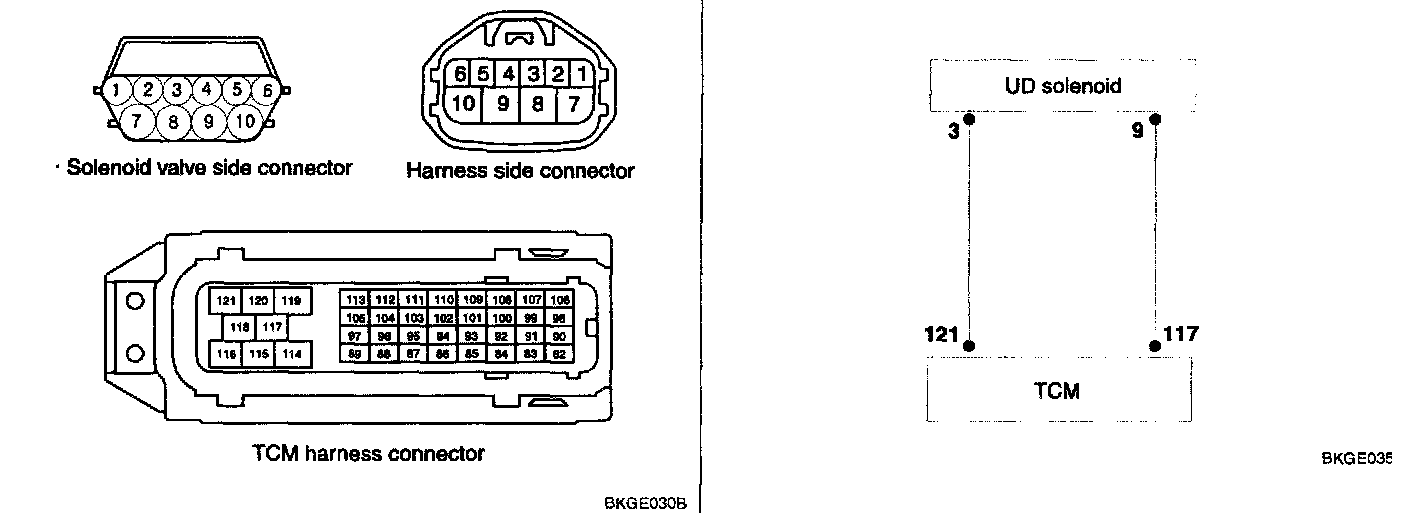

SCHEMATIC DIAGRAM

Part 1:

Part 2:

Part 3:

Part 4:

Part 5:

Part 6:

Part 7:

Part 8:

Part 9:

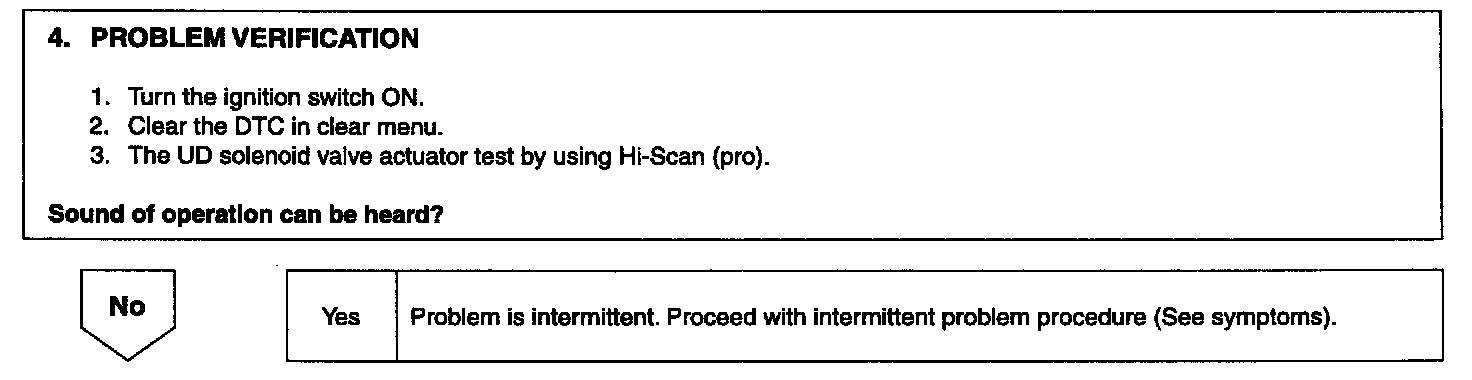

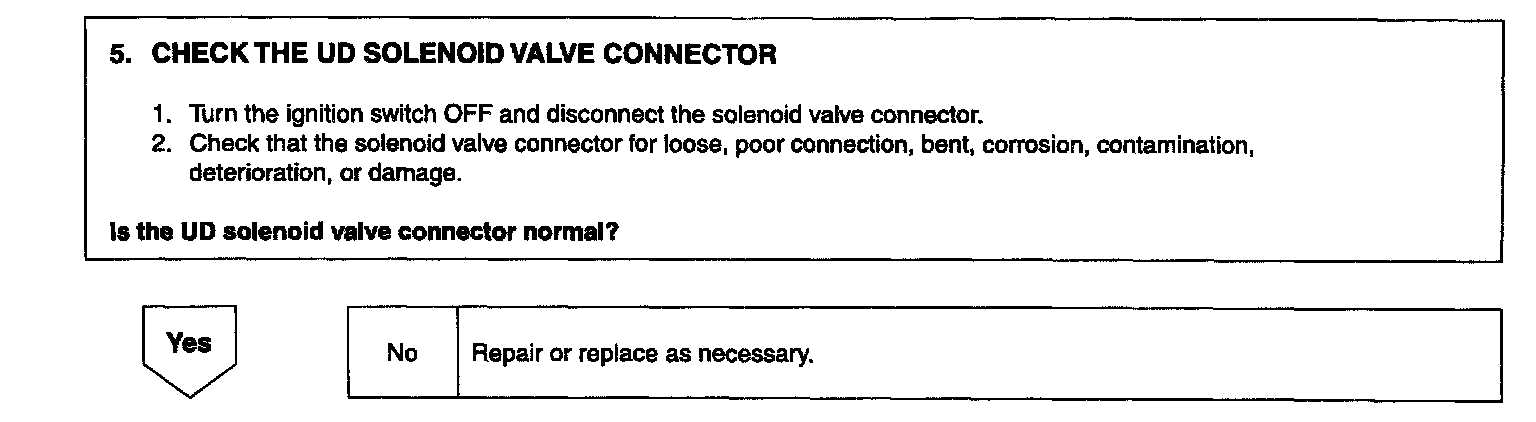

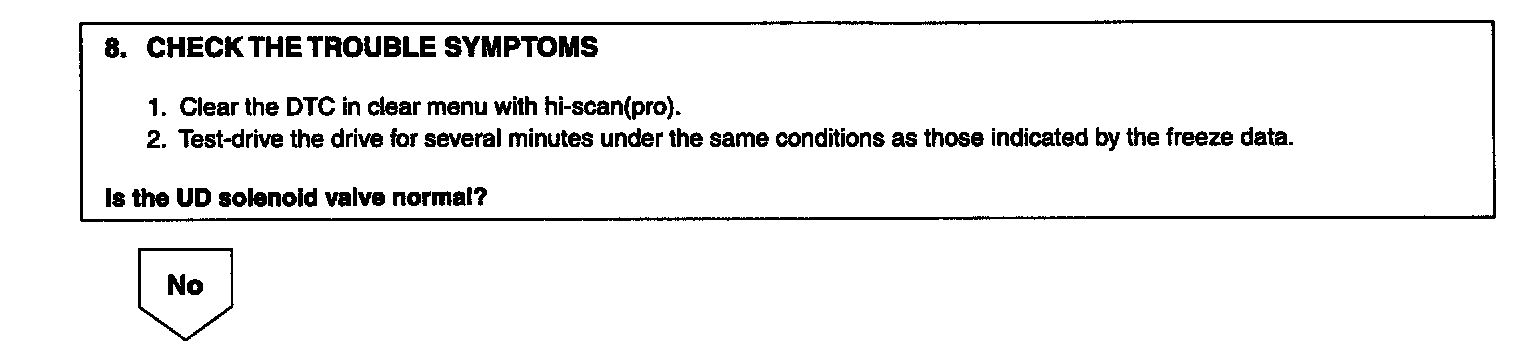

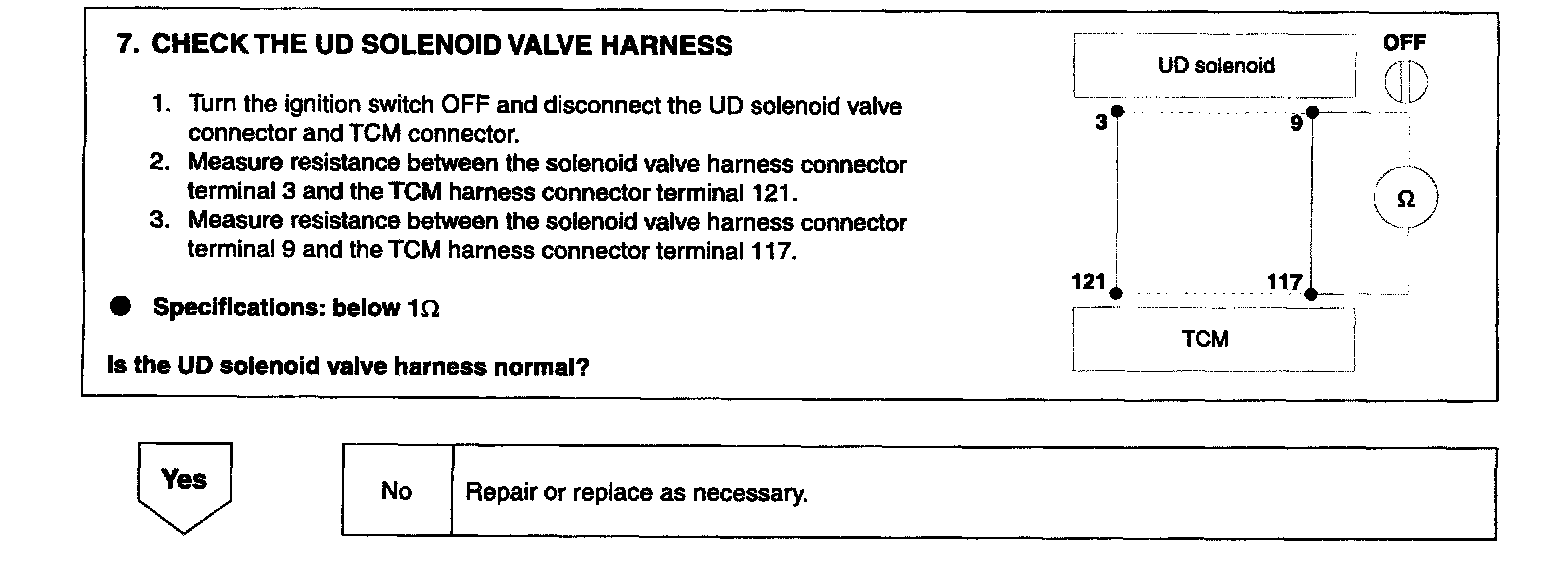

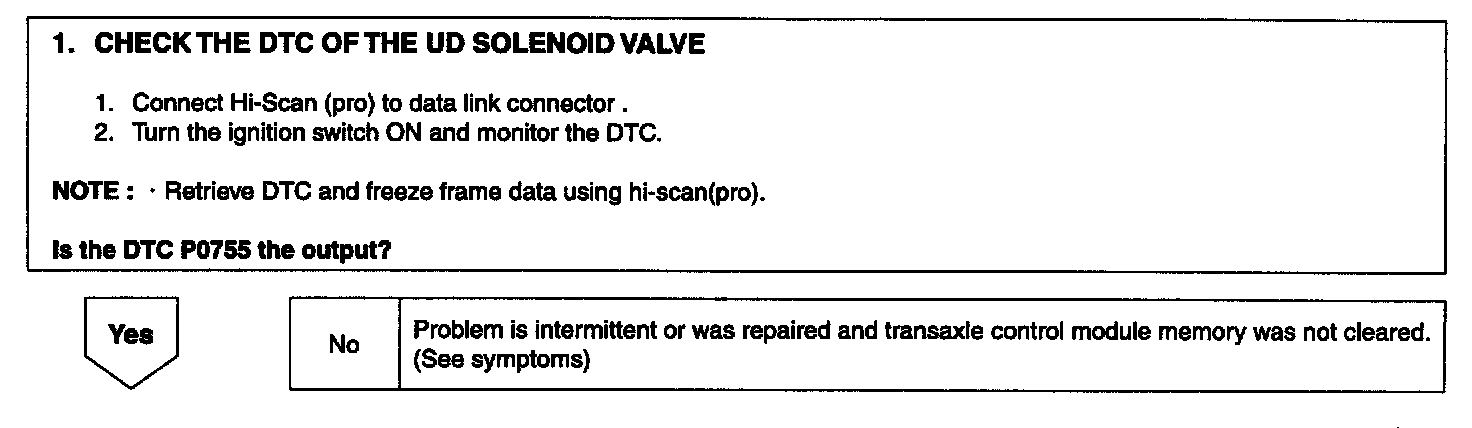

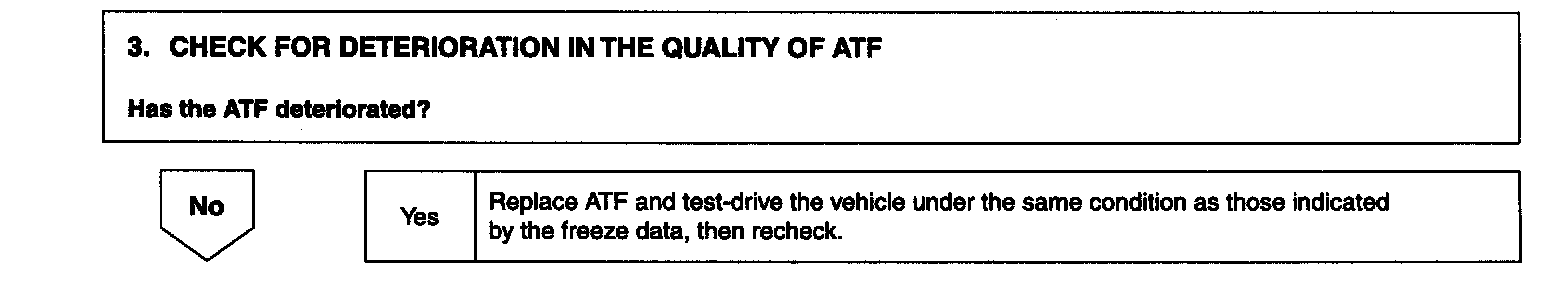

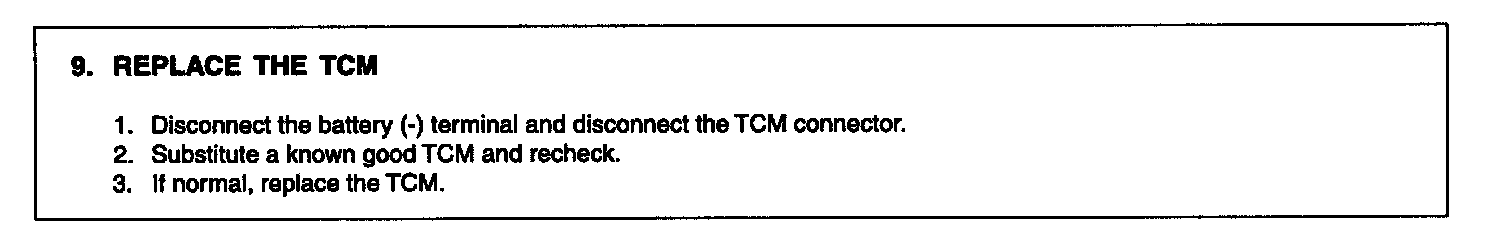

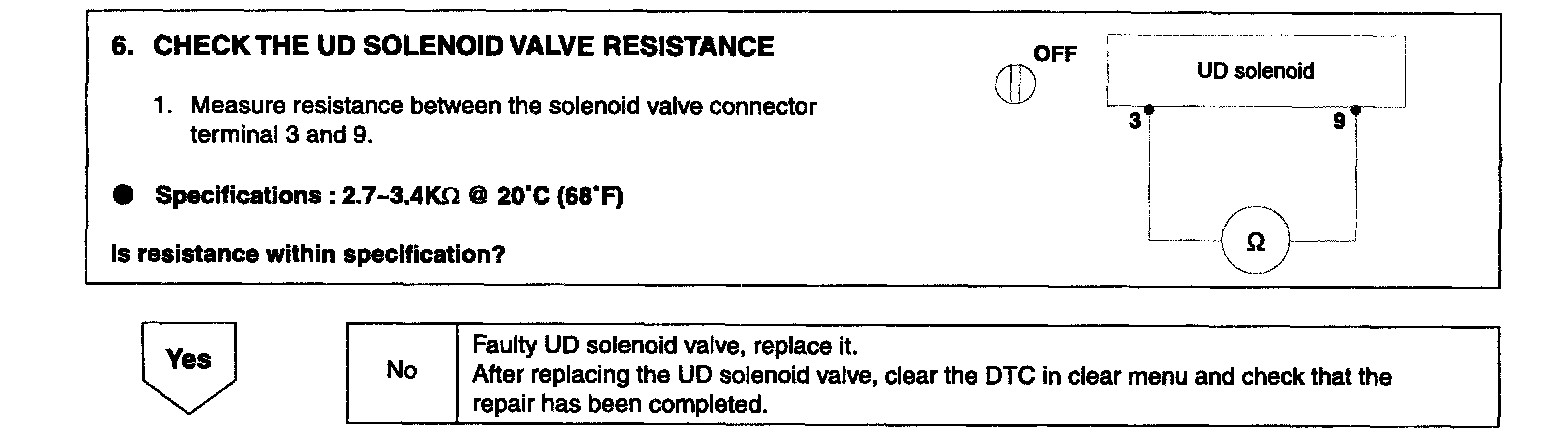

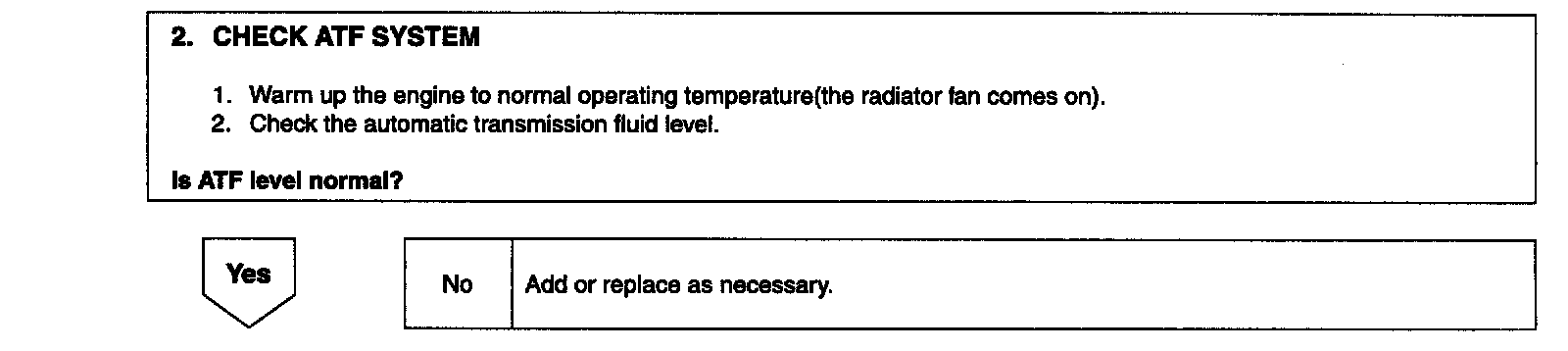

INSPECTION PROCEDURES
