P0741

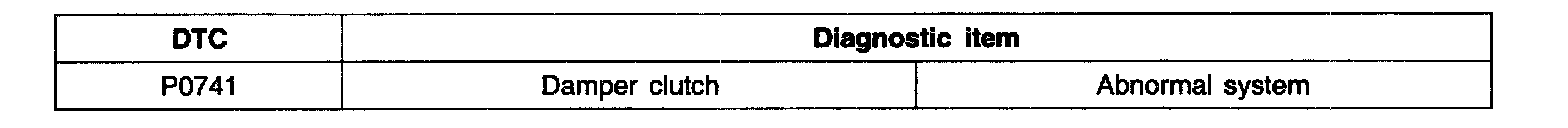

DTC P0741 DAMPER CLUTCH

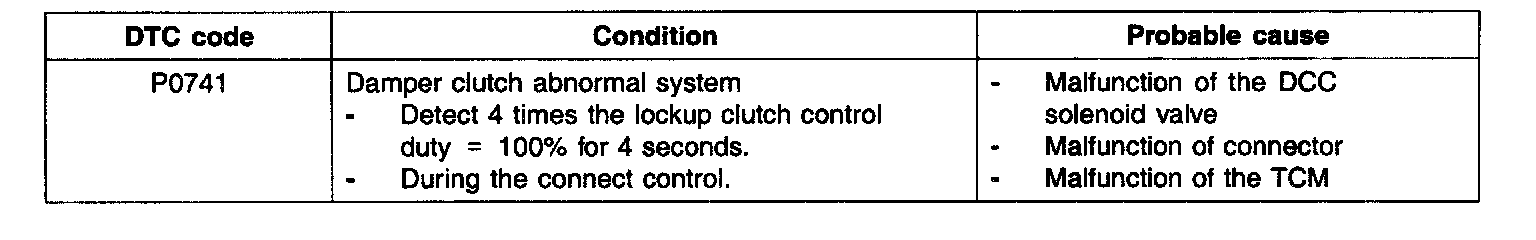

DTC DETECTING CONDITION





SPECIFICATIONS

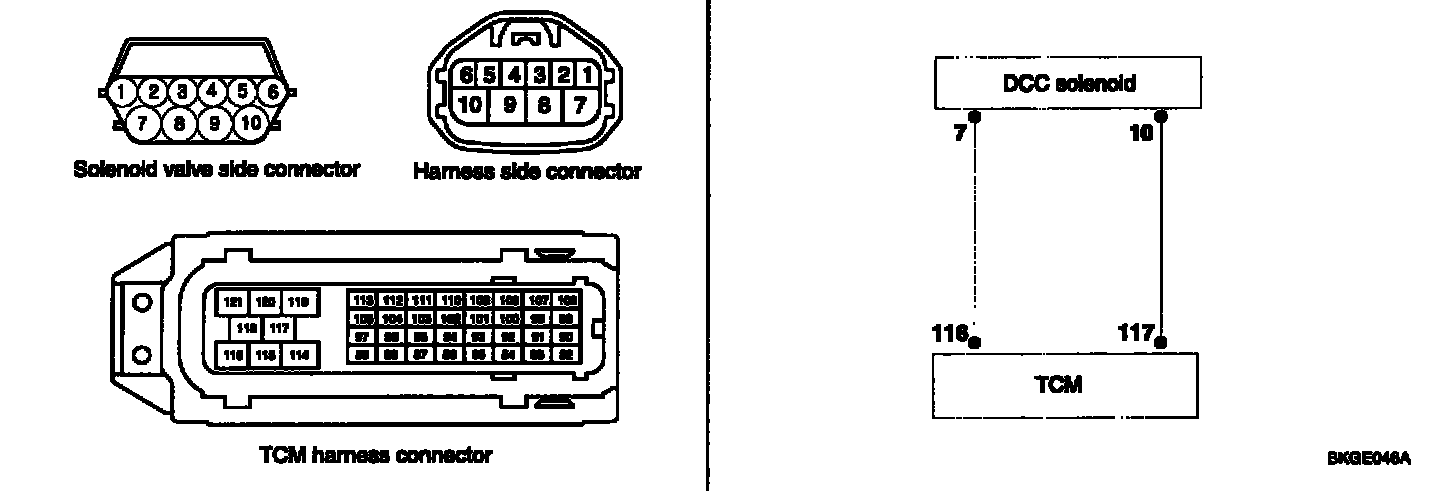

SCHEMATIC DIAGRAM

Part 1:




Part 2:




Part 3:




Part 4:




Part 5:




Part 6:




Part 7:




Part 8:




Part 9:

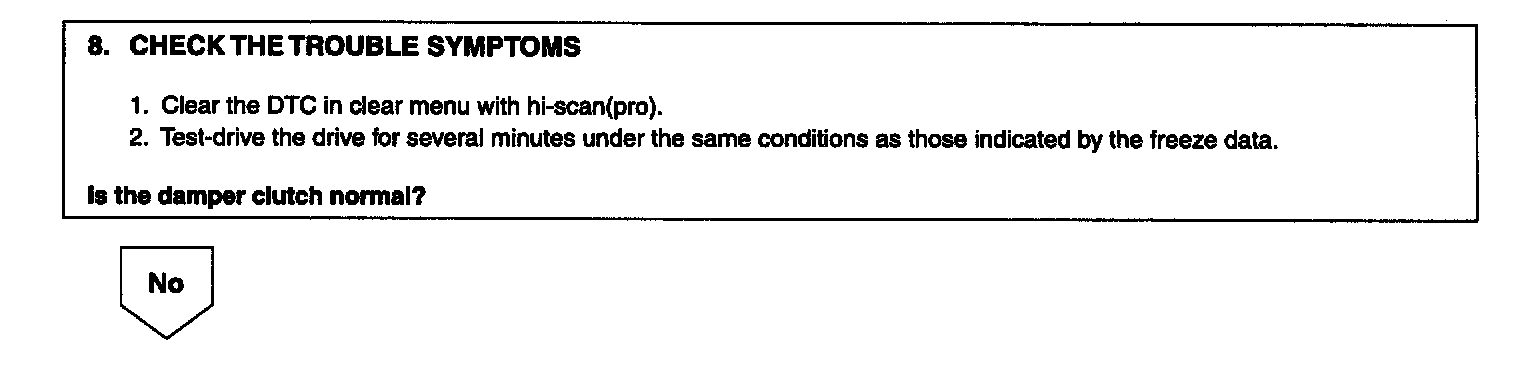

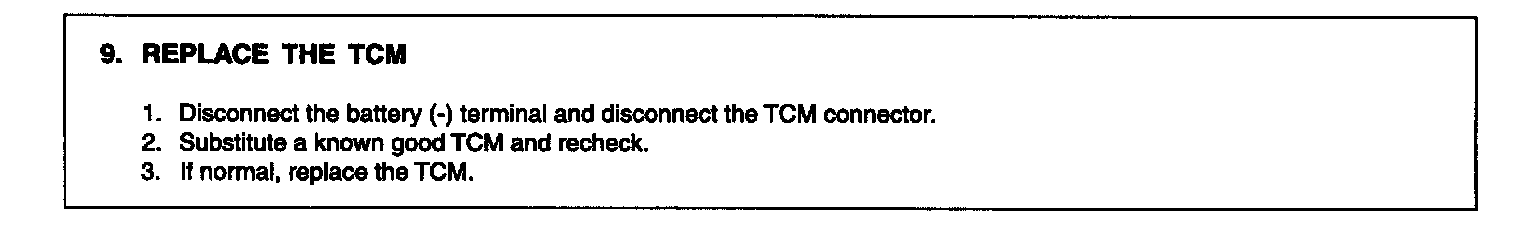

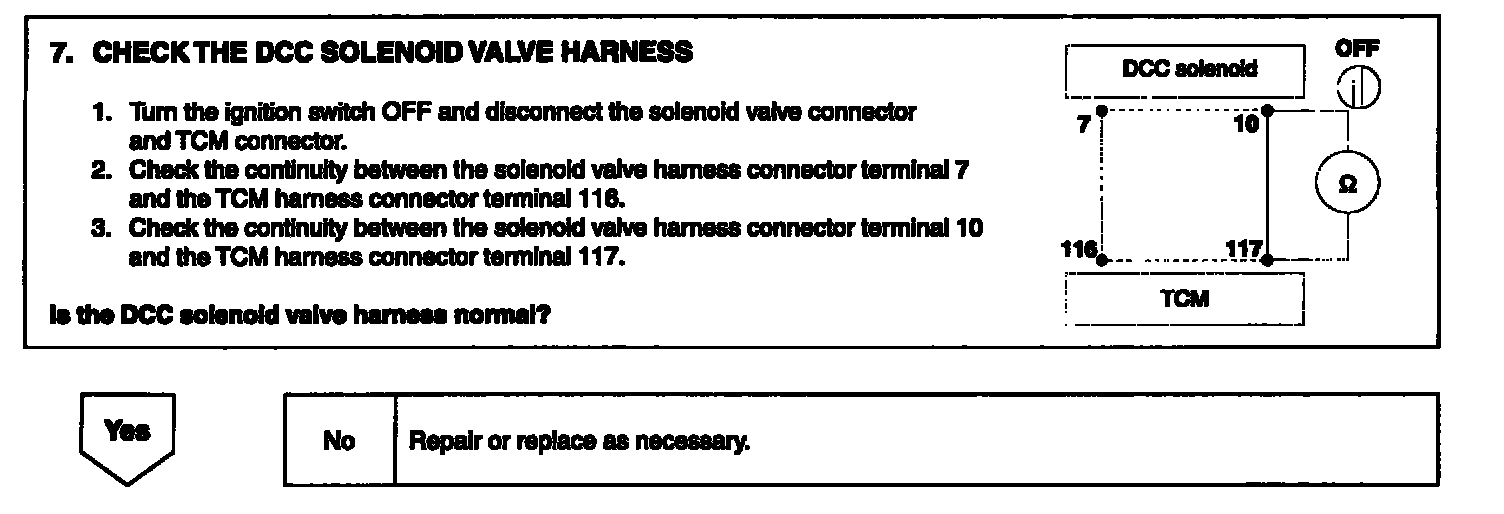

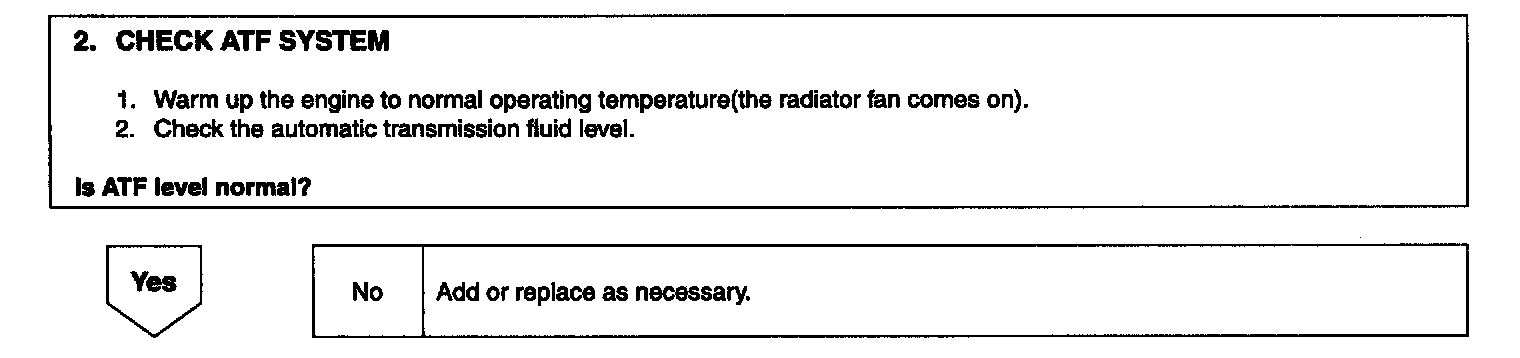

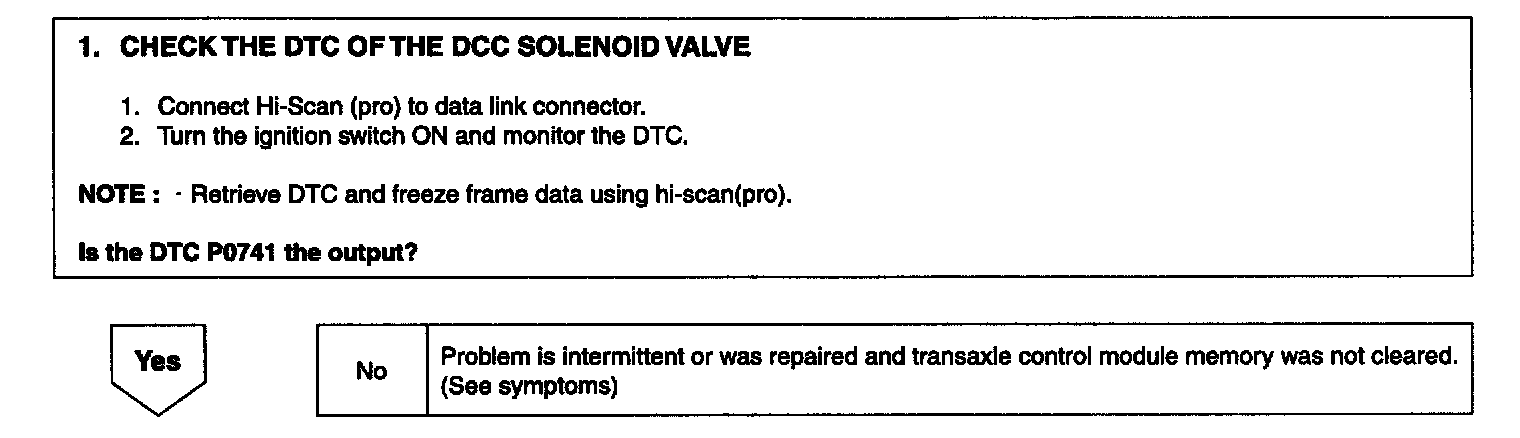

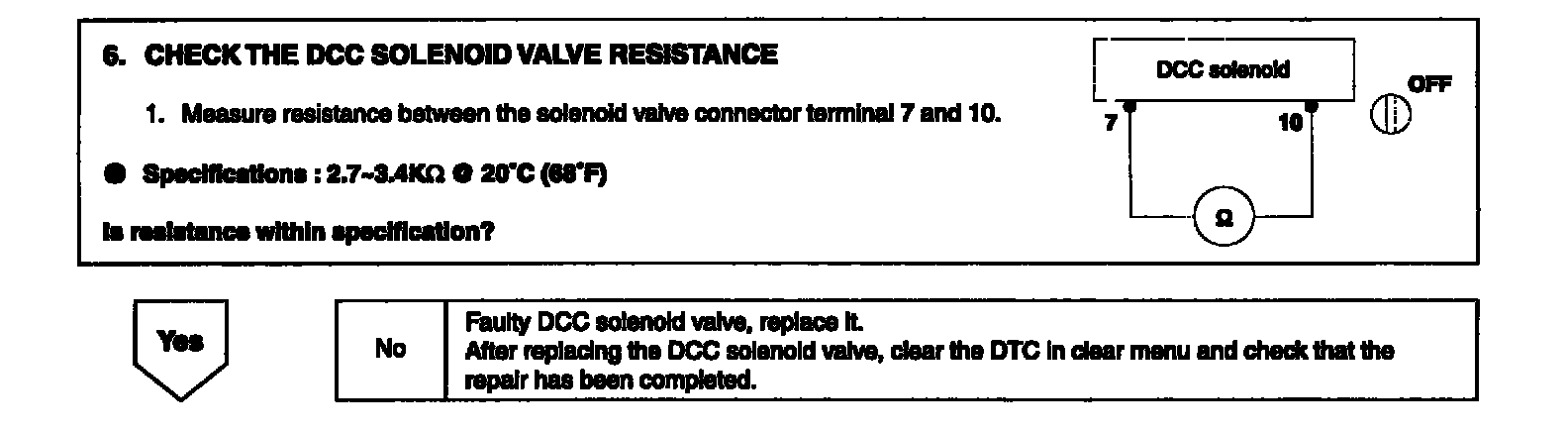

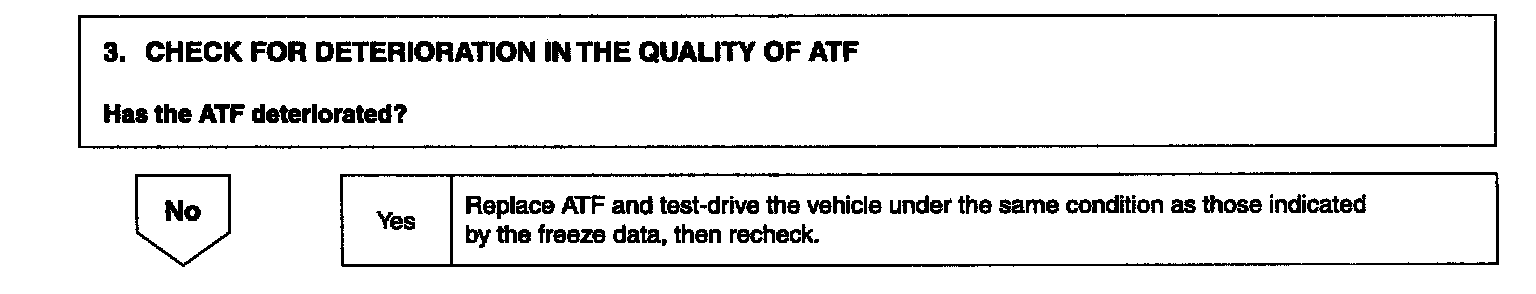

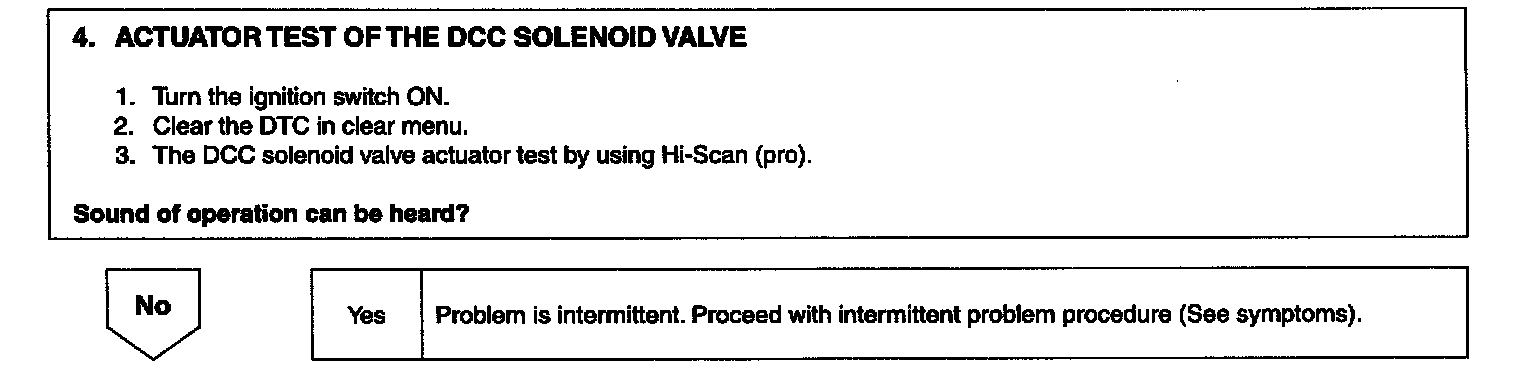

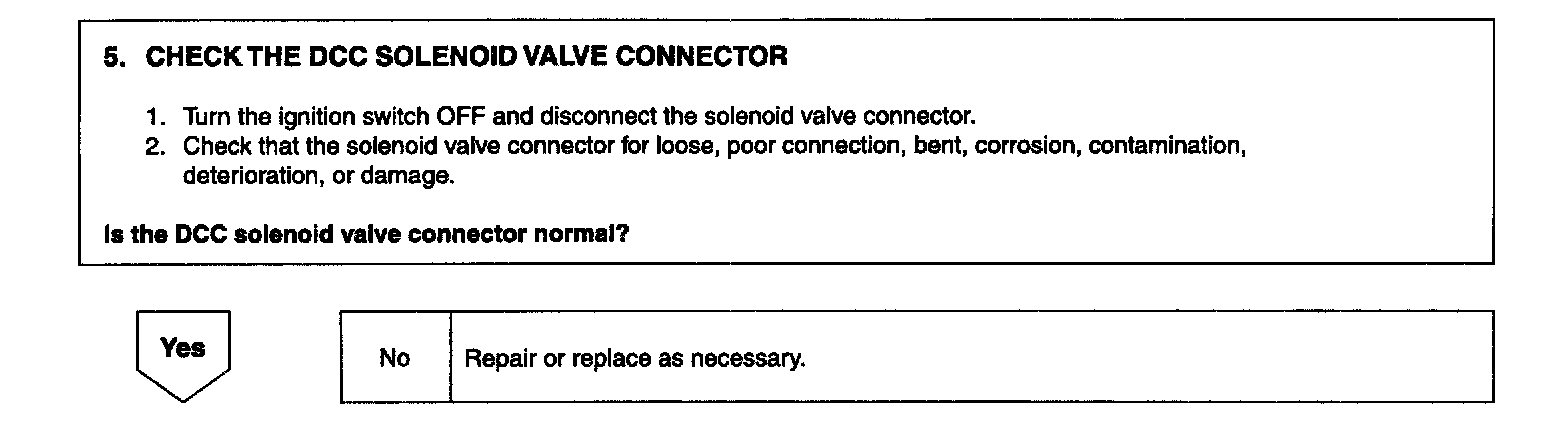

INSPECTION PROCEDURES
