P0708

DTC P0708 TRANSAXLE RANGE SWITCH (TR SWITCH)





DESCRIPTION

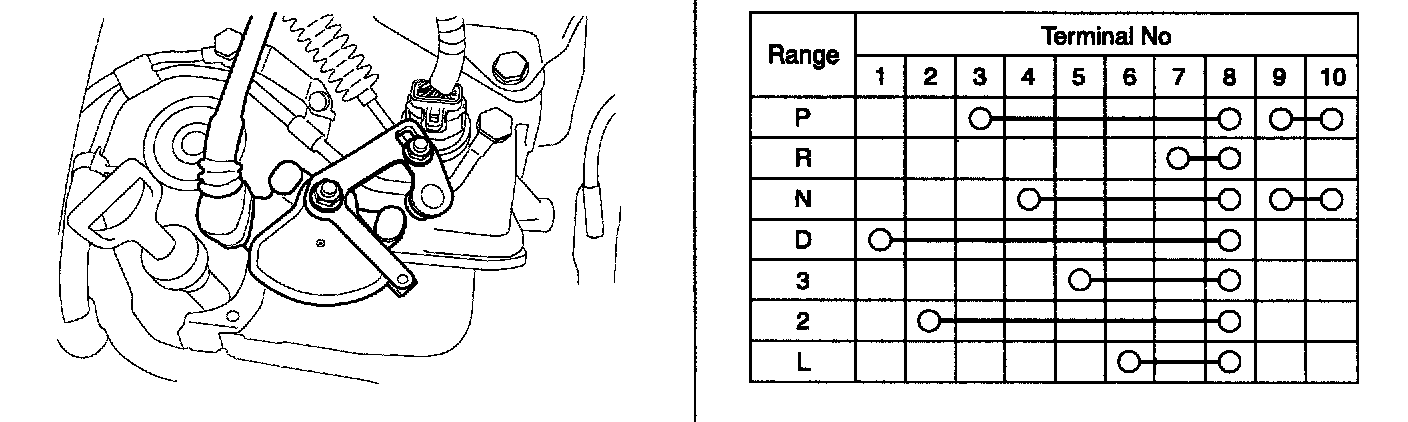

The TCM monitors this voltage, which corresponds to the position of the transaxle gear shift lever to determine desired gear and electronic pressure control. The transaxle range switch is located on the top of the transaxle, and also contains the neutral/start circuit.

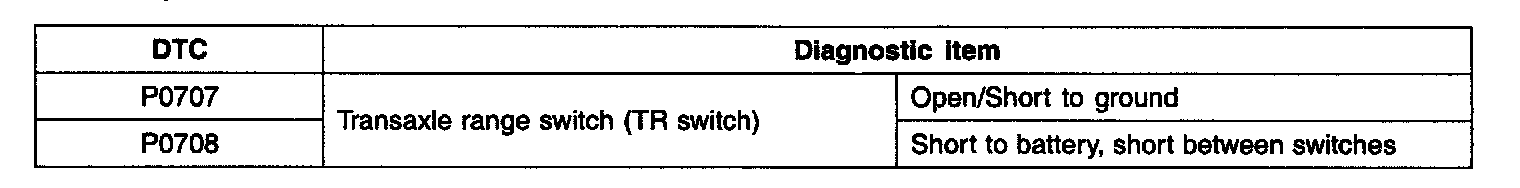

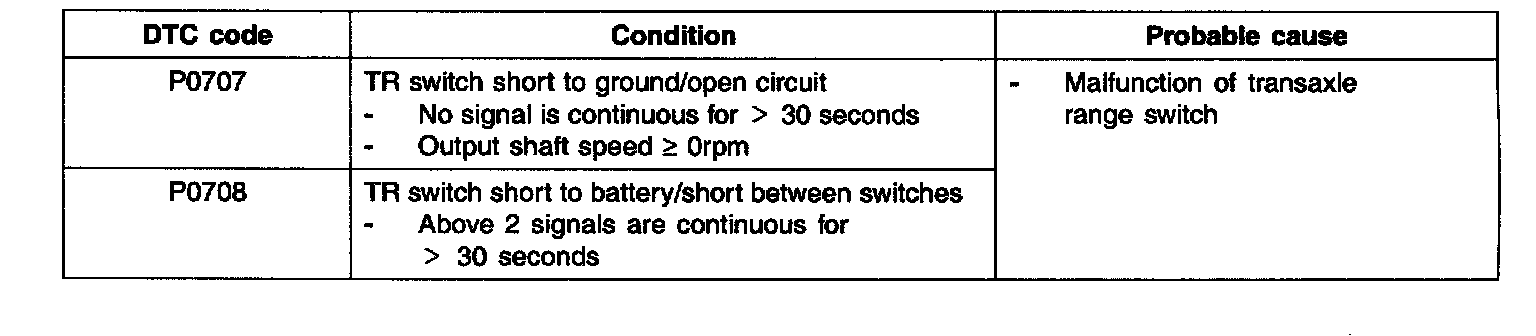

DTC DETECTING CONDITION

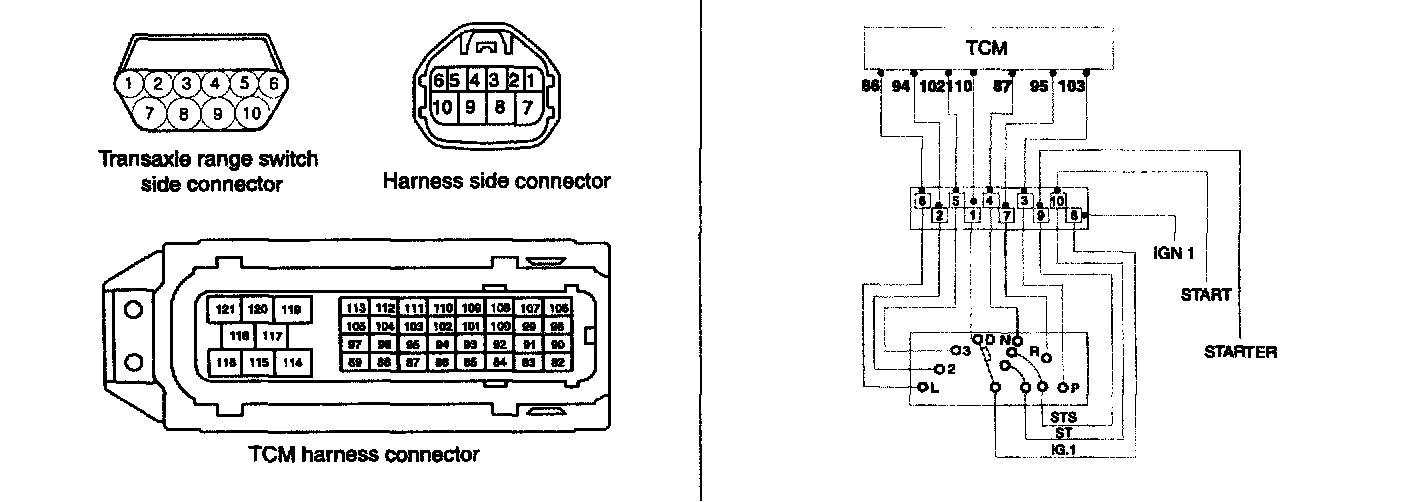

SCHEMATIC DIAGRAM

Part 1:

Part 2:

Part 3:

Part 4:

Part 5:

Part 6:

Part 7:

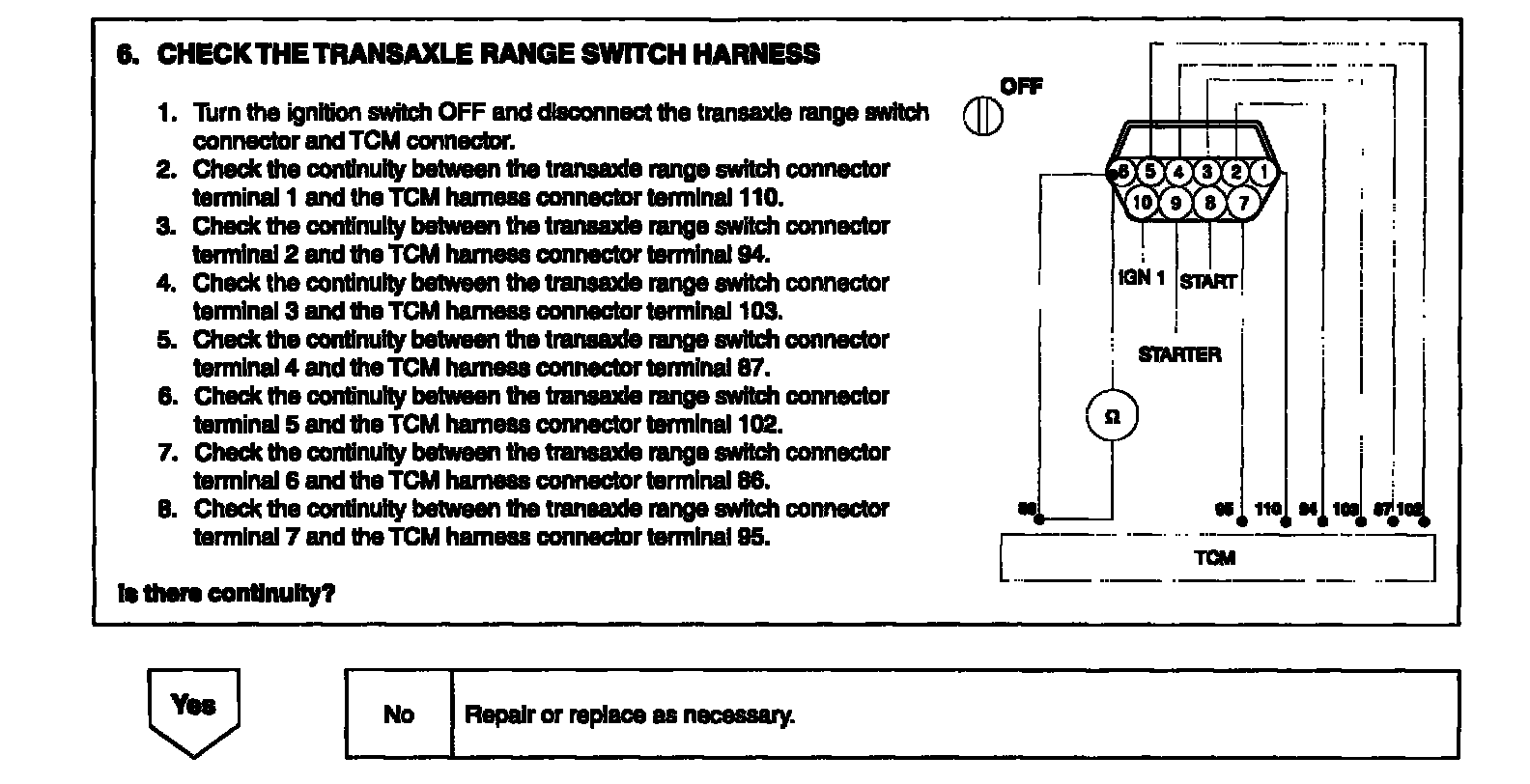

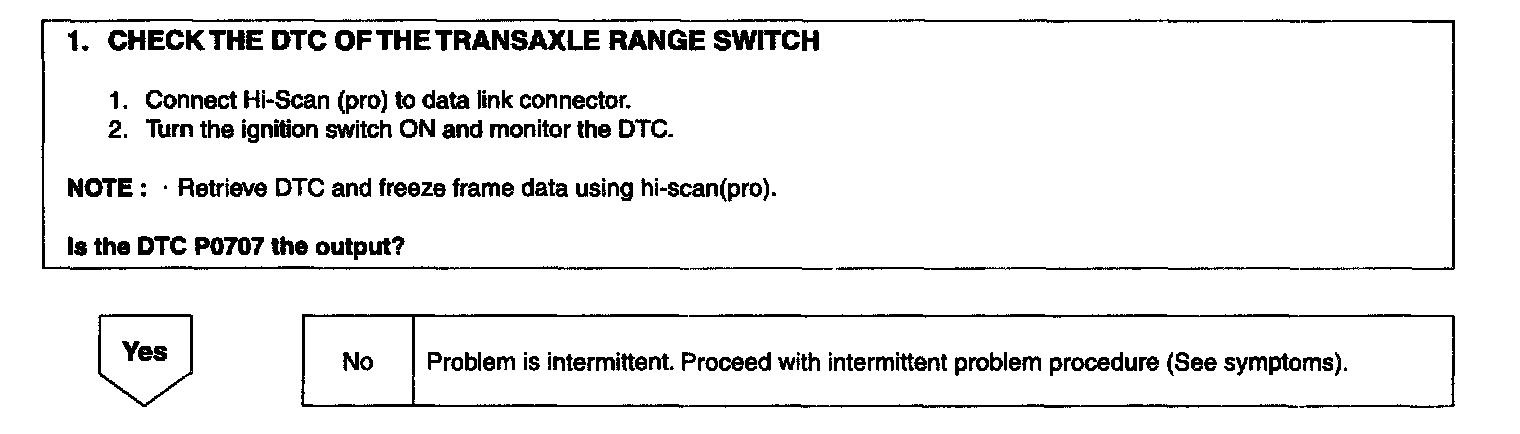

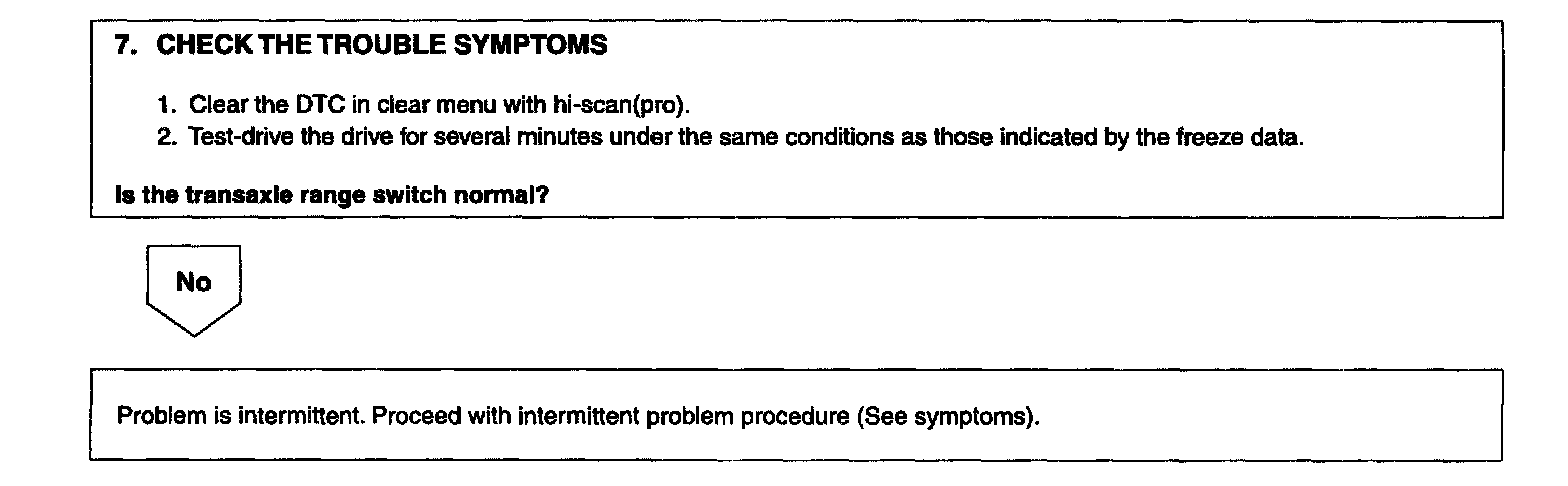

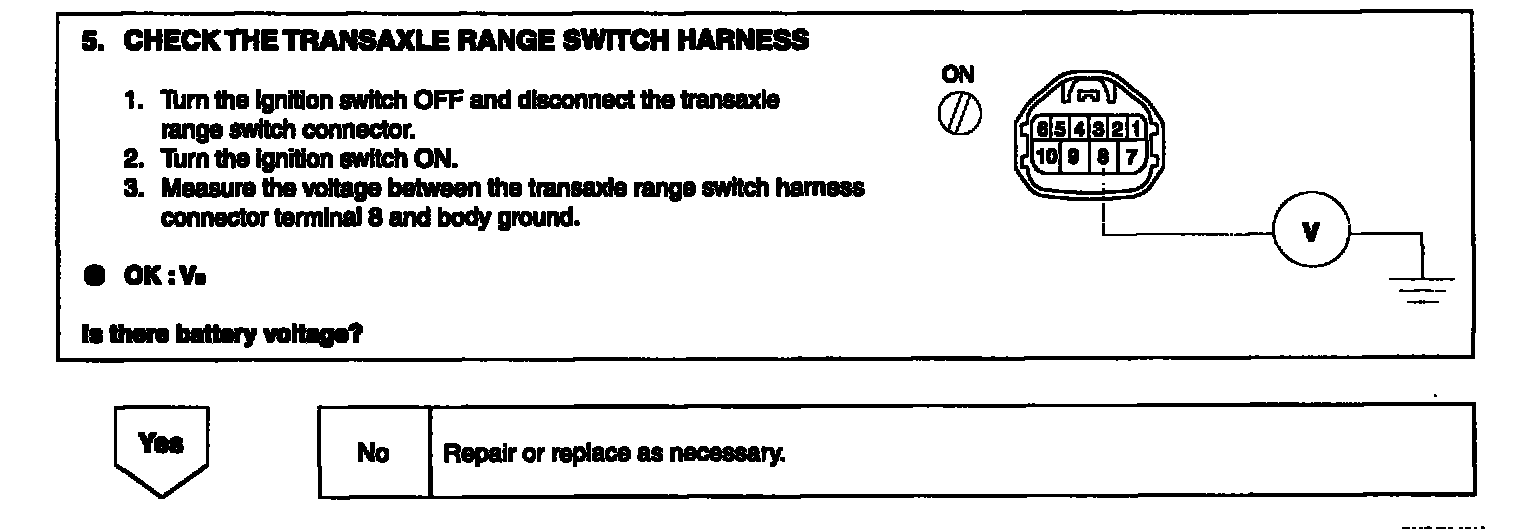

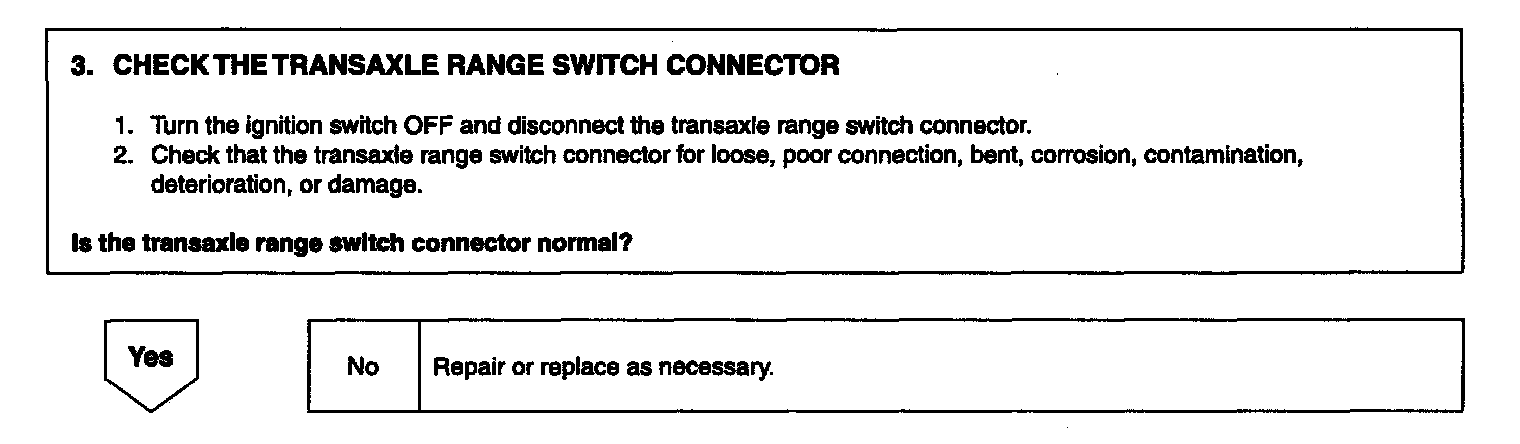

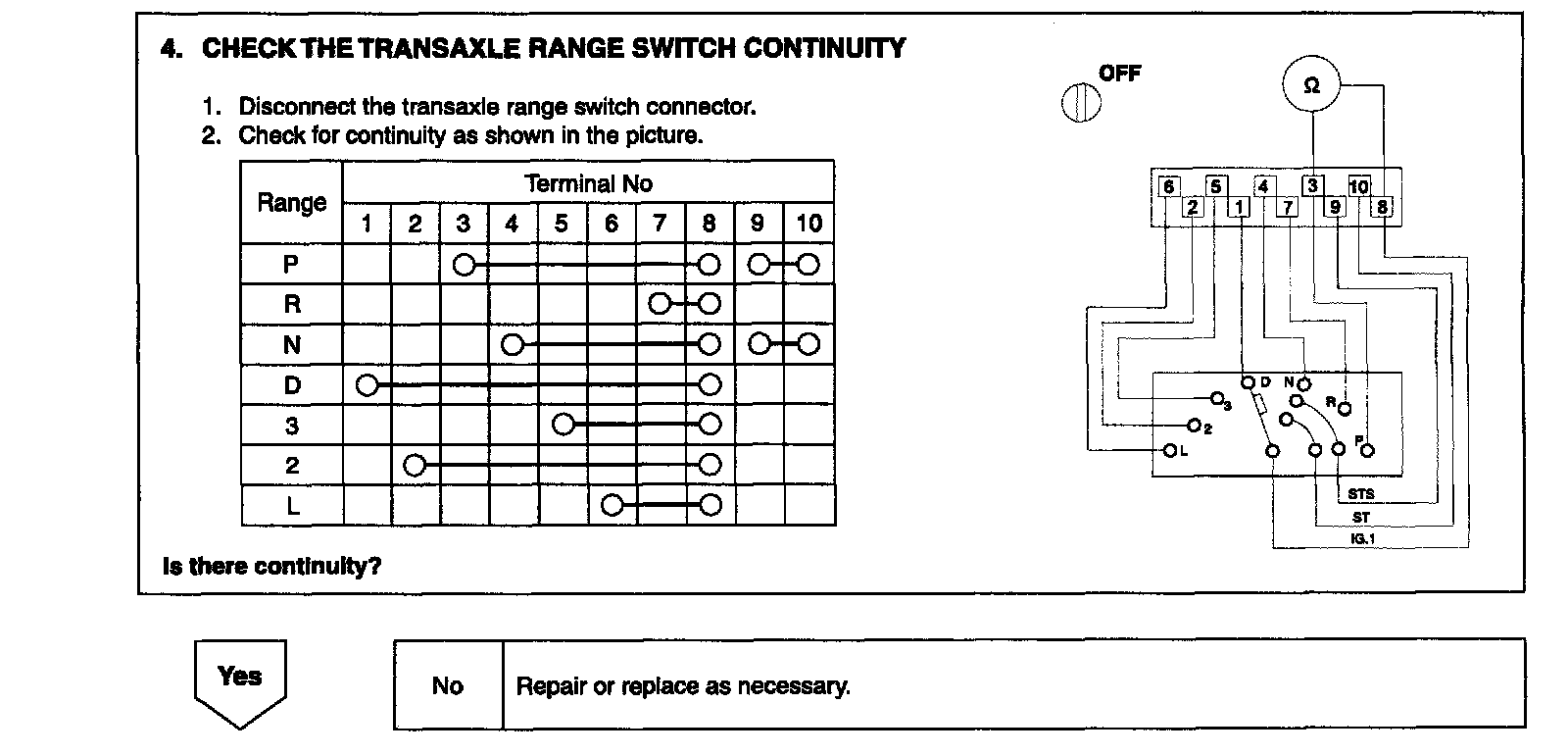

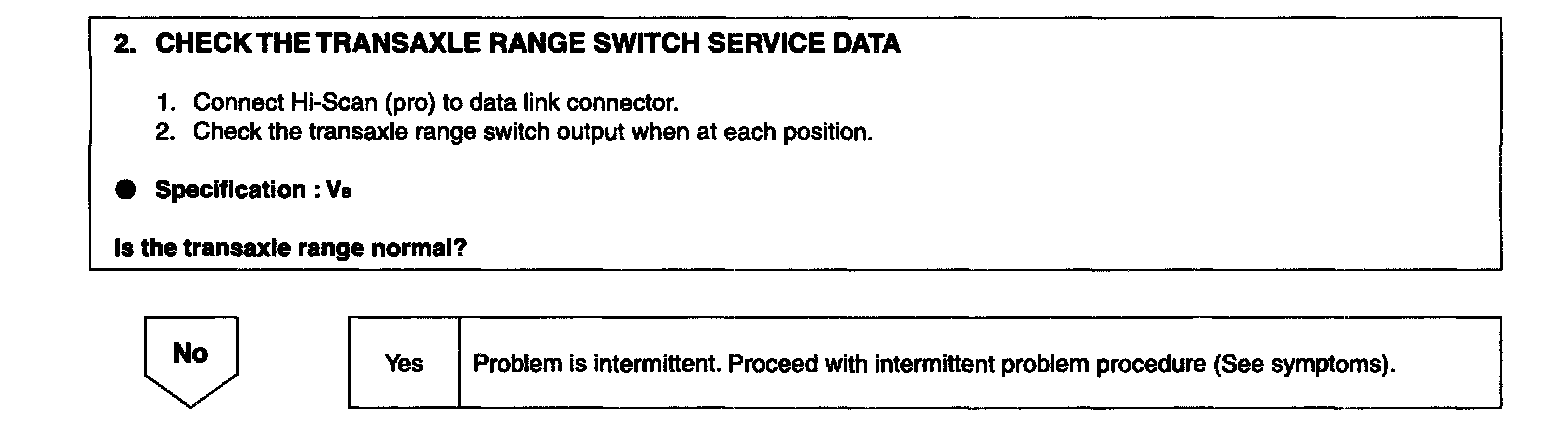

INSPECTION PROCEDURES
