B1483

B1348 (1st Stage) Driver Airbag Circuit Short to Ground
B1483 (2nd Stage) Driver Airbag Circuit Short to Ground

DESCRIPTION
The Driver Airbag circuit consists of the SRSCM, Clock spring and the Driver Airbag (DAB) which has two squib circuits. The SRSCM sets above DTC(s) if it detects short to ground on the DAB circuit.

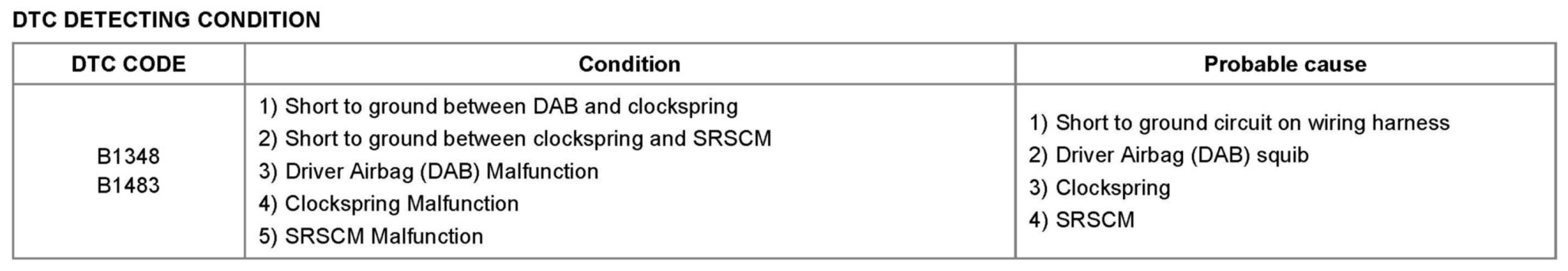

DTC Detecting Condition:

DTC DETECTING CONDITION

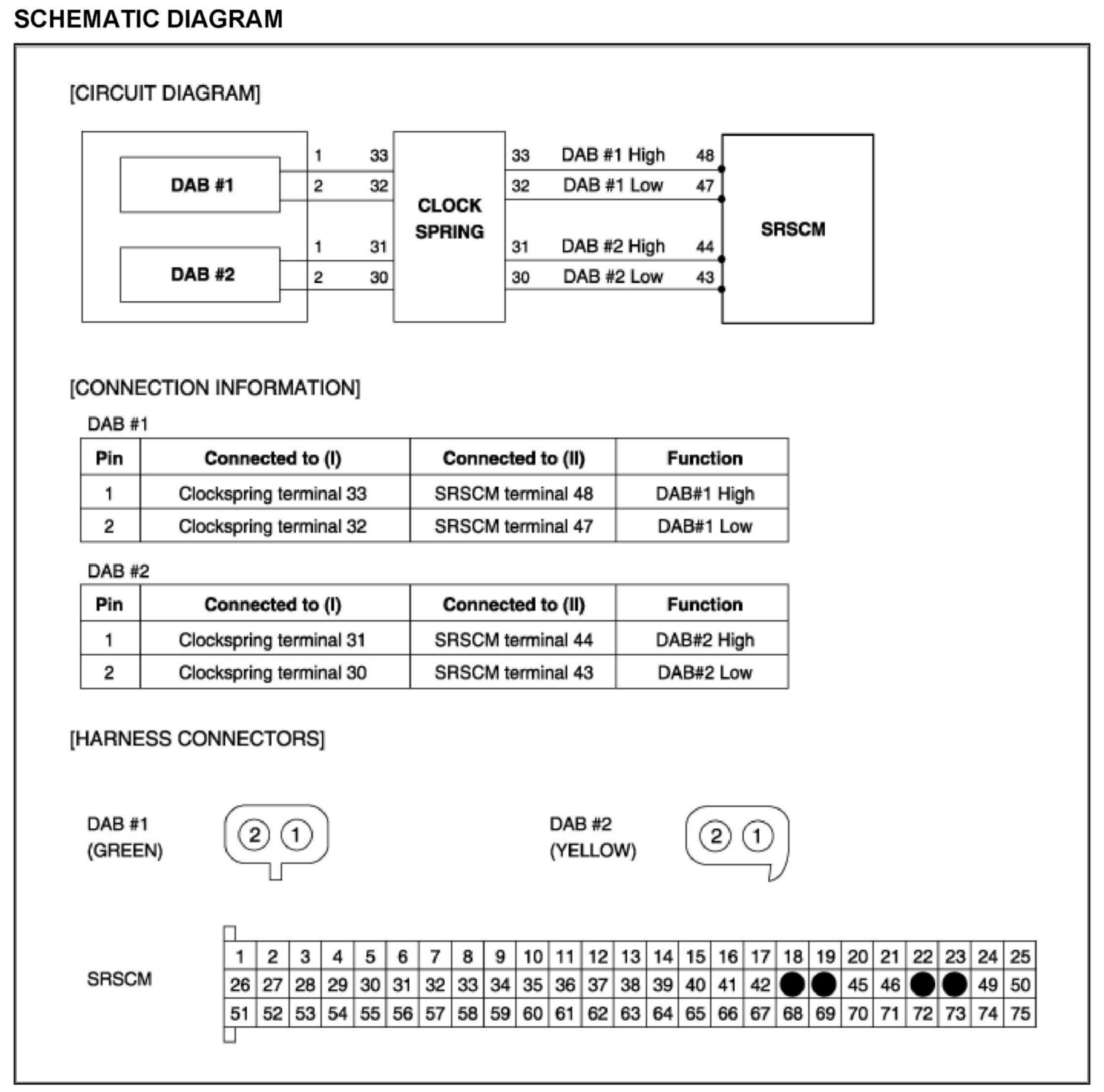

Schematic Diagram:

SCHEMATIC DIAGRAM

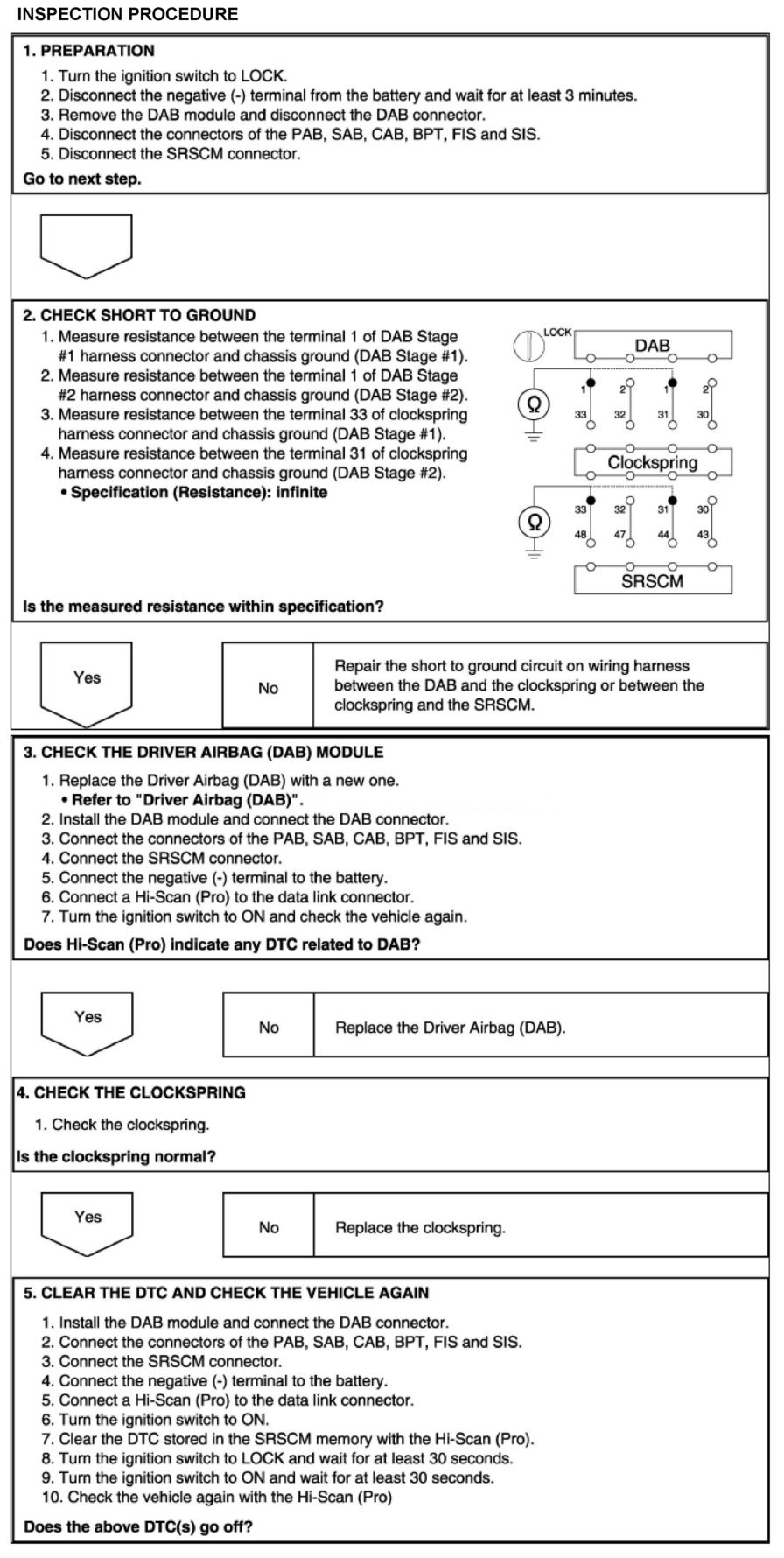

Inspection Procedure (Steps 1 - 5):

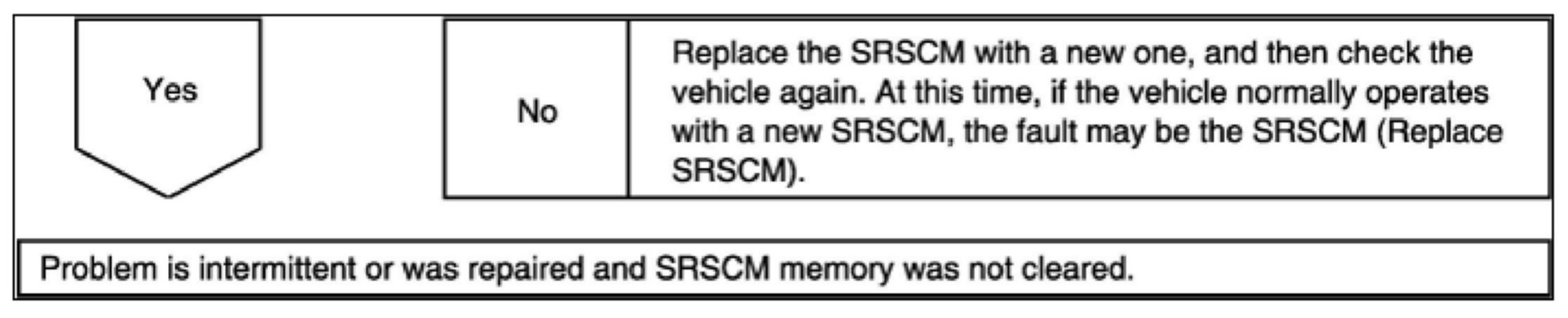

Inspection Procedure (Step 5 (Continued)):

INSPECTION PROCEDURE
