B1382

B1378 Side Airbag [Front-Driver] Resistance too High
B1379 Side Airbag [Front-Driver] Resistance too Low
B1382 Side Airbag [Front-Passenger] Resistance too High
B1383 Side Airbag [Front-Passenger] Resistance too Low

DESCRIPTION
The Side Airbag circuit consists of the SRSCM and two Side Airbag (SAB). The SRSCM sets above DTC(s) if it detects that the resistance of SAB squib is too high or low.

DTC Detecting Condition:

DTC DETECTING CONDITION

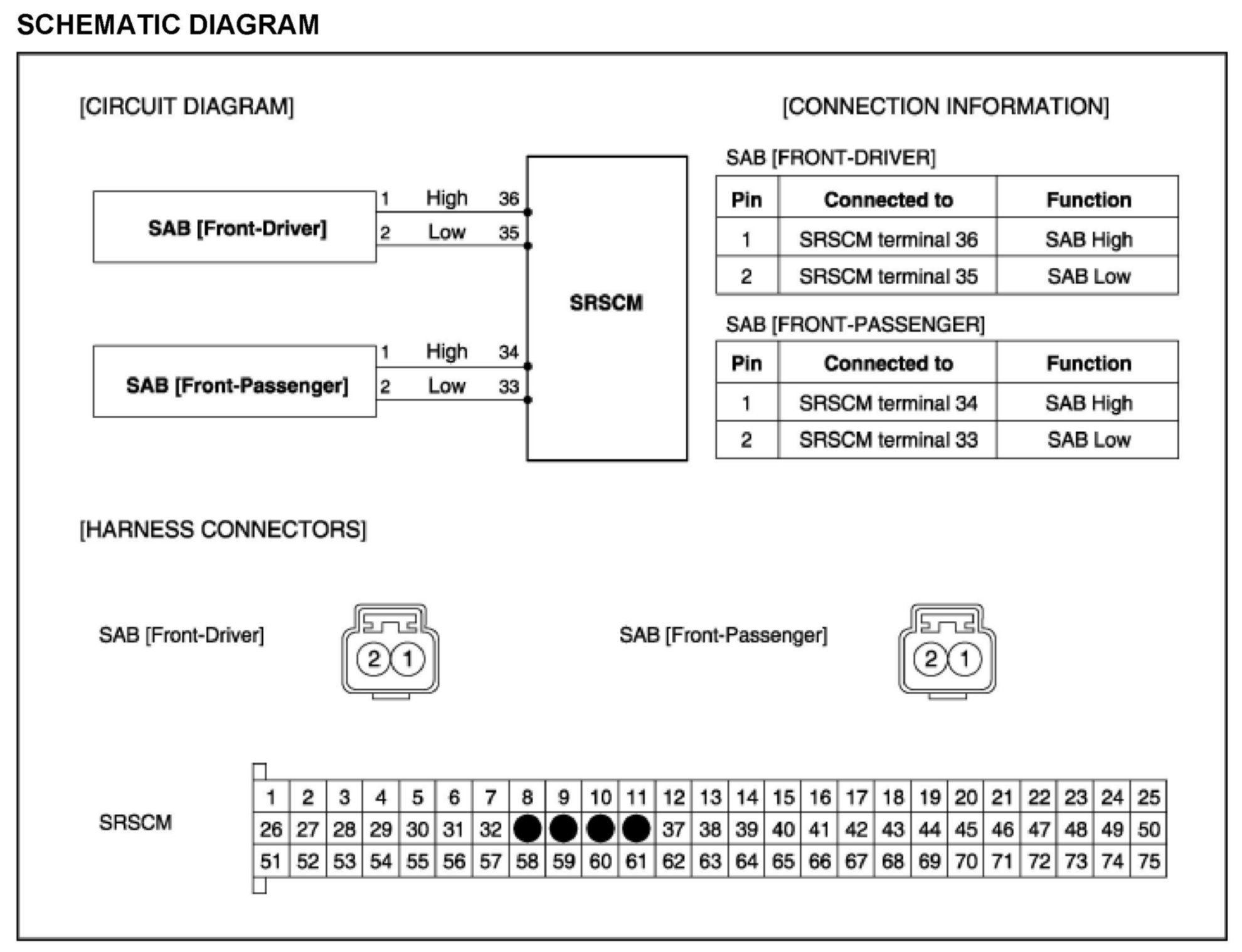

Schematic Diagram:

SCHEMATIC DIAGRAM

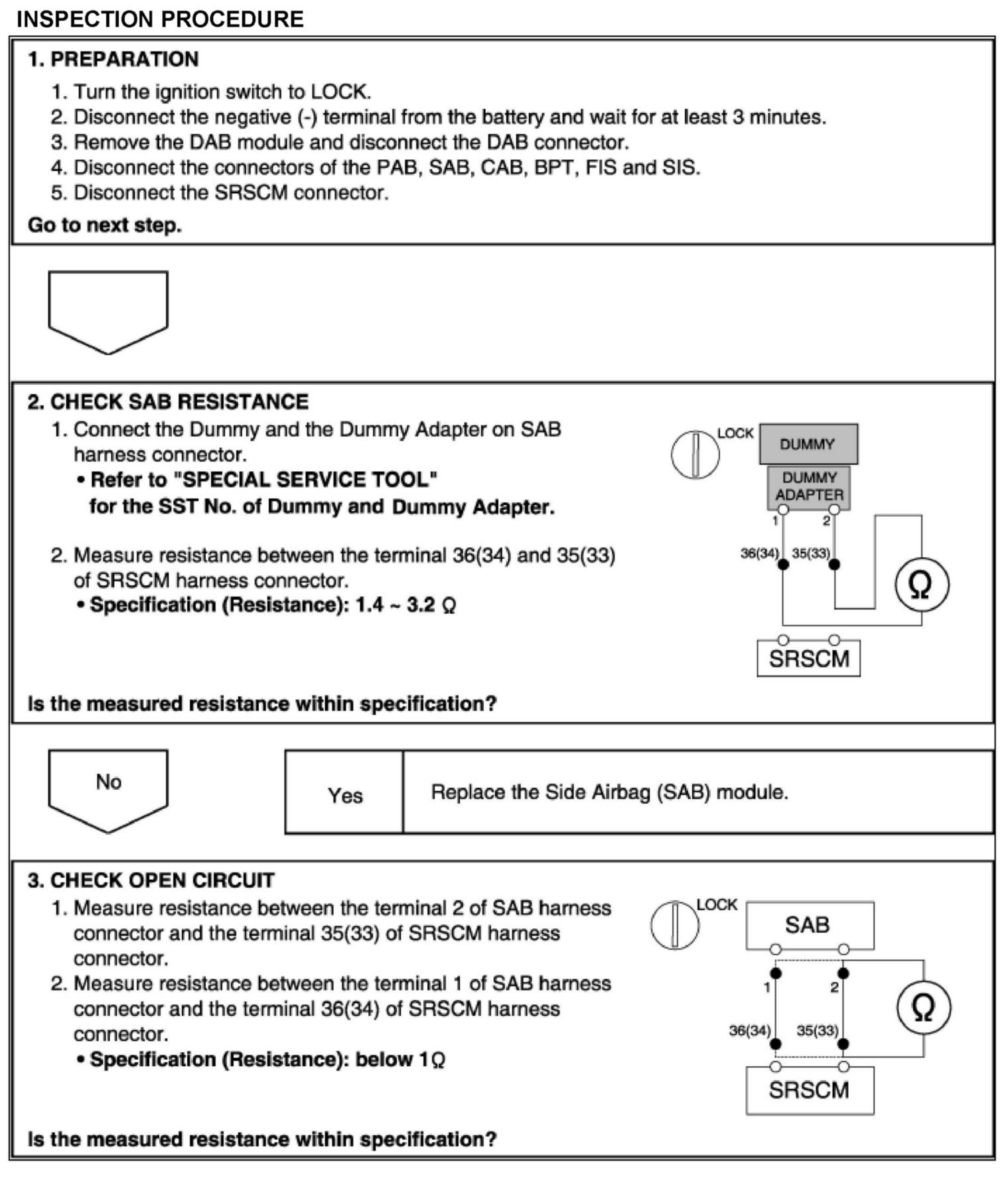

Inspection Procedure (Steps 1 - 3):

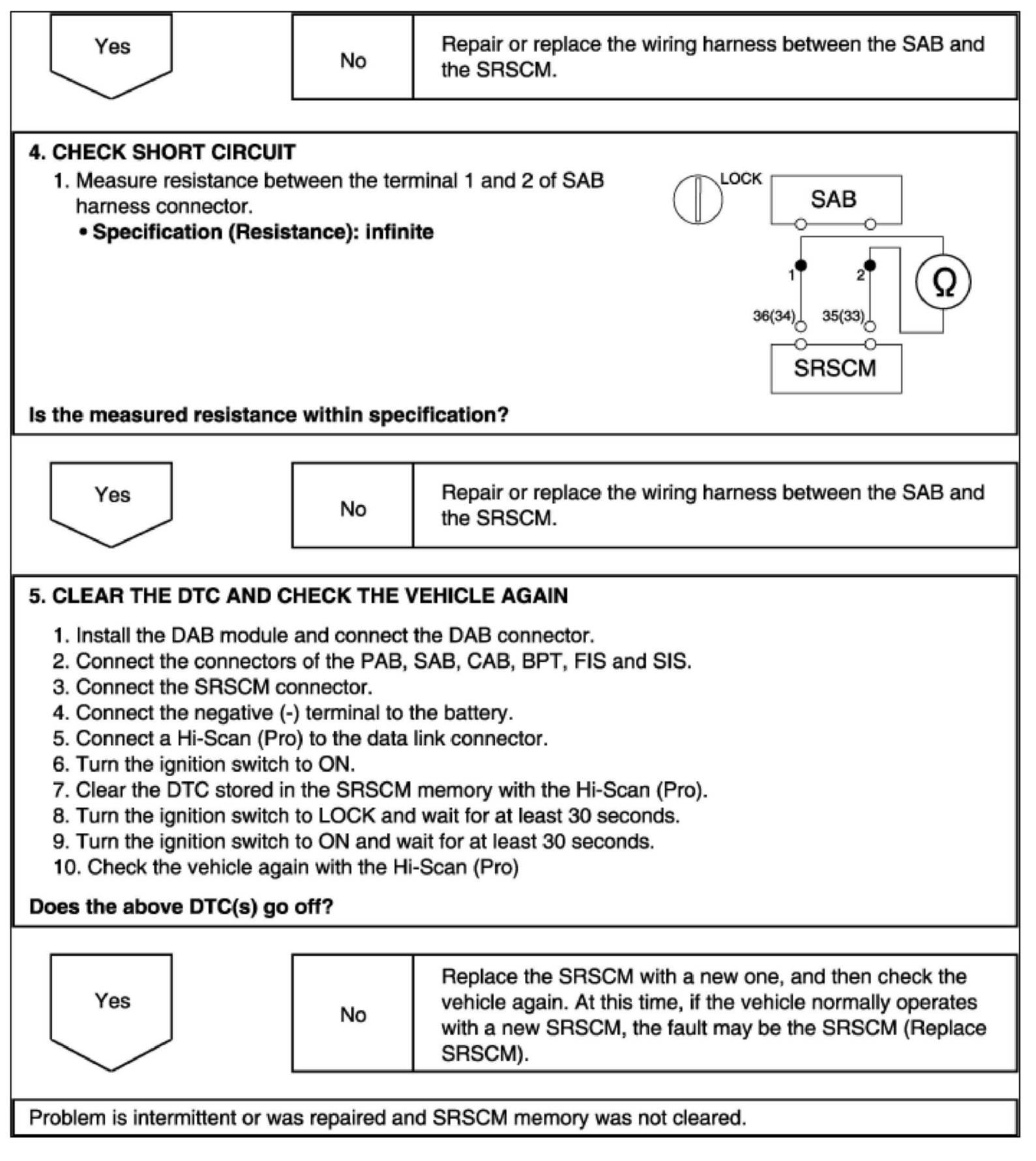

Inspection Procedure (Steps 3 (Continued) - 5):

INSPECTION PROCEDURE

CAUTION:
1.NEVER attempt to measure the circuit resistance of the airbag module (squib) even if you are using the specified tester, otherwise the module may deploy accidentally.
