Rear Door Window Glass: Adjustments

GLASS ADJUSTMENT

NOTE: Check the glass run channel for damage or deterioration, and replace them necessary.

1. Remove the following parts.
- Door trim.

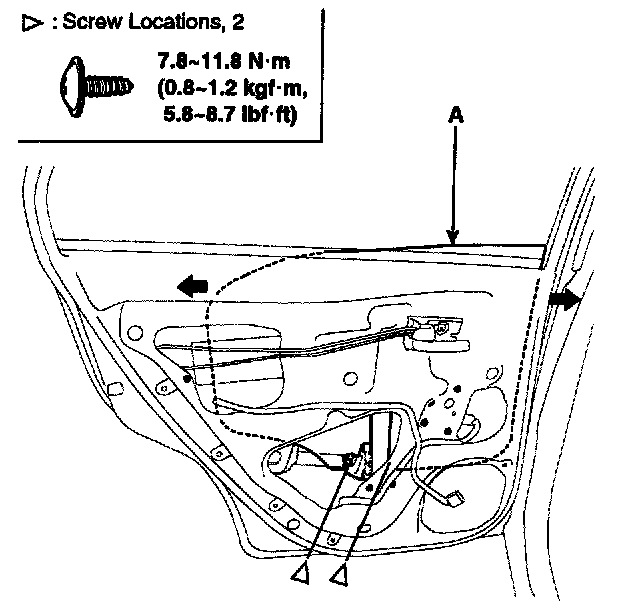

2. Carefully move the glass (A) until you can see glass mounting bolts, then loosen them.
3. Check that the glass moves smoothly.
