Front
Front
POWER WINDOW MOTOR
REPLACEMENT
1.
Remove the front door trim.
2.
Remove the door regulator.
3.

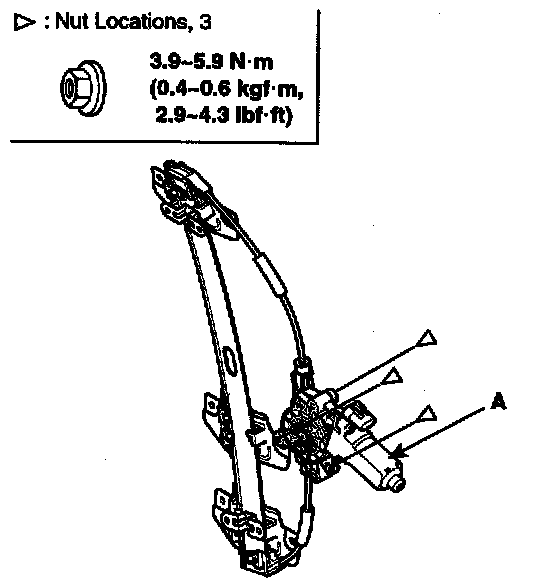

Remove the window motor (A).
4.
Installation is the reverse of removal.
NOTE:
Roll the glass up down to see if it move freely without binding.
