Seals and Gaskets: Service and Repair

DRIVE SHAFT OIL SEAL
REPLACE
1. Disconnect the drive shaft from the transaxle.

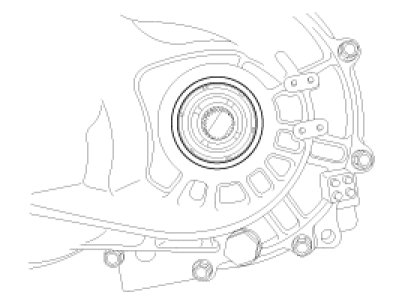

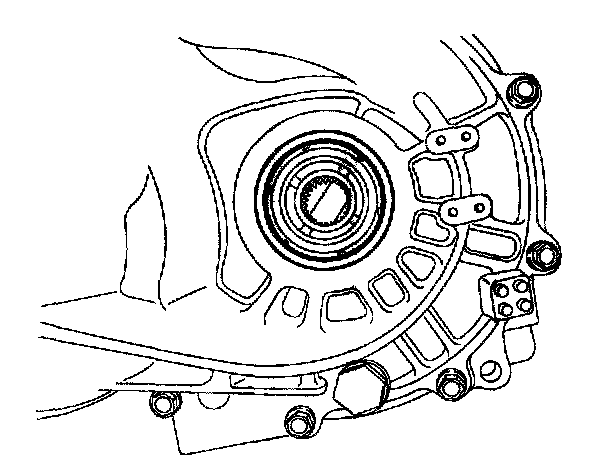

2. Using a flat-tip screwdriver, remove the oil seal.

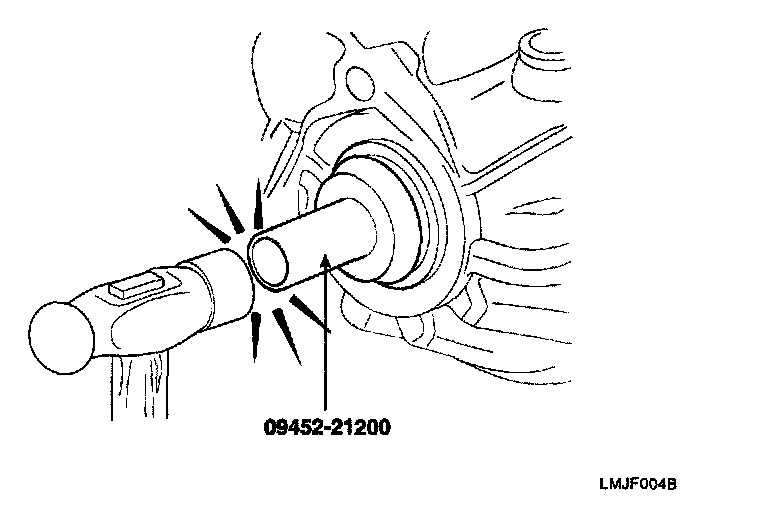

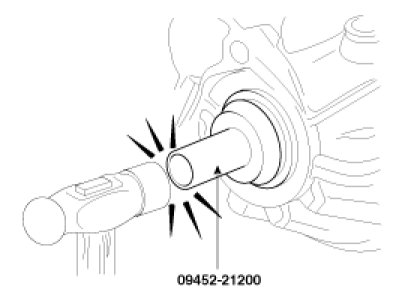

3. Using the special tool (09452-21200), tap the drive shaft oil seal into the transaxle.
