Clutch Pedal Assembly: Testing and Inspection
INSPECTION1. Check the pedal shaft and bushing for wear.
2. Check the dutch pedal for bending or torsion.
3. Check the return spring for- damage or deterioration.
4. Check the pedal pad for damage or wear.
IGNITION LOCK SWITCH INSPECTION

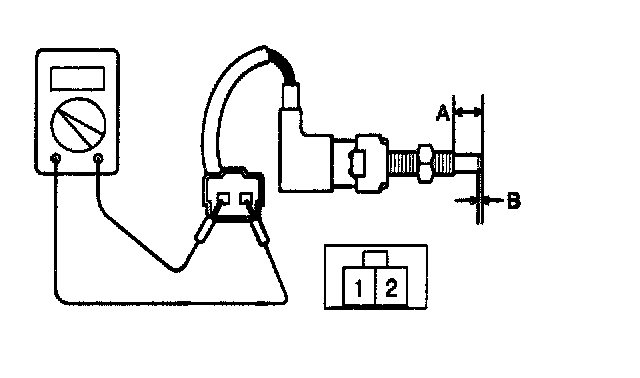

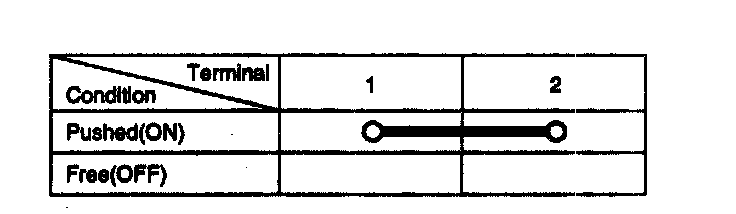

Remove the ignition lock switch and check for continuity between the terminals. If the continuity Is not as specified, replace the switch.
Standard value
Full stroke (A): 12.0 ± 0.3 mm (0.472 ± 0.012 inch)
ON-OFF point (B): 2.0 ± 0.3 mm (0.078 ± 0.012 inch)
