Rio L4-1.6L (JB)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Description and Operation
>>
Electronic Control System
Electronic Control System
ELECTRONIC CONTROL SYSTEM
ELECTRONIC CONTROL SYSTEM:
SENSOR AND ACTUATOR FUNCTION:

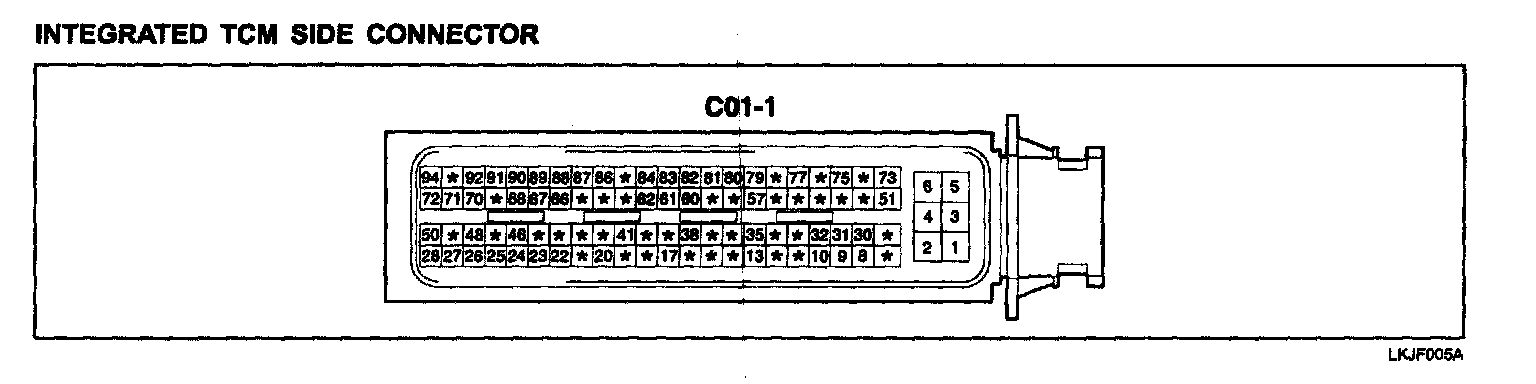

INTEGRATED TCM SIDE CONNECTOR:

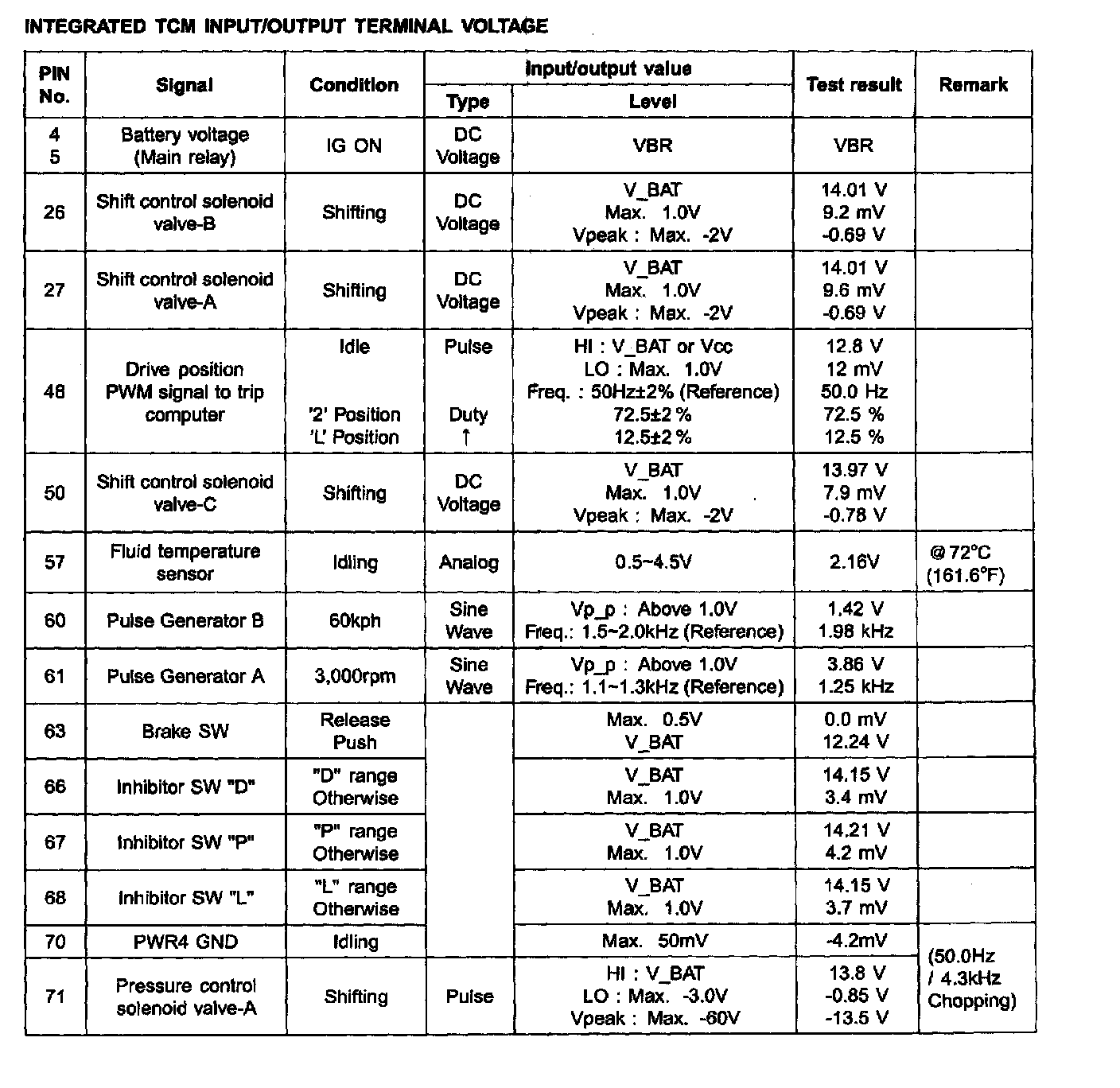

INTEGRATED TCM INPUT/OUTPUT TERMINAL VOLTAGE:

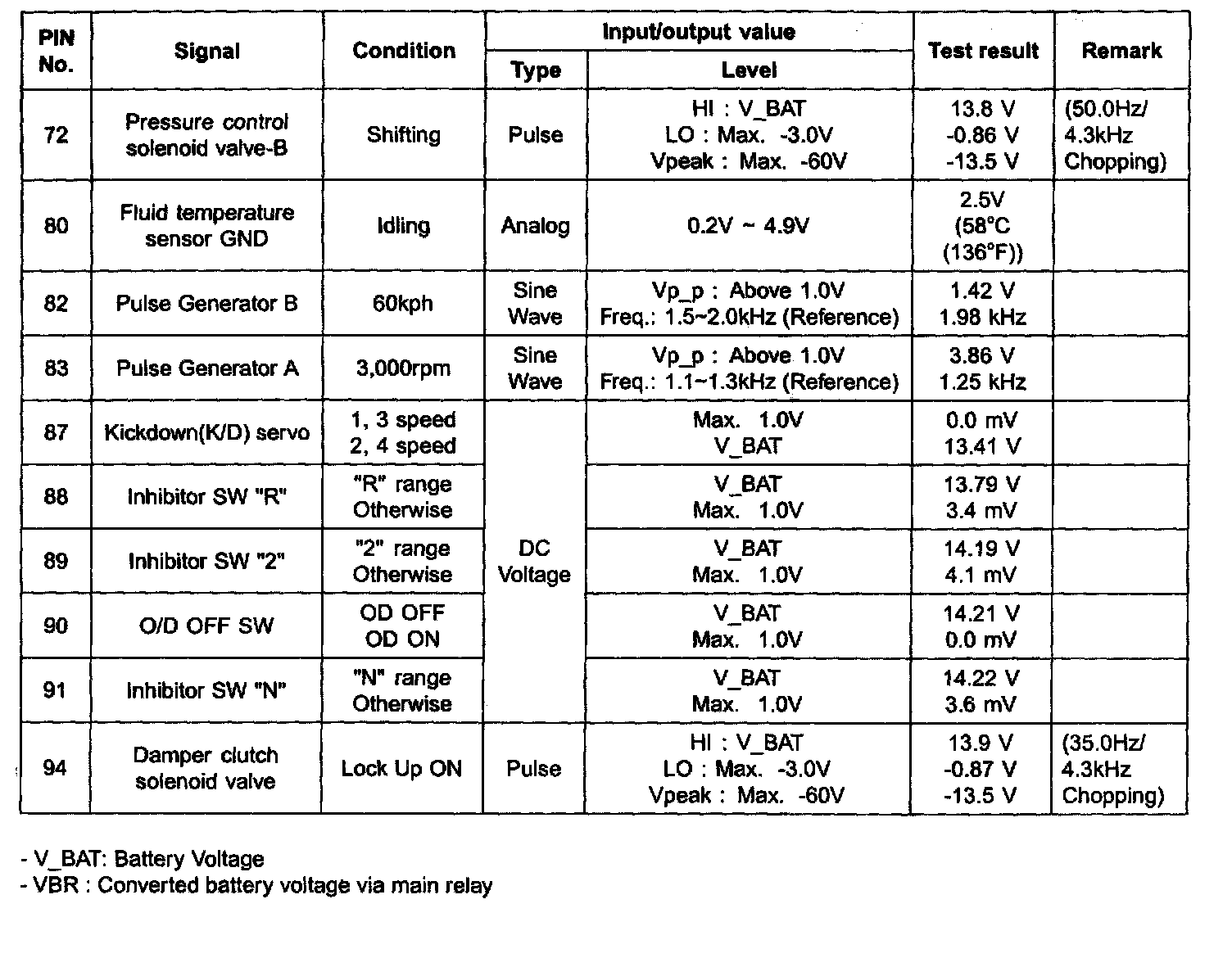

INTEGRATED TCM INPUT/OUTPUT TERMINAL VOLTAGE:
