Symptom Chart

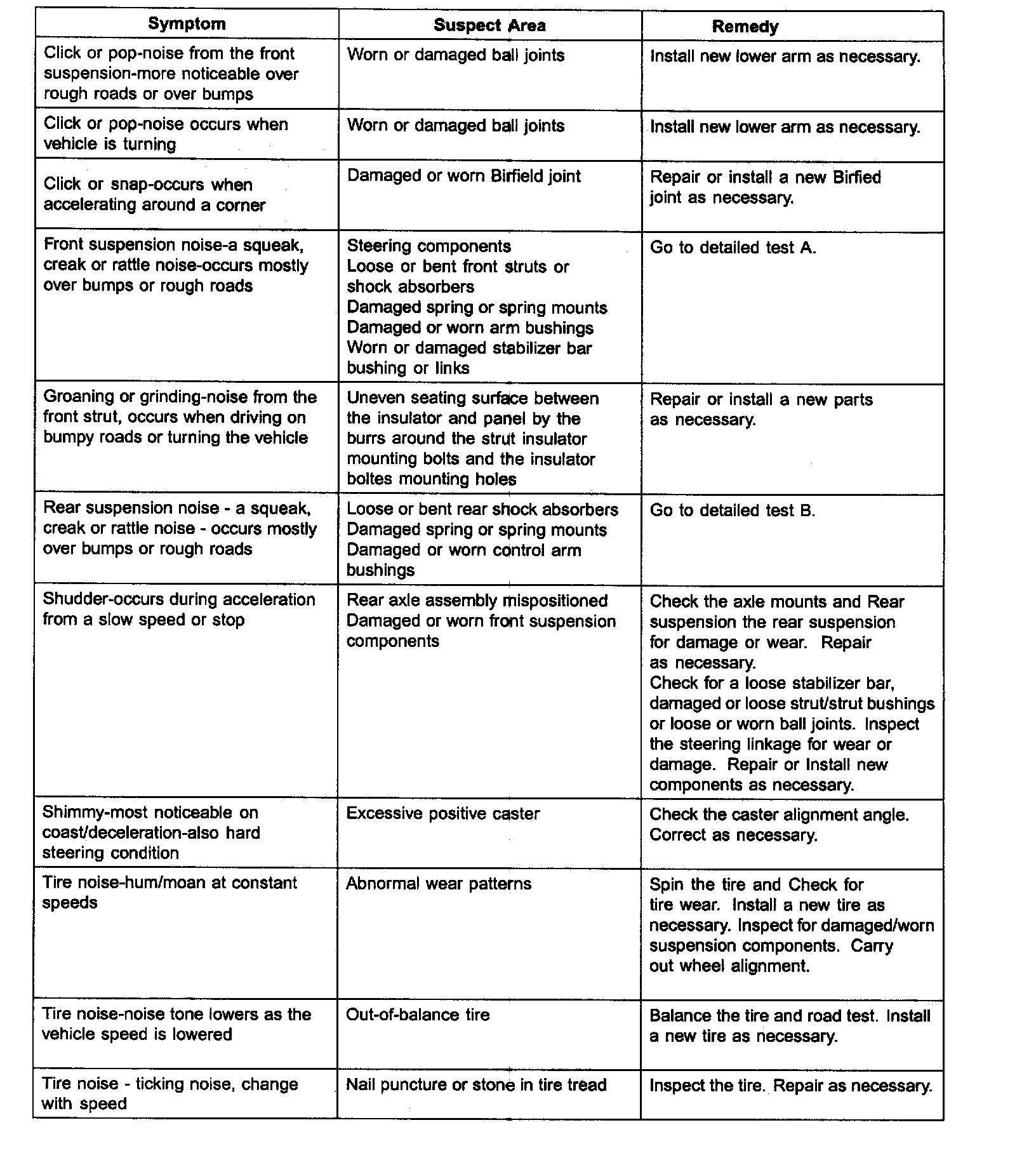

SYMPTOM CHART (Part 1):

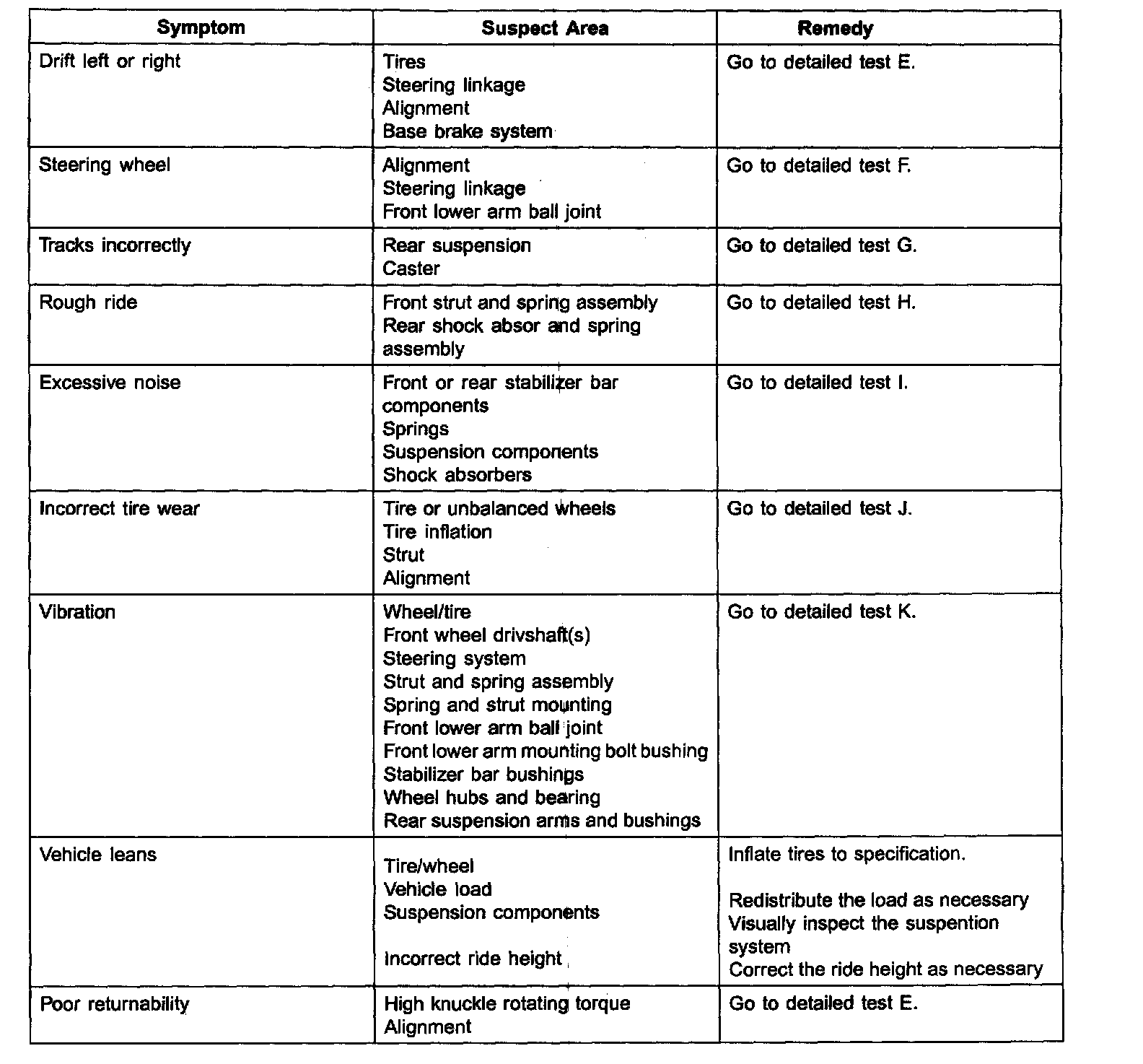

SYMPTOM CHART (Part 2):

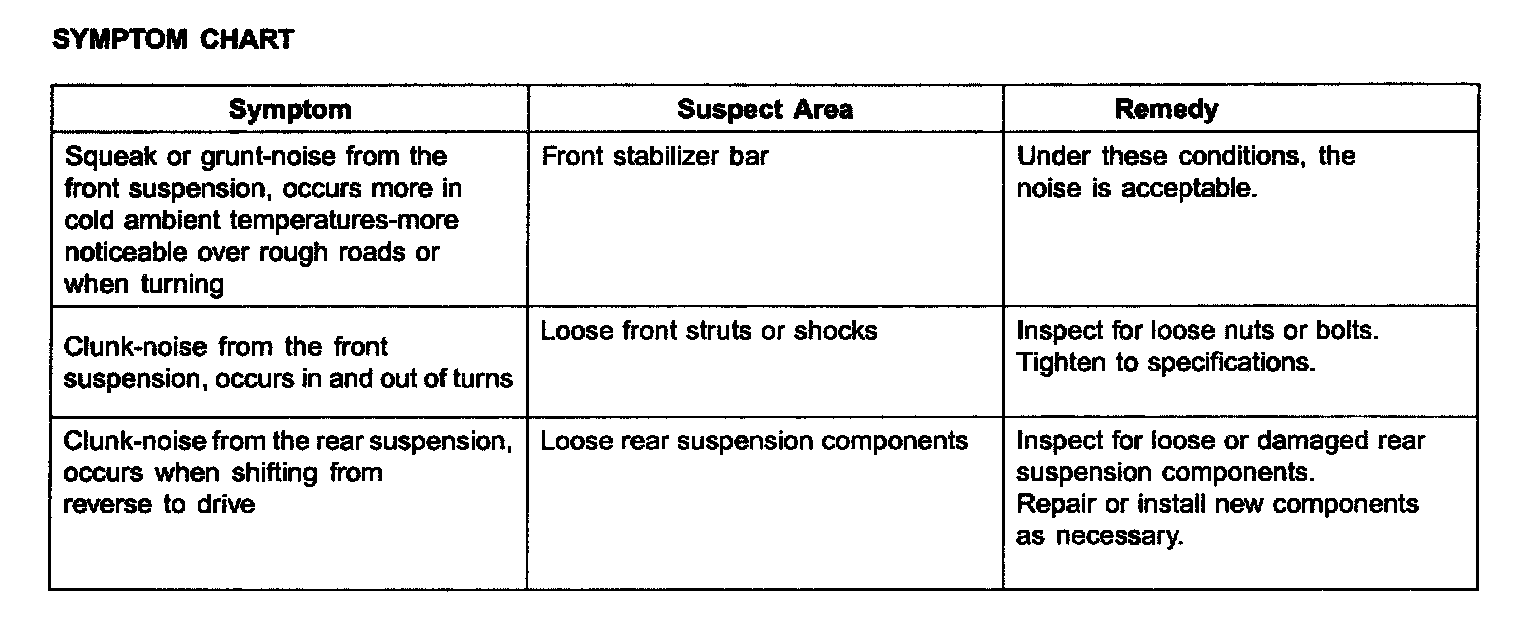

SYMPTOM CHART (Part 3):

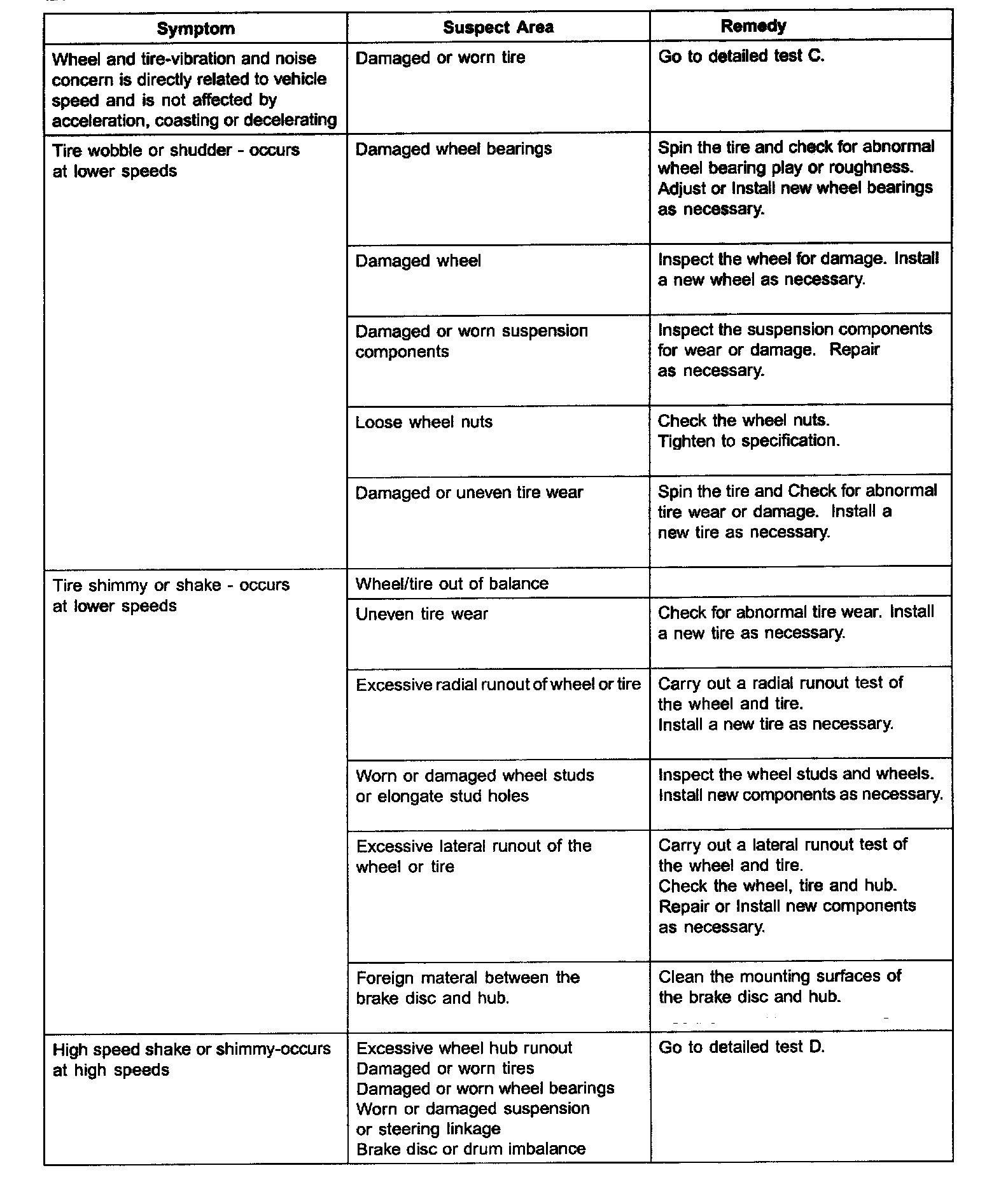

SYMPTOM CHART (Part 4):
