Combination Switch: Testing and Inspection

MULTI FUNCTION SWITCH INSPECTION

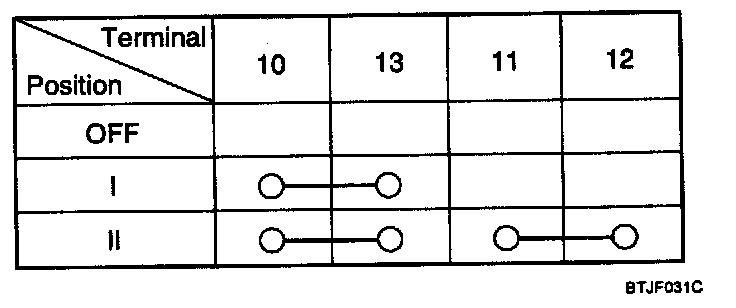

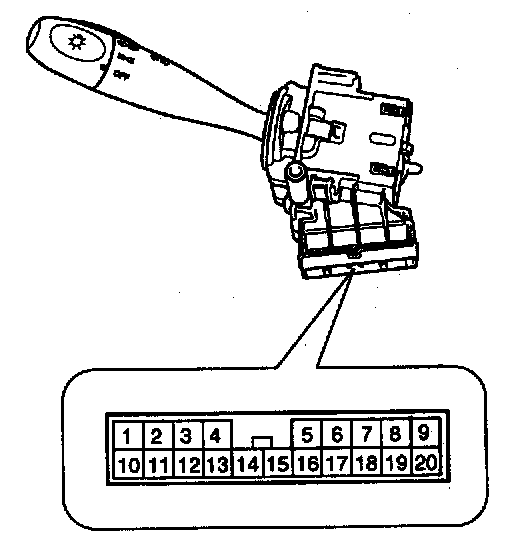

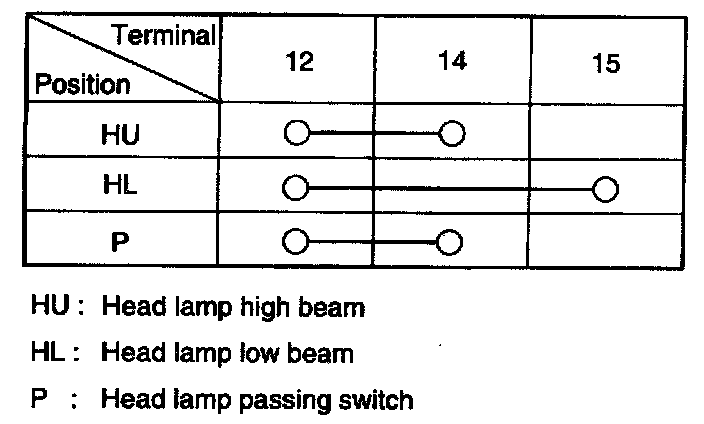

LIGHTING SWITCH INSPECTION










With the multi function switch in each position, make sure that continuity exists between the terminals given. If continuity is not as specified, replace the multi-function switch.

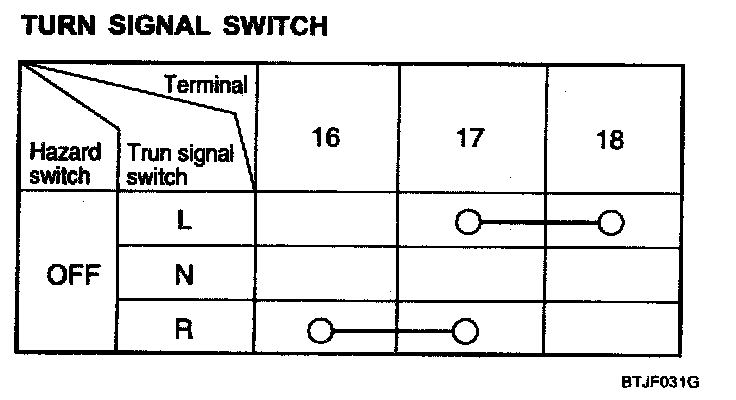

TURN SIGNAL SWITCH

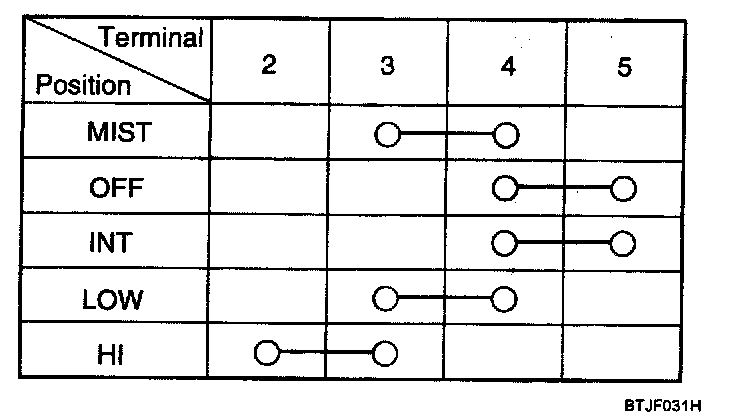

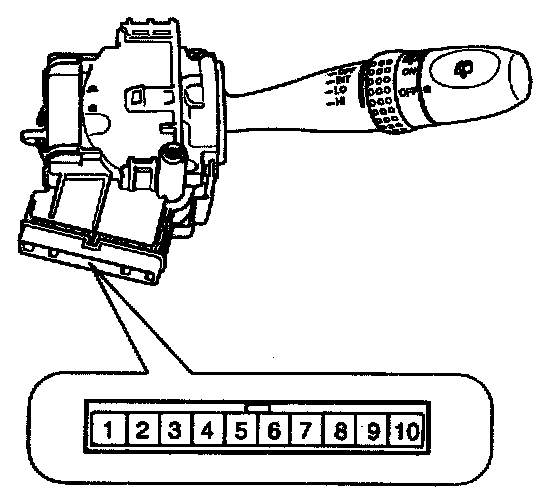

WIPER AND WASHER SWITCH INSPECTION










With the multi function switch in each position, make sure that continuity exists between the terminals given. If continuity is not as specified, replace the multi-function switch.

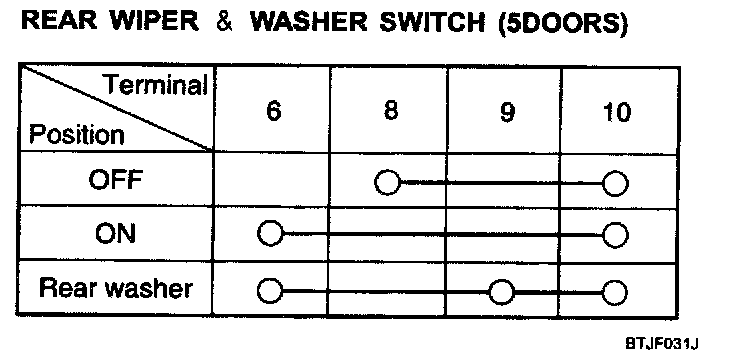

Rear Wiper And Washer Switch (5 Doors):

REAR WIPER & WASHER SWITCH (5 DOORS)
