Home >> Kia >> 2005 >> Rio L4-1.6L (JB) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Body and Frame >> Power Mirror Switch >> Locations

Power Mirror Switch: Locations

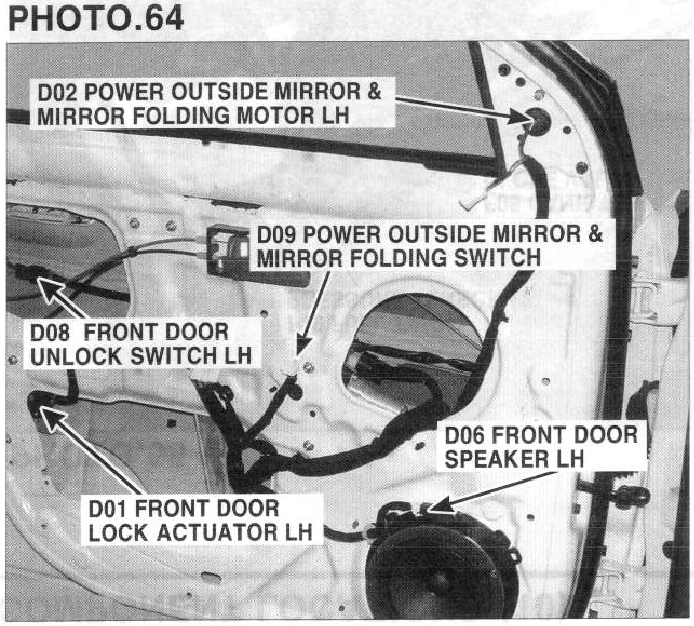

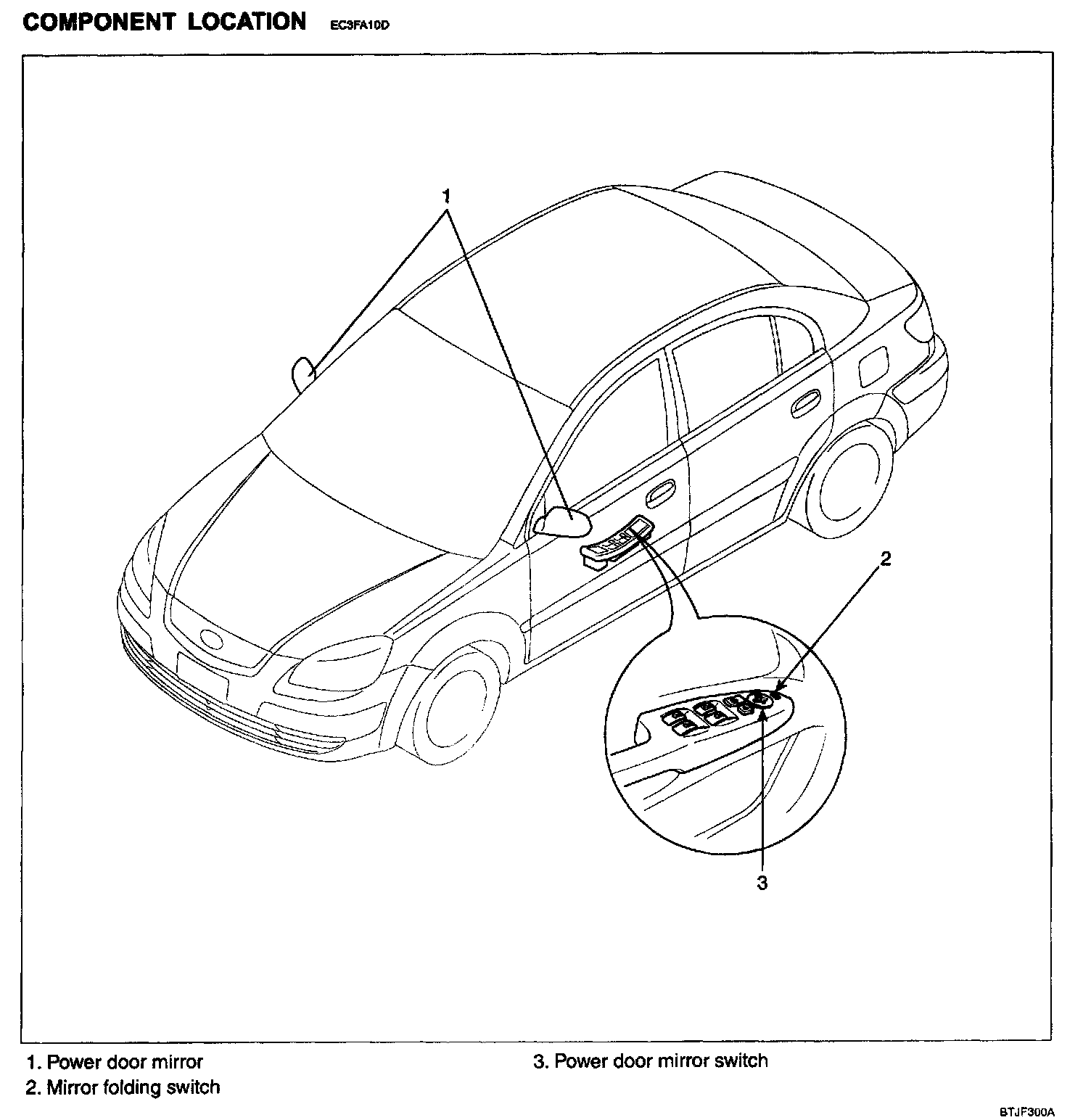

Power Door Mirrors Component Location:
