Seat Belt Height Adjuster: Service and Repair

HEIGHT ADJUSTER REPLACEMENT
1. Remove the following items first.
- Front assembly.
- Front and rear door scuff trim.
- Front seat belt upper and lower anchor.
- Center pillar lower and upper trim.

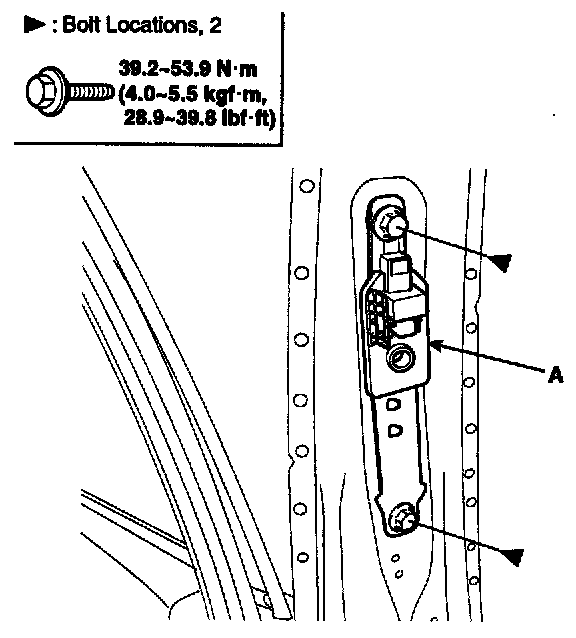

2. Loosen the mounting bolt, then remove the height adjuster (A).
3. Installation is the reverse of removal.
