Front
Front
FRONT
SEAT BELT BUCKLE
REPLACEMENT
1.
Remove the following items first.
-
Front seat assembly.
2.

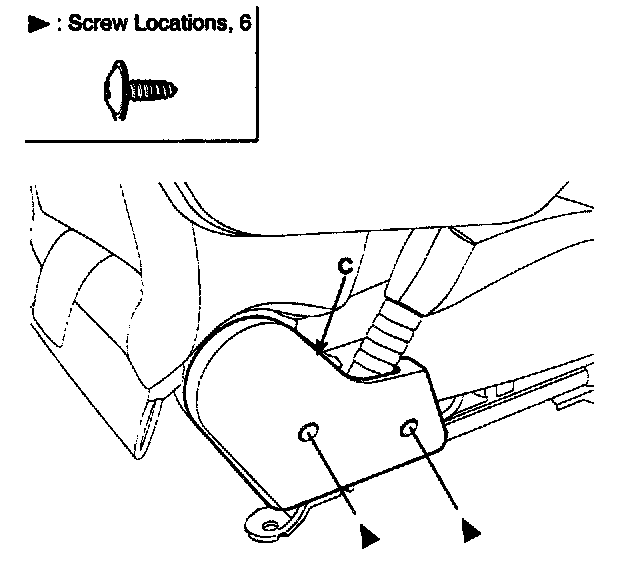

Remove the recliner cover (C).
3.

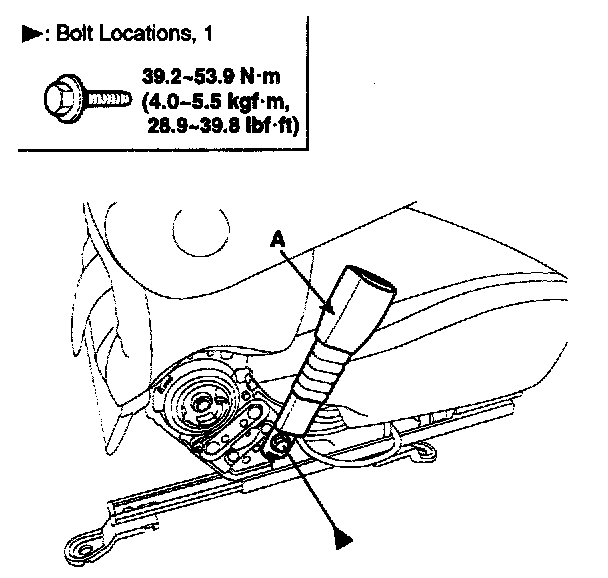

Remove the
seat belt buckle
(A).
4.
Installation is the reverse of removal.
