Ignition Coil: Service and Repair

REPLACEMENT

IGNITION COIL
1. Remove the engine cover.

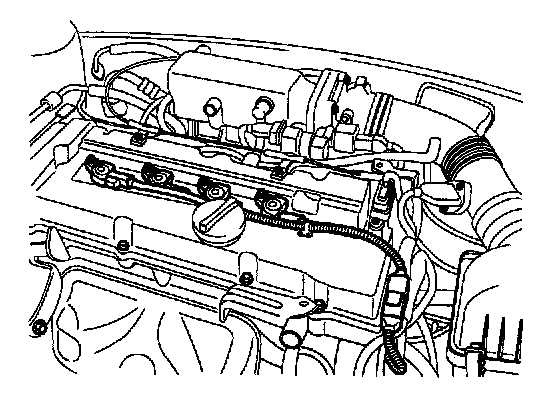

2. Remove the ignition coil with bolt.

Tightening torque : 7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb-ft)

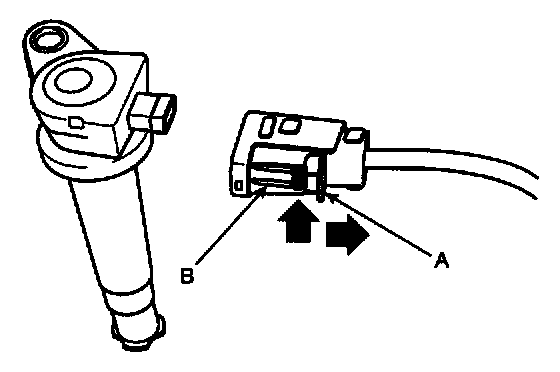

NOTE: When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).

3. Installation is the reverse of removal.
