Home >> Kia >> 2005 >> Rio L4-1.6L (JB) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Sensors and Switches - Computers and Control Systems >> Air Temperature Sensor ( Ambient / Intake ) >> Specifications

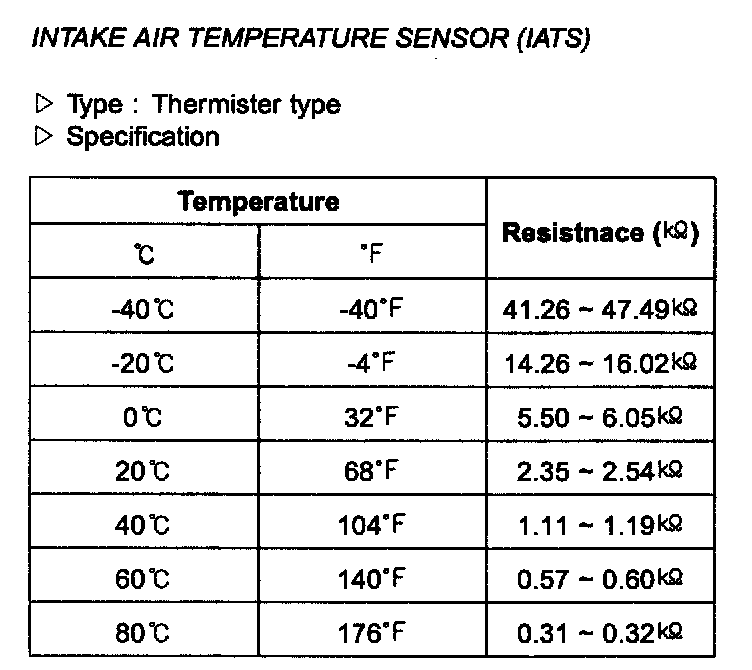

Air Temperature Sensor ( Ambient / Intake ): Specifications
