Turn Signal Lamp: Service and Repair

TURN SIGNAL LAMP

REPLACEMENT
1. Disconnect the negative (-) battery terminal.

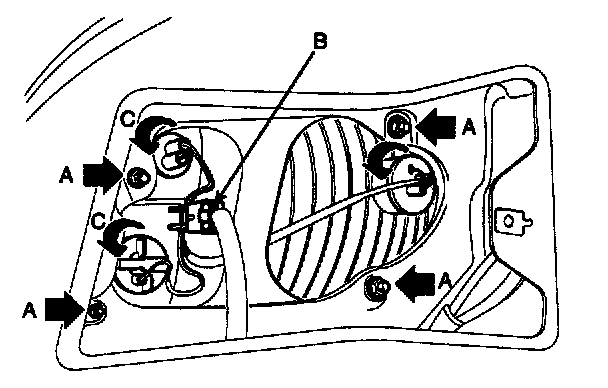

2. Loose the nuts holding the rear combination lamp then disconnect the 6P connector then remove the rear combination lamp.
3. Installation is the reverse of removal.
