License Plate Lamp: Service and Repair

LICENSE LAMPS

REPLACEMENT
1. Disconnect the negative (-) battery terminal.

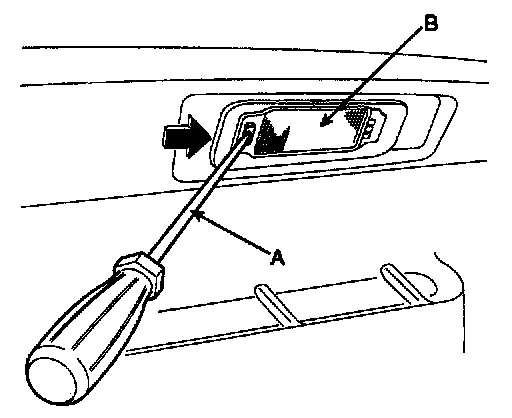

2. Detach the license lamp lens (B) from the trunk lid panel with a flat-tip screwdriver (A).
3. Replace the bulb.
4. Installation is the reverse of removal.
