Home >> Kia >> 2005 >> Rio L4-1.6L (JB) >> Repair and Diagnosis >> Lighting and Horns >> Dome Lamp >> Testing and Inspection

Dome Lamp: Testing and Inspection

ROOM LAMP

INSPECTION

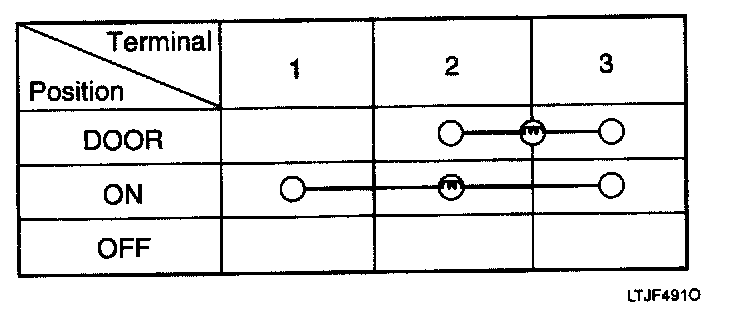

Remove the room lamp assembly then check for continuity between terminals.
