Speedometer Head: Testing and Inspection

SPEEDOMETER










INSPECTION
1. Adjust the pressure of the tires to the specified level.

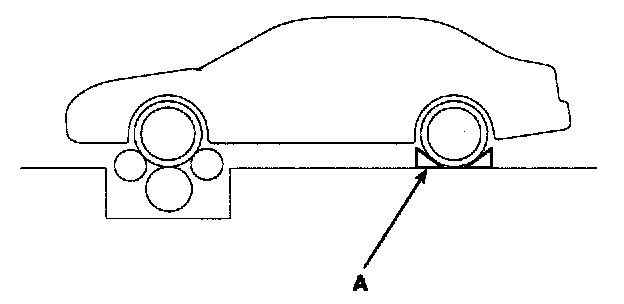

2. Drive the vehicle onto a speedometer tester. Use wheel chocks as appropriate.

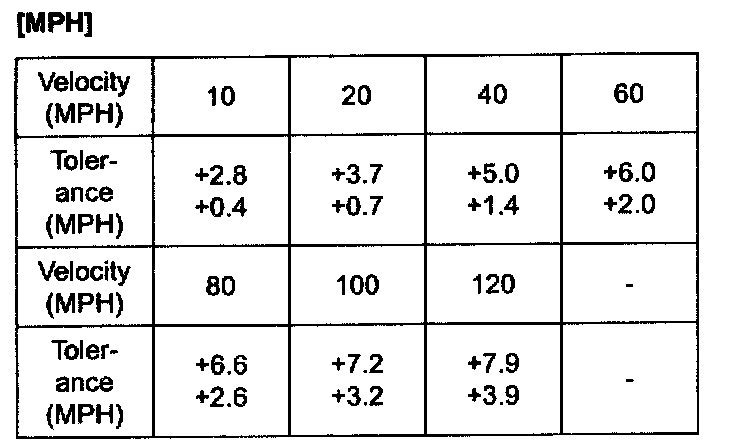

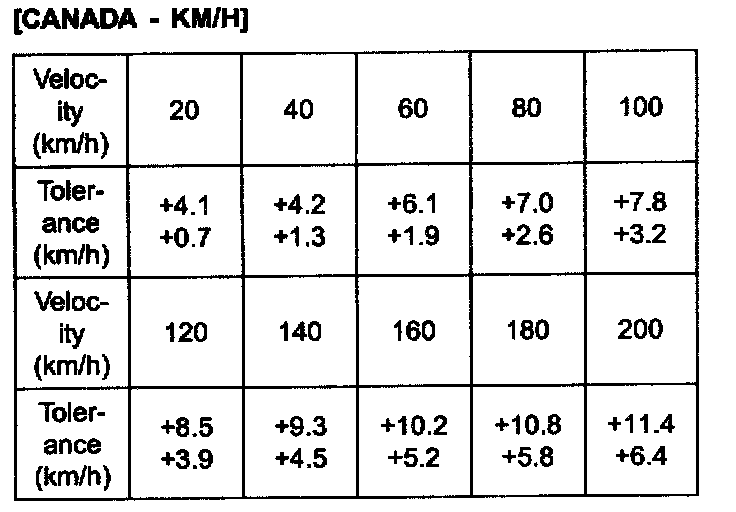

3. Check if the speedometer indicator range is within the standard values.

CAUTION: Do not operate the clutch suddenly or increase/ decrease speed rapidly while testing.

NOTE: Tire wear and tire over or under inflation will increase the indication error.
