Blower Motor Resistor: Service and Repair
BLOWER RESISTORREPLACEMENT
1. Disconnect the negative (-) battery terminal.

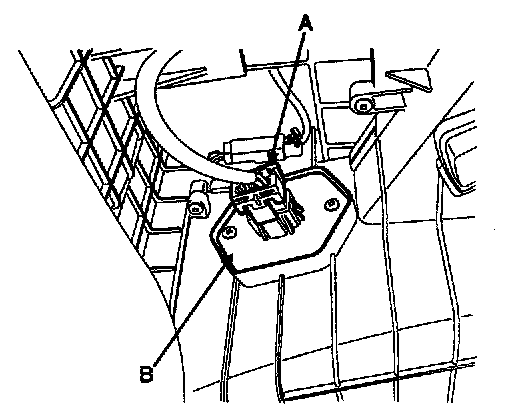

2. Disconnect the blower resistor connector (A) at the connecting part blower unit.
3. Remove the blower resistor after loosening the mounting screws
4. Installation is the reverse order of removal.
