Mode Control Actuator

MODE CONTROL ACTUATOR

REPLACEMENT
1. Disconnect the negative (-) battery terminal.
2. Remove the driver's crash pad lower panel.

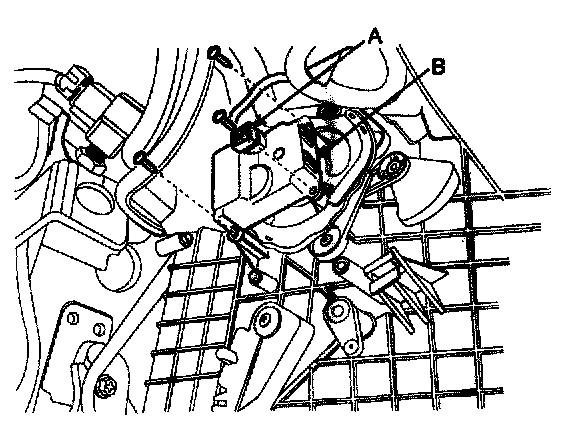

3. Disconnect the mode control actuator connector (A) after removing the air duct.




4. Loosen the mounting screws and then remove the mode control actuator (B).
5. Install in reverse order of removal.
