Intake Actuator

INTAKE ACTUATOR

REPLACEMENT
1. Disconnect the negative (-) battery terminal.
2. Remove the glove box.
3. Disconnect the intake actuator connector.

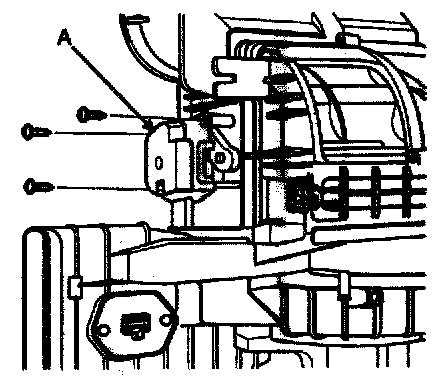

4. Loosen the mounting saw and then remove the intake actuator (A) from the blower unit.
5. Install in reverse order of removal.
