MFI Control System (A/T) (7)

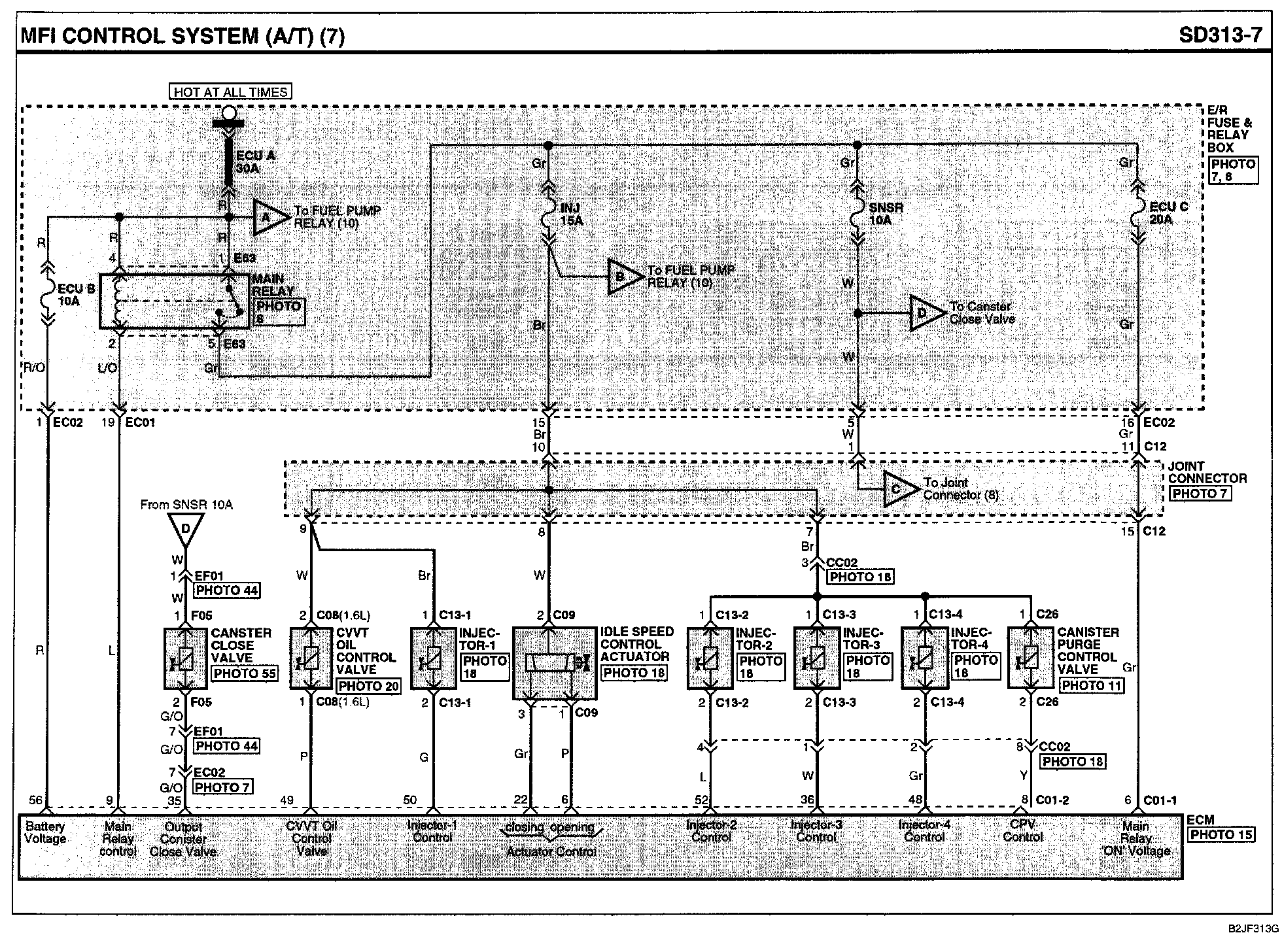

MFI Control System (A/T) (7):

MFI Control System (A/T) Connector Pin Outs:

Next Diagram MFI Control System (A/T) (8)

Locations: Location photographs (references to PHOTOS) referred to within these diagrams can be found via the photo number at the vehicle level under Locations by Photo Number. Component Locations
