Home >> Kia >> 2005 >> Rio L4-1.6L (JB) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Radio/Stereo

Radio/Stereo

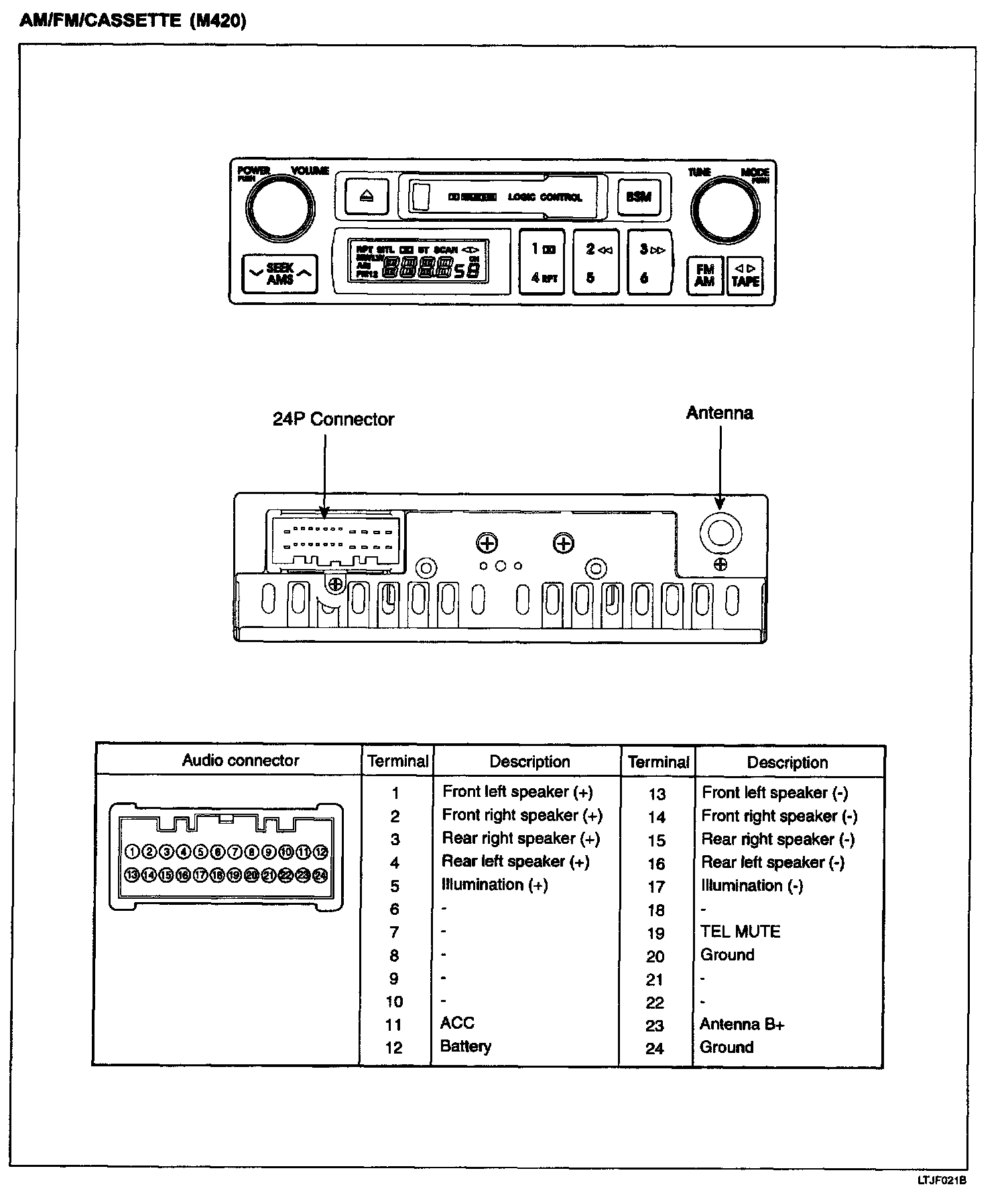

AM/FM/Cassetee (M420):



AM/FM/CD (M445):

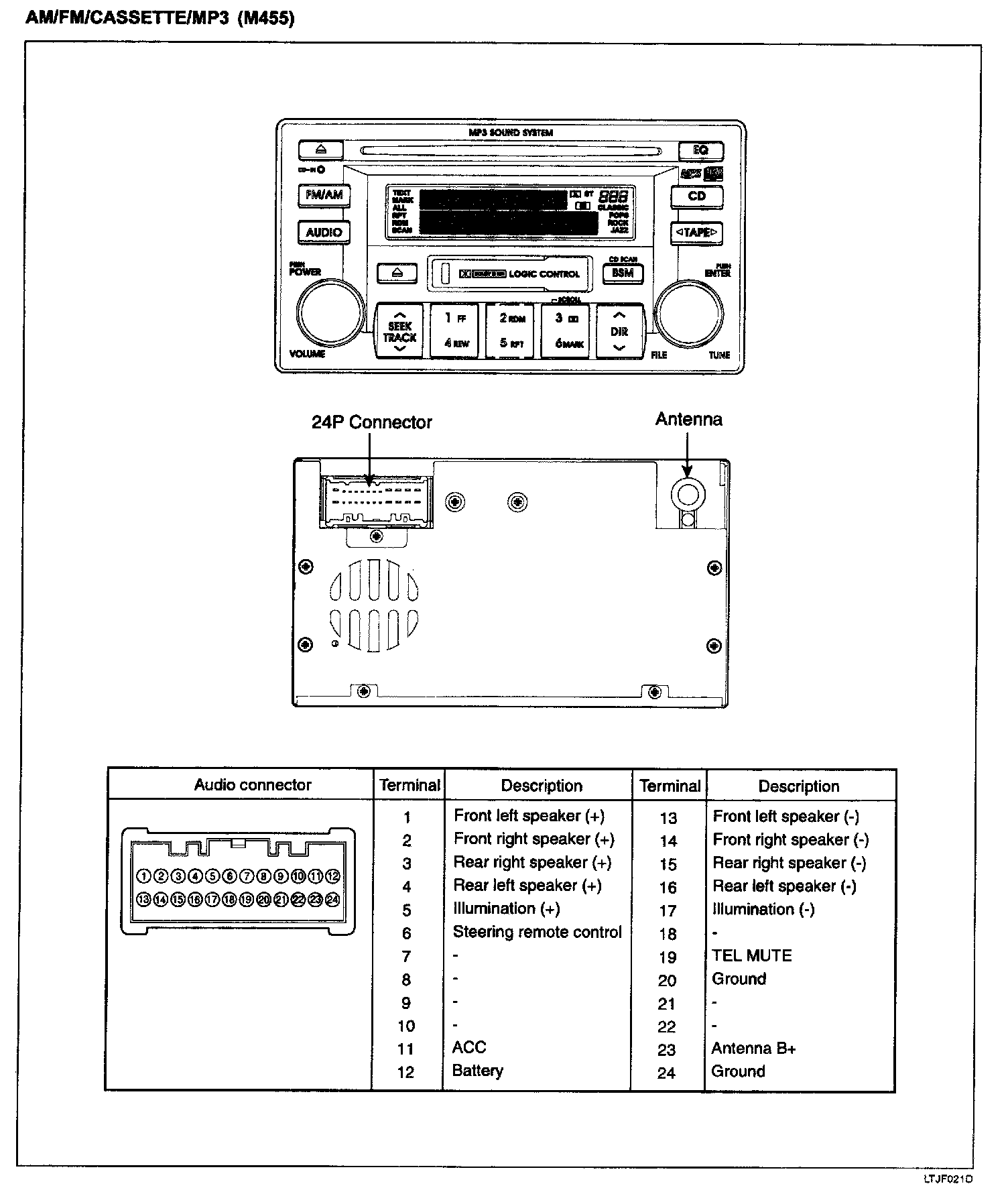

AM/FM/Cassette/MP3 (M455):
