Brake Switch Clearance

BRAKE SWITCH CLEARANCE

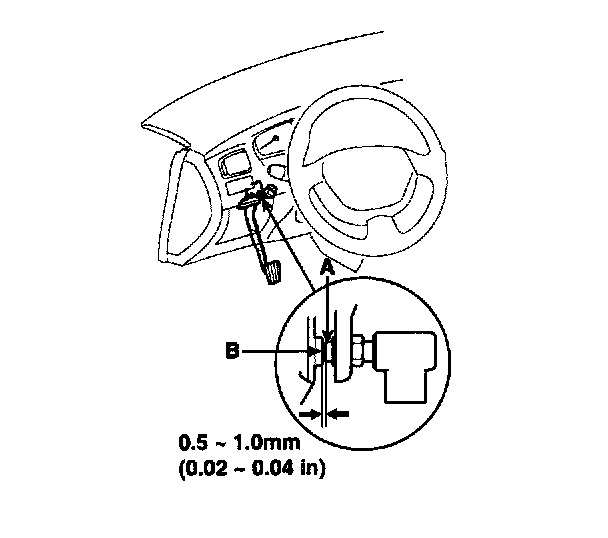

Screw in the brake switch until its plunger is fully depressed (threaded end (A) touching the pad (B) on the pedal arm) then brake off the switch 3/4 turn to make 0.5 - 1.0 mm (0.02 - 0.04 inch) of clearance between the brake switch connector. Make sure that the brake lights go off when the pedal is released.
