Inspection of Front Disc Brake Pad

INSPECTION OF FRONT DISC BRAKE PAD

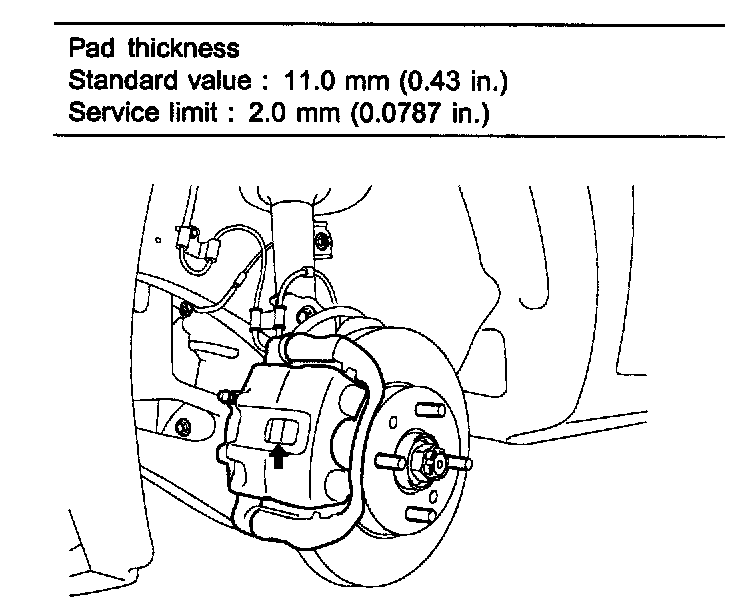

1. Check the brake pad thickness through the caliper body inspection hole.





CAUTION:
- If the pad lining thickness is out of specification, left and right pads must be replaced as a complete set.
- When the thickness difference between the left pad and right pad is large, check the sliding condition of the piston and the guide rod.
